Ek6 (JN15A) -12/31.5 Indoor Hv a. C Earthing Switch

Name: Ek6 (JN15A) -12/31.5 Indoor Hv a. C Earthing Switch
Brand: all-electronics-online.com
SKU: 835862275
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 100-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EK6(JN15A)-12/31.5
Application:	High-voltage
Brand:	Joyelectric

Product Description

Ambient Condition:
1. The height above sea level shall be no more than 1000 meter;
2. Ambient air temperature: +40⁰C~ -25⁰C
3.Seismic intensity: no more than 8 magnitude
4 The average relative humidity of a day should be no more than 95%, that of a month should be no more than 90%
5.Filth degree: II
Main Technical Parameter

Item		Unit	Data
Rated voltage		kV	12
Rated short time withstand current		kA	31.5
Rated duration of short circuit		S	4
Rated short circuit making current		kA	80
Rated peak withstand current		kA	80
Rated insulation level	Power frequency withstand voltage(1min)	kV	Pole to ground	42
	Lightning impulse withstand voltage		Between phases	75
Mechanical Life		times	2000

Outline drawing and installation dimension of EK6(JN15A)-12/31.5

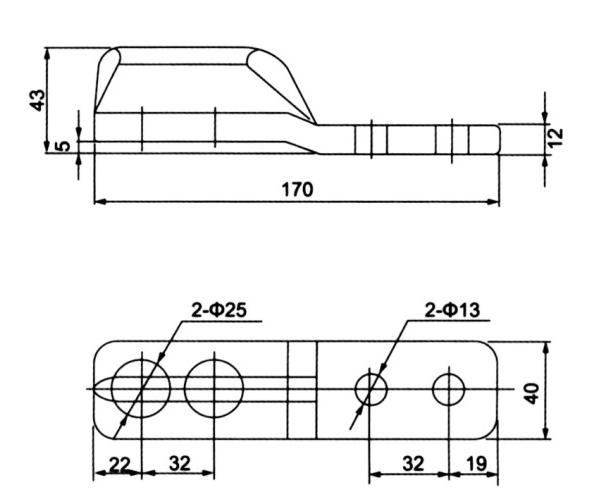

Outline dimension of fixed contact

Mating Table

Product Model	A	B	C	D
EK6(JN15)-12/31.5-150	150	424	535	396
EK6(JN15)-12/31.5-165	165	454	565	426
EK6(JN15)-12/31.5-190	190	504	615	476
EK6(JN15)-12/31.5-200	200	524	635	496
EK6(JN15)-12/31.5-210	210	544	655	516
EK6(JN15)-12/31.5-230	230	584	695	556
EK6(JN15)-12/31.5-250	250	624	735	596
EK6(JN15)-12/31.5-275	275	674	785	646
