Ekm1-of Auxiliary Contact for Ekm1

Prod Model:	EKM1-OF/EKM1-FB
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Certification:	CCC
Structure:	RCCB

Product Description

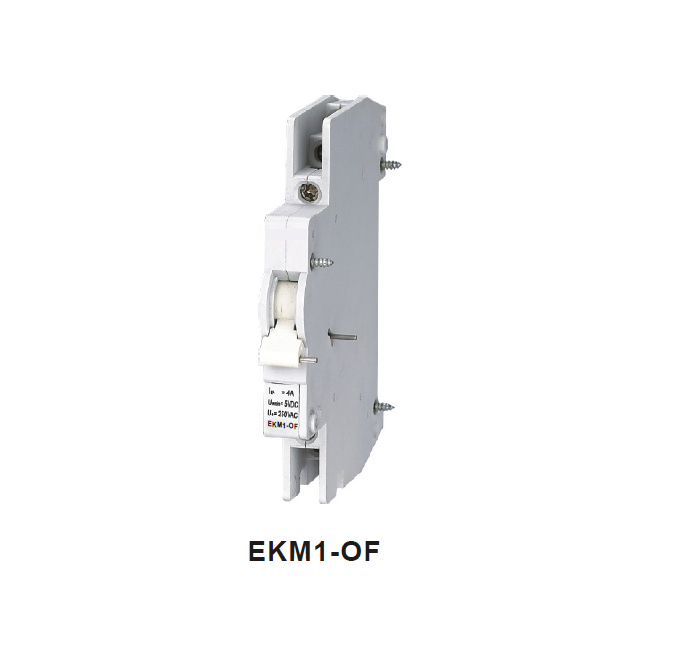

EKM1-OF Auxiliary Contact for EKM1, EKL3
EKM1-FB Alarm Auxiliary Contact for EKM1, EKL3
Technical Data
Electrical Features
Rated value: A C415 /400V 50/60Hz 3A
A C240 /400V 50/60Hz 3A
DC130V 1A
DC48V 2A
DC24V 6A
Configurations: EKM1-OF 1N/O+1N/C
EKM1-FB 1N/O+1N/C
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000V
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Electrical life: 6, 000
Mechanical life: 10, 000
Protection degree: I P20
Ambient temperature (with daily average 35 ): -5...+40
Storage temperation: -25...+70
Installation
Terminal connection type: Cable
Terminal size top/bottom for cable: 2.5mm2 18-13AWG
Tightening torque 0.8 N*m 7In-Ibs
