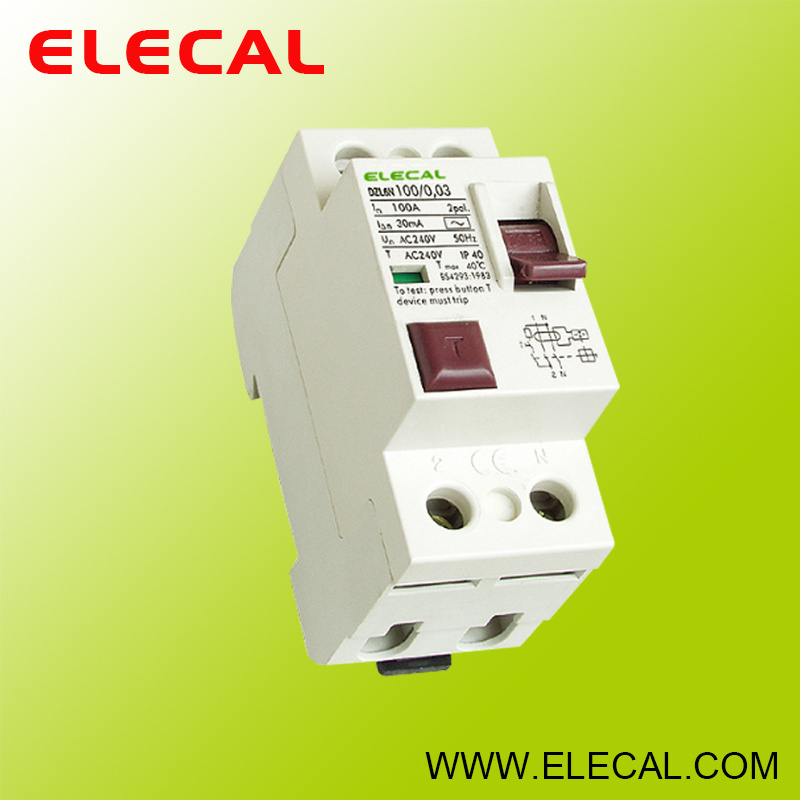

ELCB Dzl6n Residual Current Circuit Breaker

Prod Model:	DZL6N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Structure:	Moulded Case Circuit Breaker

Product Description

1.Application

DZL6N residual current circuit breaker is in conformity with the standards of IEC61008. It cancut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. It can beused in circuits up to single phase 240V,threephase 415V, 50 or 60Hz.

2.Main Technical Parameter

Type	DZL6N
Number of poles	2P, 4P
Rated current In(A)	10, 16, 20, 25,32, 40, 50, 63
Rated residual operating current In(mA)	30,100,300
Rated residual non-operating current Ino(mA)	0.5In
Voltage Un(V)	240(220)/415(380)
Residual current off-time	<0.1s
Ultimate short circuit current Inc (A)	3000A
