Electric Asynchronous AC Induction Motor (802-2-1.1kw)
| Price: |
US $ 50-60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
1HMA802-2-1.1kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size Range: |
80 |
| Rated Frequency: |
50Hz |
| Rated Voltage Range: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Rated Power Range: |
1.1kw |
| Protection Class: |
IP44, IP54, IP55 |
| Insulation Class: |
B/F/H |
| Installation Method: |
B3, B5, B14, B35multi and Pad Mounting |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
Not Exceed 1000m |
| Origial Place: |
Zhejiang, China |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
Hongma |
| Certification: |
CE |
Product Description
Product Decription

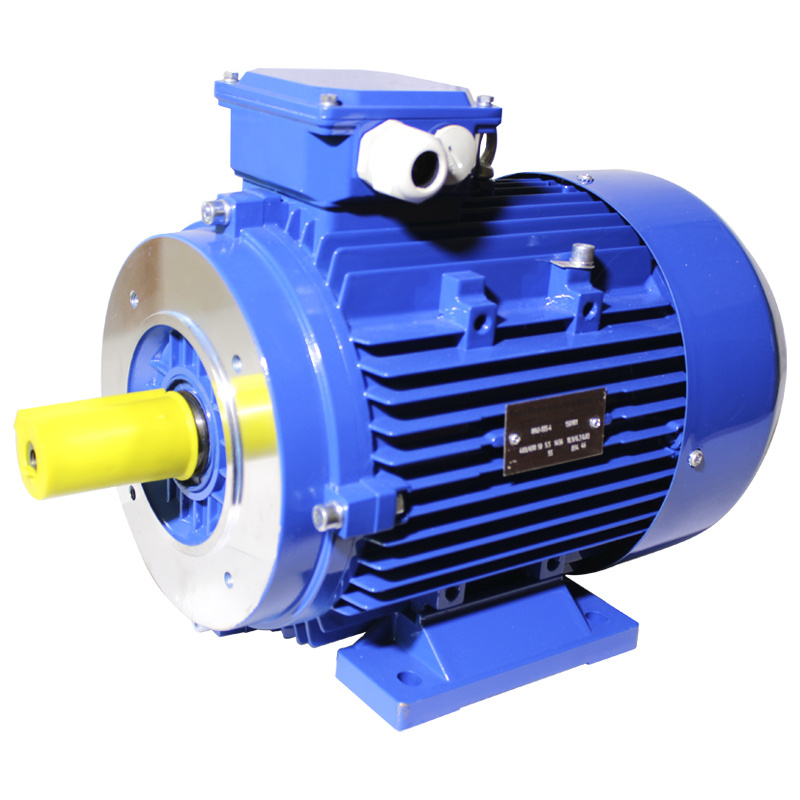

HMA-IE1(1HMA) Aluminium Series Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames. HMA-IE1 Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 56 to 160. Technical Data
Housing Material |
Aliminium |
Output Range |
1.1kw |
Pole |
2 |
| Terminal Box |
Top Mounted |
| Protection Class |
IP44,IP54,IP55 |
Insulation Class |
B,F,H |
Installation Method |
B5,B5,B14,B35multi and Pad Mounting |
Cooling Method |
IC411 |
Efficiency Standard |
IEC60034-2-1 |
| Duty |
S1 |
| Model | TYPE | Output_kW | η(%) | Cosφ | r/in | Current_380V | Current_400V | Current_415V | Ts/Tn | Tax/Tn | Is/In | Weight(AL) | dB(A) |
| 1HMA-IE1 | 56M1-2 | 0.09 | 62 | 0.7 | 2750 | 0.3 | 0.3 | 0.3 | 2.1 | 2.2 | 5.2 | 3.6 | 58 |
| 1HMA-IE1 | 56M2-2 | 0.12 | 67 | 0.72 | 2750 | 0.4 | 0.4 | 0.3 | 2.1 | 2.2 | 5.2 | 3.9 | 58 |
| 1HMA-IE1 | 63M1-2 | 0.18 | 65 | 0.8 | 2730 | 0.5 | 0.5 | 0.5 | 2.2 | 2.2 | 5.5 | 4.8 | 61 |
| 1HMA-IE1 | 63M2-2 | 0.25 | 68 | 0.81 | 2800 | 0.7 | 0.7 | 0.6 | 2.2 | 2.2 | 5.5 | 5.1 | 61 |
| 1HMA-IE1 | 71M1-2 | 0.37 | 70 | 0.81 | 2756 | 1.0 | 0.9 | 0.9 | 2.2 | 2.2 | 6.1 | 6 | 64 |
| 1HMA-IE1 | 71M2-2 | 0.55 | 72 | 0.82 | 2792 | 1.4 | 1.3 | 1.3 | 2.2 | 2.2 | 6.1 | 6.5 | 64 |
| 1HMA-IE1 | 80M1-2 | 0.75 | 72.1 | 0.83 | 2830 | 1.9 | 1.8 | 1.7 | 2.2 | 2.3 | 6.1 | 8.7 | 67 |
| 1HMA-IE1 | 80M2-2 | 1.1 | 75 | 0.84 | 2830 | 2.7 | 2.5 | 2.4 | 2.2 | 2.3 | 7 | 9.5 | 67 |
| 1HMA-IE1 | 90S-2 | 1.5 | 77.2 | 0.84 | 2840 | 3.5 | 3.3 | 3.2 | 2.2 | 2.3 | 7 | 11.8 | 72 |
| 1HMA-IE1 | 90L-2 | 2.2 | 79.7 | 0.85 | 2840 | 4.9 | 4.7 | 4.5 | 2.2 | 2.3 | 7 | 13.5 | 72 |
| 1HMA-IE1 | 100L-2 | 3 | 81.5 | 0.87 | 2860 | 6.4 | 6.1 | 5.9 | 2.2 | 2.3 | 7.5 | 21 | 76 |
| 1HMA-IE1 | 112M-2 | 4 | 83.1 | 0.88 | 2880 | 8.3 | 7.9 | 7.6 | 2.2 | 2.3 | 7.5 | 28 | 77 |
| 1HMA-IE1 | 132S1-2 | 5.5 | 84.7 | 0.88 | 2900 | 11.2 | 10.7 | 10.3 | 2.2 | 2.3 | 7.5 | 39 | 80 |
| 1HMA-IE1 | 132S2-2 | 7.5 | 86 | 0.88 | 2900 | 15.1 | 14.3 | 13.8 | 2.2 | 2.3 | 7.5 | 44.5 | 80 |
| 1HMA-IE1 | 160M1-2 | 11 | 87.6 | 0.89 | 2930 | 21.4 | 20.4 | 19.6 | 2.2 | 2.3 | 7.5 | 69.5 | 86 |
| 1HMA-IE1 | 160M2-2 | 15 | 88.7 | 0.89 | 2930 | 28.9 | 27.4 | 26.4 | 2.2 | 2.3 | 7.5 | 78 | 86 |
| 1HMA-IE1 | 160L-2 | 18.5 | 89.3 | 0.90 | 2930 | 35.0 | 33.2 | 32.0 | 2.2 | 2.3 | 7.5 | 88.5 | 86 |
| 1HMA-IE1 | 56M1-4 | 0.06 | 56.0 | 0.58 | 1325 | 0.3 | 0.3 | 0.3 | 2 | 2.1 | 3.9 | 3.6 | 48 |
| 1HMA-IE1 | 56M2-4 | 0.09 | 58.0 | 0.61 | 1325 | 0.4 | 0.4 | 0.4 | 2 | 2.1 | 3.9 | 3.9 | 48 |
| 1HMA-IE1 | 63M1-4 | 0.12 | 57.0 | 0.72 | 1320 | 0.4 | 0.4 | 0.4 | 2.1 | 2.2 | 4.4 | 4.8 | 52 |
| 1HMA-IE1 | 63M2-4 | 0.18 | 60.0 | 0.73 | 1320 | 0.6 | 0.6 | 0.6 | 2.1 | 2.2 | 4.4 | 5.1 | 52 |
| 1HMA-IE1 | 71M1-4 | 0.25 | 65.0 | 0.74 | 1347 | 0.8 | 0.8 | 0.7 | 2.1 | 2.2 | 5.2 | 6 | 55 |
| 1HMA-IE1 | 71M2-4 | 0.37 | 67.0 | 0.75 | 1340 | 1.1 | 1.1 | 1.0 | 2.1 | 2.2 | 5.2 | 6.3 | 55 |
| 1HMA-IE1 | 80M1-4 | 0.55 | 71.0 | 0.75 | 1390 | 1.6 | 1.5 | 1.4 | 2.4 | 2.3 | 5.2 | 9.4 | 58 |
| 1HMA-IE1 | 80M2-4 | 0.75 | 72.1 | 0.76 | 1390 | 2.1 | 2.0 | 1.9 | 2.3 | 2.3 | 6 | 10 | 58 |
| 1HMA-IE1 | 90S-4 | 1.1 | 75 | 0.77 | 1390 | 2.9 | 2.7 | 2.6 | 2.3 | 2.3 | 6 | 12 | 61 |
| 1HMA-IE1 | 90L-4 | 1.5 | 77.2 | 0.79 | 1390 | 3.7 | 3.6 | 3.4 | 2.3 | 2.3 | 6 | 14 | 61 |
| 1HMA-IE1 | 100L1-4 | 2.2 | 79.7 | 0.81 | 1410 | 5.2 | 4.9 | 4.7 | 2.3 | 2.3 | 7 | 21 | 64 |
| 1HMA-IE1 | 100L2-4 | 3 | 81.5 | 0.82 | 1410 | 6.8 | 6.5 | 6.2 | 2.3 | 2.3 | 7 | 23.5 | 64 |
| 1HMA-IE1 | 112M-4 | 4 | 83.1 | 0.82 | 1435 | 8.9 | 8.5 | 8.2 | 2.3 | 2.3 | 7 | 29.5 | 65 |
| 1HMA-IE1 | 132S-4 | 5.5 | 84.7 | 0.83 | 1440 | 11.9 | 11.3 | 10.9 | 2.3 | 2.3 | 7 | 41 | 71 |
| 1HMA-IE1 | 132M-4 | 7.5 | 86 | 0.84 | 1440 | 15.8 | 15.0 | 14.4 | 2.3 | 2.3 | 7 | 47.5 | 71 |
| 1HMA-IE1 | 160M-4 | 11 | 87.6 | 0.84 | 1460 | 22.7 | 21.6 | 20.8 | 2.2 | 2.3 | 7 | 72.5 | 75 |
| 1HMA-IE1 | 160L-4 | 15 | 88.7 | 0.85 | 1460 | 30.2 | 28.7 | 27.7 | 2.2 | 2.3 | 7.5 | 85.5 | 75 |
| 1HMA-IE1 | 71M1-6 | 0.18 | 56.0 | 0.66 | 865 | 0.7 | 0.7 | 0.7 | 1.9 | 2 | 4 | 6 | 52 |
| 1HMA-IE1 | 71M2-6 | 0.25 | 59.0 | 0.68 | 863 | 0.9 | 0.9 | 0.9 | 1.9 | 2 | 4 | 6.3 | 52 |
| 1HMA-IE1 | 80M1-6 | 0.37 | 62.0 | 0.70 | 890 | 1.3 | 1.2 | 1.2 | 1.9 | 2 | 4.7 | 8.9 | 54 |
| 1HMA-IE1 | 80M2-6 | 0.55 | 65.0 | 0.72 | 890 | 1.8 | 1.7 | 1.6 | 1.9 | 2 | 4.7 | 10.4 | 54 |
| 1HMA-IE1 | 90S-6 | 0.75 | 70 | 0.72 | 910 | 2.3 | 2.1 | 2.1 | 2 | 2.1 | 5.5 | 12.1 | 57 |
| 1HMA-IE1 | 90L-6 | 1.1 | 72.9 | 0.73 | 910 | 3.1 | 3.0 | 2.9 | 2 | 2.1 | 5.5 | 13.7 | 57 |
| 1HMA-IE1 | 100L-6 | 1.5 | 75.2 | 0.75 | 920 | 4.0 | 3.8 | 3.7 | 2 | 2.1 | 5.5 | 23 | 61 |
| 1HMA-IE1 | 112M-6 | 2.2 | 77.7 | 0.76 | 935 | 5.7 | 5.4 | 5.2 | 2 | 2.1 | 6.5 | 28.2 | 65 |
| 1HMA-IE1 | 132S-6 | 3 | 79.7 | 0.76 | 960 | 7.5 | 7.1 | 6.9 | 2.1 | 2.1 | 6.5 | 40.3 | 69 |
| 1HMA-IE1 | 132M1-6 | 4 | 81.4 | 0.76 | 960 | 9.8 | 9.3 | 9.0 | 2.1 | 2.1 | 6.5 | 43 | 69 |
| 1HMA-IE1 | 132M2-6 | 5.5 | 83.1 | 0.77 | 960 | 13.1 | 12.4 | 12.0 | 2.1 | 2.1 | 6.5 | 47.2 | 69 |
| 1HMA-IE1 | 160M-6 | 7.5 | 84.7 | 0.77 | 970 | 17.5 | 16.6 | 16.0 | 2 | 2.1 | 6.5 | 70.6 | 73 |
| 1HMA-IE1 | 160L-6 | 11 | 86.4 | 0.78 | 970 | 24.8 | 23.6 | 22.7 | 2 | 2.1 | 6.5 | 85 | 73 |
| 1HMA-IE1 | 80M1-8 | 0.18 | 51.0 | 0.61 | 630 | 0.9 | 0.8 | 0.8 | 1.8 | 1.9 | 3.3 | 9 | 52 |
| 1HMA-IE1 | 80M2-8 | 0.25 | 54.0 | 0.61 | 640 | 1.2 | 1.1 | 1.1 | 1.8 | 1.9 | 3.3 | 10.5 | 52 |
| 1HMA-IE1 | 90S-8 | 0.37 | 62.0 | 0.61 | 660 | 1.5 | 1.4 | 1.4 | 1.8 | 1.9 | 4 | 12 | 56 |
| 1HMA-IE1 | 90L-8 | 0.55 | 63.0 | 0.61 | 660 | 2.2 | 2.1 | 2.0 | 1.8 | 2 | 4 | 13.5 | 56 |
| 1HMA-IE1 | 100L1-8 | 0.75 | 71.0 | 0.67 | 690 | 2.4 | 2.3 | 2.2 | 1.8 | 2 | 4 | 23 | 59 |
| 1HMA-IE1 | 100L2-8 | 1.1 | 73.0 | 0.69 | 690 | 3.3 | 3.2 | 3.0 | 1.8 | 2 | 5 | 25 | 59 |
| 1HMA-IE1 | 112M-8 | 1.5 | 75.0 | 0.69 | 680 | 4.4 | 4.2 | 4.0 | 1.8 | 2 | 5 | 28 | 61 |
| 1HMA-IE1 | 132S-8 | 2.2 | 78.0 | 0.71 | 710 | 6.0 | 5.7 | 5.5 | 1.8 | 2 | 6 | 40 | 64 |
| 1HMA-IE1 | 132M-8 | 3 | 79.0 | 0.73 | 710 | 7.9 | 7.5 | 7.2 | 1.8 | 2 | 6 | 45 | 64 |
| 1HMA-IE1 | 160M1-8 | 4 | 81.0 | 0.73 | 720 | 10.3 | 9.8 | 9.4 | 1.9 | 2 | 6 | 68 | 68 |
| 1HMA-IE1 | 160M2-8 | 5.5 | 83.0 | 0.74 | 720 | 13.6 | 12.9 | 12.5 | 2 | 2 | 6 | 76 | 68 |
| 1HMA-IE1 | 160L-8 | 7.5 | 85.5 | 0.75 | 720 | 17.8 | 16.9 | 16.3 | 2 | 2 | 6 | 86 | 68 |
PackageThe range of frame size from 80 to 132 :Package by carton box and then packed by wooden box
Our Cerfiticate

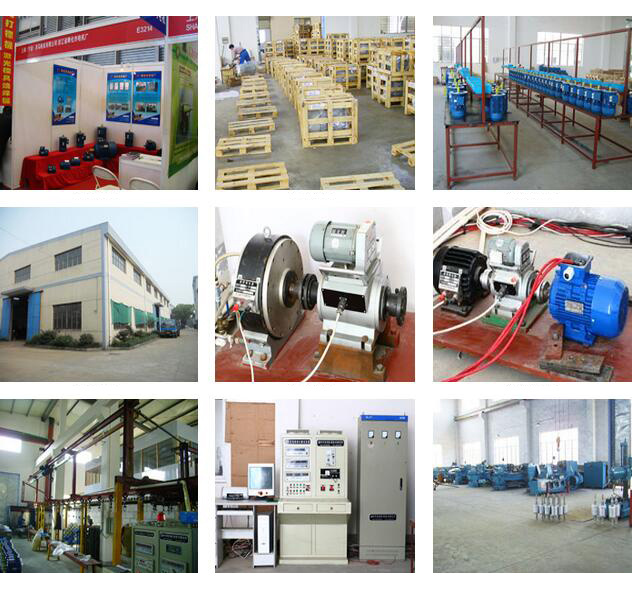

Our Factory
For further informations,pls visit our web page without hesitate!Contact Info.Evan Zhou
Cellphone:0086 15158307112www.hongmamotor.com
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
