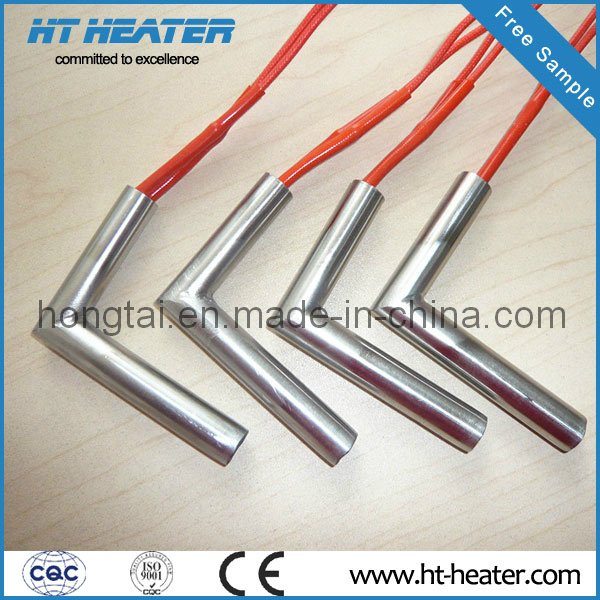

Electric Cartridge Heater Element with Elbow

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heater:	Electric Mould Single Head Cartridge Heater
Sheath Material:	SUS304 for Cartridge Heater
Wattage Tolerance:	+5%, -10%
Resistance Tolerance:	+10%, -5%
Voltages Available:	12V
Max Operating Temp:	800
Length Tolerance:	1 Mm
Diameter Tolerance:	0.02mm
Standard Cold Zone:	5-10mm
Insulation Resistance (Cold):	500
Application:	Heater
Structure Material:	Metal Material
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Regenerative Heat Exchanger

Product Description

Electric Cartridge Heater Element with Elbow

Introduction
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. Two basic forms, high watt density and low watt density.
High density cartridge heaters are available with various termination styles and mounting attachments. In high-density cartridge heaters the resistance wire loops are positioned as close as possible to the outside shell.

Features:
Resistance wire (NiCr2080)
Available in stainless steel 304, 321, 316, Incoloy 800, Incoloy 840
Maximum temperature 800 degree Celsius

Technical Specification:
1. Sheath material: SUS304, 321, 316, Incoloy800, 840
2. Wattage Tolerance: +5%, -10%
3. Resistance tolerance: +10%, -5%
4. Voltages available: 380V, 240V, 220V, 110V, 36V, 24V or 12V
5. Max operating temp: 800º C
6. Length tolerance: ± 1 mm
7. Diameter tolerance: -0.02mm
8. Standard Cold Zone: 5-10mm;
9. Delivery time: 7-10 working days.
10. Thermocouple Location: Type J or K are available
11. Insulation resistance (cold): ≥ 500 MΩ ;
12. Maximum leakage current (cold): ≤ 0.5 mA;


Applications:
Injection moulding - Internal heating of nozzles
Hot runner systems - Heating of manifolds
Packaging industry - Heating of cutting bars
Packaging industry - Heating of hot stamps
Laboratories - Heating of analytical equipment
Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
Telecommunications: Deicing, Enclosure Heater
Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
Food Service: Steamers, Dish Washers,
Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Cartridge Heater Selection
The key questions which need to be answered before selecting a cartridge heater are:
What wattage and voltage will be used?
What is the diameter and heated length required?
How long do the heater leads need to be?
What is maximum temperature and how long required to reach your temperature?
