Electric Cast Heating Element in Heater

Name: Electric Cast Heating Element in Heater
Brand: all-electronics-online.com
SKU: 725232675
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	cast in heater
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Industry Heter:	Cast in Heater
Size:	as Required Any Size Possible
Voltage:	120, 240, 380, 415 Volts
Max. Wattage-1:	Aluminum 5W/Cm²
Max. Wattage-2:	Bronze 7W/Cm²
Terminations:	Leads, Terminal Boxes, Screw
Max. Temperature-1:	Aluminum 371 C
Max. Temperature-2:	Bronze 760 C
Max. Temperature-3:	Iron 482 C
Certificate:	CE ISO

Product Description

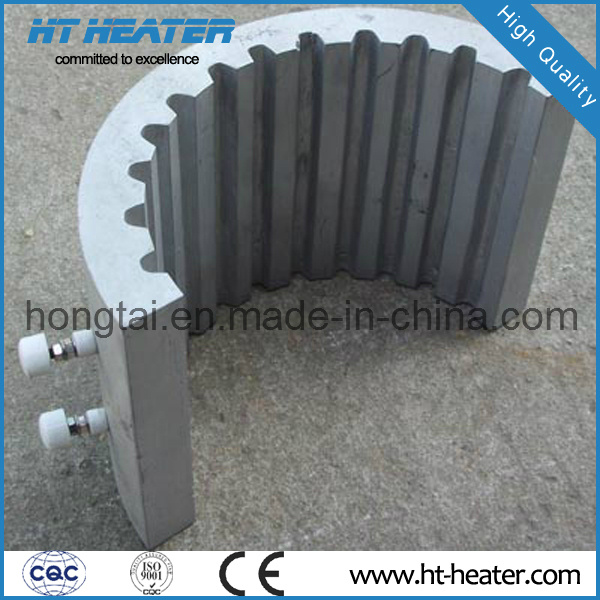

Electric cast in heater
Cast in heater
Cast in heater offers a high quality and efficient method of heating and controlling extruders, compression molding platens, heat sealers, vacuum forming platens. They are contamination and corrosion resistant and can with stand high temperature and pressures in harsh environments with years of trouble free service. Cast-in heaters can be casted into any shape and size needed, thus fully covering the part to be heated and virtually becoming the part itself. Most cast in heat cool bands are made to customer specifications.

Features:
High operating temperatures
Liquid cooling or air-cooling fins
Any size or shape available
Pressure casted ensure porosity free high density casting
Extremely ruled and resistant to damage
Precise and accurate control of temperature due to heat cool action
High watt density available

Size	As required any size possible
Voltage	120, 240, 380, 415 volts
Max. Wattage	Aluminum 5w/cm²
Max. Wattage	Bronze 7w/cm²
Terminations	Leads, Terminal boxes, Screw
Max. Temperature	Aluminum 371
	Bronze 760
	Iron 482
Options	Holes, Grooves, Notches, Cutouts

Applications:

1	Injection and Blow Moulding
2	Extruders
3	Moulds & Dies
4	Packaging machinery
5	Medical equipments
6	Thermoforming equipment

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
