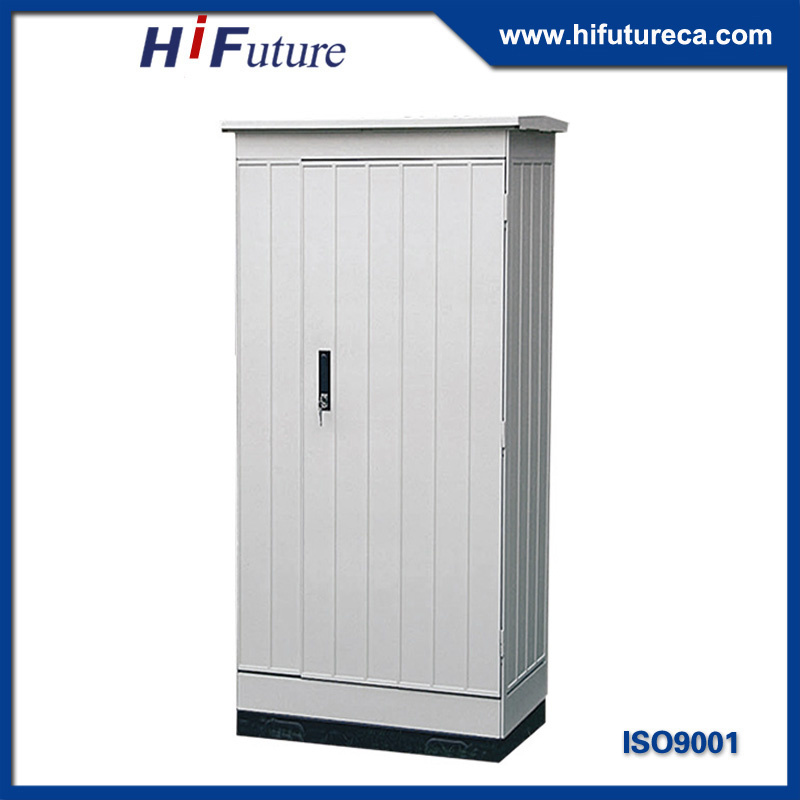

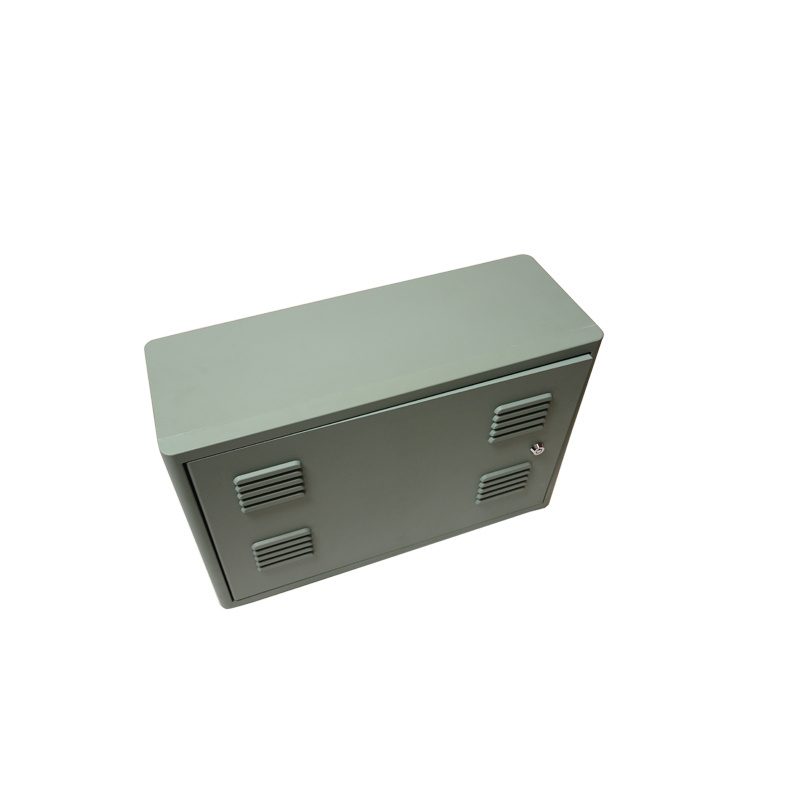

Electric SMC Distribution Box
| Price: |
US $ 15-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
hc-026 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Type: |
on The Ground |
| Material: |
SMC |
| Phase: |
Single Phase |
| Unit: |
One Unit |
| Type: |
Power |
| Structure: |
Open Frame |
| Shell Material: |
SMC |
| Shell Protection Grade: |
IP44 |
| Brand: |
Hifuture |
Product Description
Electric SMC Distribution Box Product overview:1.Modular combination, convenient disassembly and assembly.
2.Three points fixing lock on cabinet door, lock core with protection cover, additional padlock could be fitted.
3.The angle of opening door is 180º,no special tool while exchanging door and portable plates.
4.Ground pole or shelf assembly.
5.Protection class IP33-IP44.
6.Sight window and independent operating compartment is available according to the design requirement.The Parameter of the Material Ability | Index name | Unit | Index data | Test standard |
| Density | g/ cm³ | 1.75-1.95 | GB/T1033 |
| Hydroscopic property | mg | <20 | JB 3961-1 |
| Heat deflection temperature | ºC | 200-240 | JB 3961-A |
| Simple Beam impulse strength | KJ/ | 60-90 | GB 1043 |
| Bending intensity | Mpa | 150-180 | JB 3961-1 |
| Insulation resistance(normal) | Ω | ≥1.0x10 ¹³ | GB 10064 |
| Insulated resistance(immersed for 24hs) | Ω | ≥1.0x10 ¹² | GB 10064 |
| Flam retardant | Grade | FV0 | GB11020 |
| Gas toxicity | Grade | ZA | GA 132-1996 |
| Smoke density | Grade | 15 | GB/T 8627-1999 |
SMC Cabinet Introduction:1.Adopting SMC material, moulding under the high temperature and pressure, the sheet has high intension, high modulus and excellent anti-collision.2. SMA Cabinet is lighter 1/3 than metal is of the same size , thus much metal source could be saved.3.Excellent electric insulativity,ensuring applicating secure use for indoor and outdoor.4. Anti-corrosion and aging, no decay and corrosion, available for rainy and moist costal area and chemical industry, power station and so on, over 20 years working lifetime.5.Special exterior design and the surface disposal results in the cabinet nice looking with no light pollution and anti poster.6.Combined mounting cabinet with convenient installation, the flexible combination can suit for many space requirement. Protection class is from IP33 to IP56.7.Special structure design and venting disposition can reduce the phenomenon of dew and frost inside box.The material traits1.Excellent insulatibity
SMC has high insulation resistance and AC dielectric intension, nice dielectric ability under high AC, no reflection, no block of microwave radiation.
2.Chemical corrosion resisting and environment aging
Resisting corrosion of low concentration acid,alkali,salt,resisting many kind of oils and organic solvent, sea water and so on, and resisting ultraviolet radiation and environment aging.
3.Out temperature resistance
Heat deflection temperature over 200ºC,and low temperature resistant. The material can keep excellent mechanical features in a wide range range of temperature(40ºC-160ºC).
4.Excellent anti-collision
Three dimensional net structure inside the material and the increasing fuction of the longer fiber,resulting in excellent collision resistance and insentive to the gap, and excellent machining ability (drilling and cutting).
5.Flam retardaw and smoke density
Flam retardaw:FV0.Smokedensity class:15.The gas toxicity class:ZA1.
6.Lightweight and Hight-strength
Specific gravity between 1.75g/cm³and 1.95g/m³,high intension and modulus.
Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.
The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.
The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.
Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.
Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.
The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.
Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.
Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.
The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.
Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.
Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
