Electric Wire for Constrction or Building

Prod Model:	BV RV BLVVB RVV BVR
Type:	Insulated
Conductor Material:	Copper
Certification:	ISO9001
Conductor Type:	Solid, Stranded, or Flexible
Application:	Building or Others
Sheath Material:	PVC or PE
Insulation Material:	XLPE, PVC, PE etc
Material Shape:	Round or Flat
Range Of Application:	Building or Others
Brand:	Yifang

Product Description

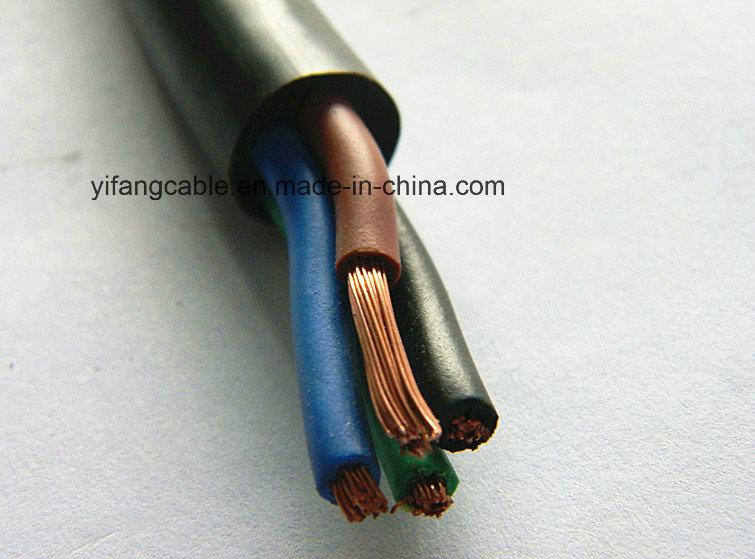

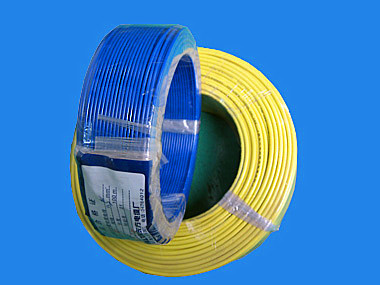

PVC insulated wire Rated 450/750V

Specification:

1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.

2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0 degree.

3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

4. Construction:
copper or aluminum conductor
PVC or XLPE insulated
Single or Multicore
flat or round Shape

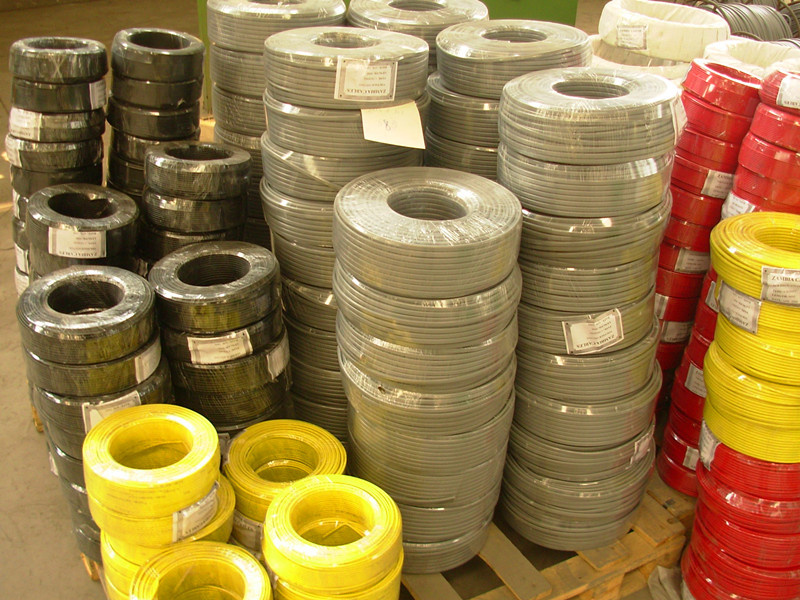

5.packing:
Can be supplied in any length required .
Other special characteritics: design and manufacture according to customers' request .
YiFang cable open the world ,lighten the family.
Please contact us freely ; may be  I will give you a big surprise !

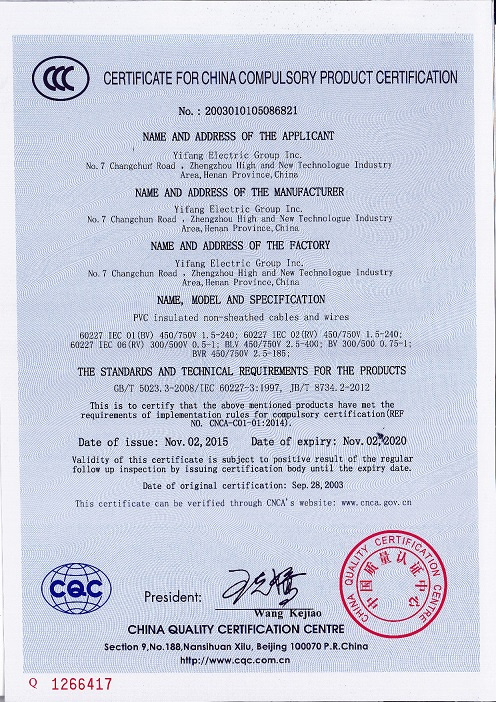

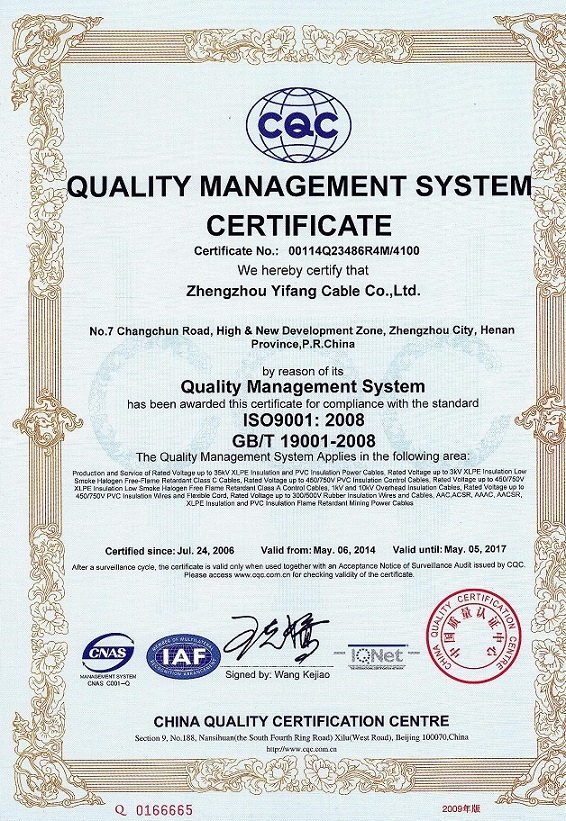

Certifications


Production Equipment

Test Equipment

Our Services
1. Sufficient support for our tendering representatives.
2. Qualification documents support
3. OEM service available based on official & legal authorization.
4. Strict quality control system.
5. Faster lead time than our competitors.
6. Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8. Cable solutions to your particular requirements.
9. Free sample is available with economic express fee.
10. Factory acceptance test assistant
11. Container loading design and handling
FAQ
Why choose us ?
1. Geographical location and convenient transportation, saving transportation costs
2. Full range of products, good reputation.
3. The leading edge technology. Different dedicated engineers and technicians for factory production, domestic sales and foreign sales, service and other jobs.
4. The sophisticated management system and management team. ISO9001,14001 and GB / T28001 passed. Computer management system for sales and production, etc.
5. Advanced service concept and positive attitude.
