Electrical Cable Wire 3mm/3 Phase Cable 10 mm/3 Core 4mm Flexible Cable

Name: Electrical Cable Wire 3mm/3 Phase Cable 10 mm/3 Core 4mm Flexible Cable
Brand: all-electronics-online.com
SKU: 732635152
Availability: InStock
Rating: 4.8 (43 reviews)

Price:	US $ 1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV, VV, YJV.
Product Name:	Electrical Wire Prices in Philippines/Electric Cab
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/PUR
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Type:	Insulated
Conductor Type:	Stranded
Application:	Electric, Power...
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Brand:	Chang Qing Teng

Product Description

electrical cable wire 3mm/3 phase cable 10 mm/3 core 4mm flexible cable

Product Description

electrical cable wire 3mm/3 phase cable 10 mm/3 core 4mm flexible cable

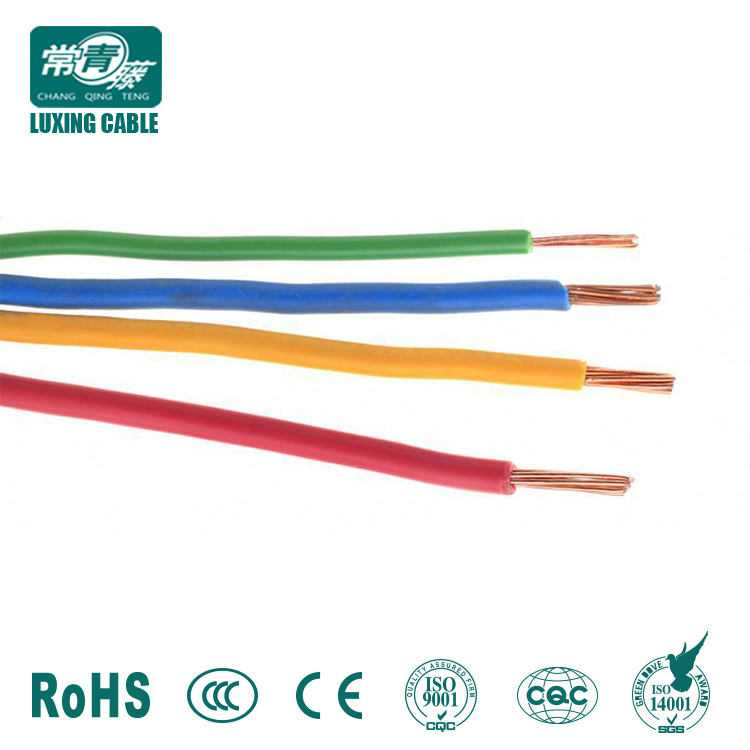

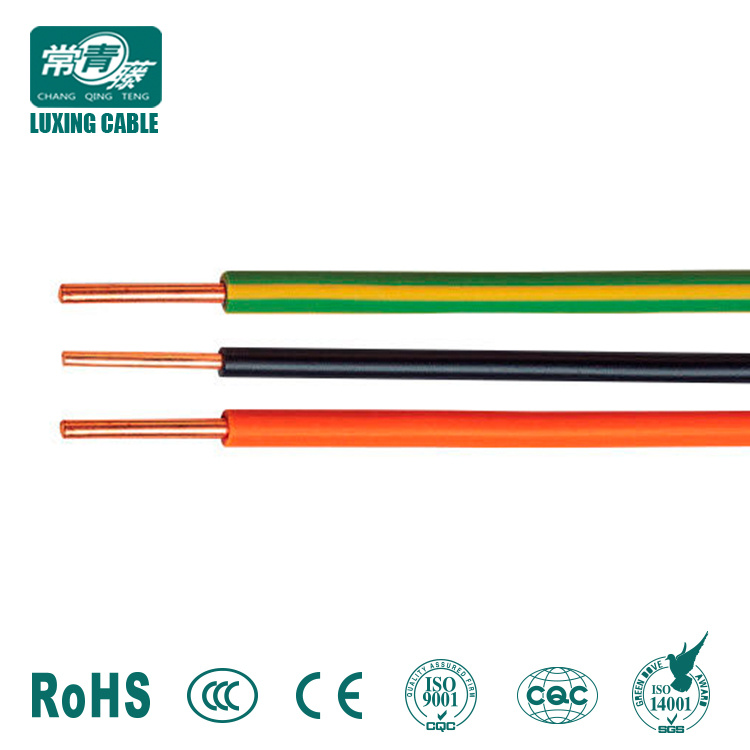

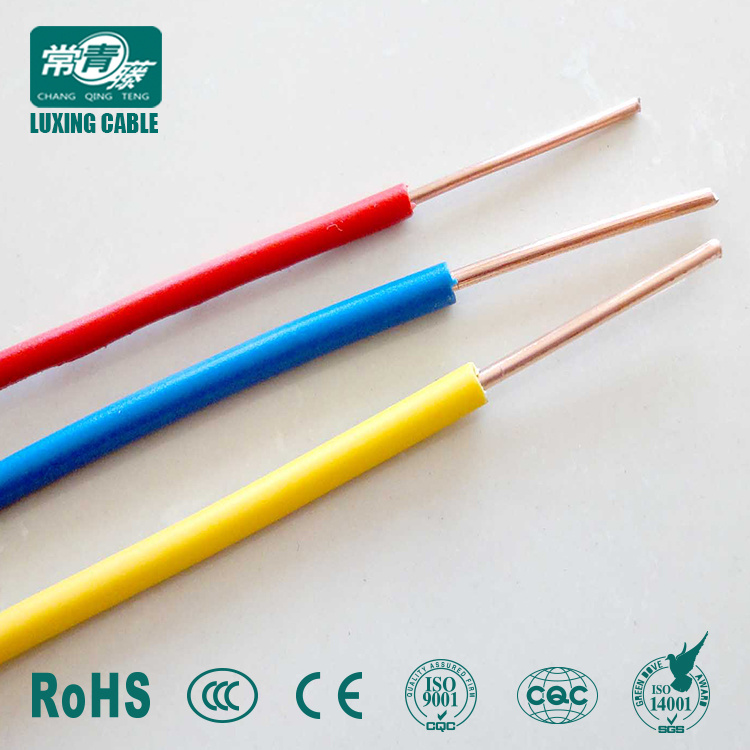

The Details of Cu conductor pvc insluated electrical cable wire

1. Rate Voltage: 300/500V, 450/750V

2. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement

3. Insulation: PVC

4. Conductor: Class 1/2 Plain annealed copper wires,solid or stranded

5.Cross Section Areas: 0.75mm2~185mm2

6. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

7. Packing: 100m per roll, or as your request.

The Application of electrical cable wire

Single Core PVC insulation Copper Conductor house wiring electical wire cable is used for general purpose, as building wire for power,
lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.

Technical Data of electrical cable wire

Nominal section (mm2)	Number/diameter of core (mm)	Maximum outer diameter (mm2)	Reference weight (Kg/km)		Conductor resistance at 20°C ≤(Ω/km)
Nominal section (mm2)	Number/diameter of core (mm)	Maximum outer diameter (mm2)	copper	aluminum	aluminum	copper
1.5(A)	1/1.38	3.3	20.3	-----	-----	12.1
1.5(B)	7/0.52	3.5	21.6	-----	-----	12.1
2.5(A)	1/1.78	3.9	31.6	17	11.80	7.41
2.5(B)	7/0.68	4.2	34.8	-----	-----	7.41
4(A)	1/2.25	4.4	47.1	22	7.39	4.61
4(B)	7/0.85	4.8	50.3	------	-----	4.61
6(A)	1/2.76	4.9	65	29	4.91	3.08
6(B)	7/1.04	5.4	71.2	----	----	3.08
10	7/1.35	7.0	119	62	3.08	1.83
16	7/1.70	8.0	179	78	1.91	1.15
25	7/2.04	10.0	281	118	1.20	0.727
35	7/2.52	11.5	381	156	0.868	0.524
50	19/1.78	13.0	521	215	0.641	0.387
70	19/2.14	15.0	734	282	0.443	0.268
95	19/2.52	17.5	962	385	0.320	0.193
120	37/2.03	19.0	1180	431	0.253	0.153
150	37/2.25	21.0	1470	539	0.206	0.124
185	37/2.52	23.5	1810	666	0.164	0.0991
240	61/2.25	26.5	2350	857	0.125	0.0754

Workshop: we are the 19 years Electric wire & power cable factory.

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
