| Prod Model: |
LYFOOCABLE---BV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
300V |
| Temperature: |
-40-105 |
| Conductor: |
14AWG Tinned Copper |
| Insulation: |
PVC |
| Color: |
Black |
| Flexible: |
Yes |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CE |
Product Description

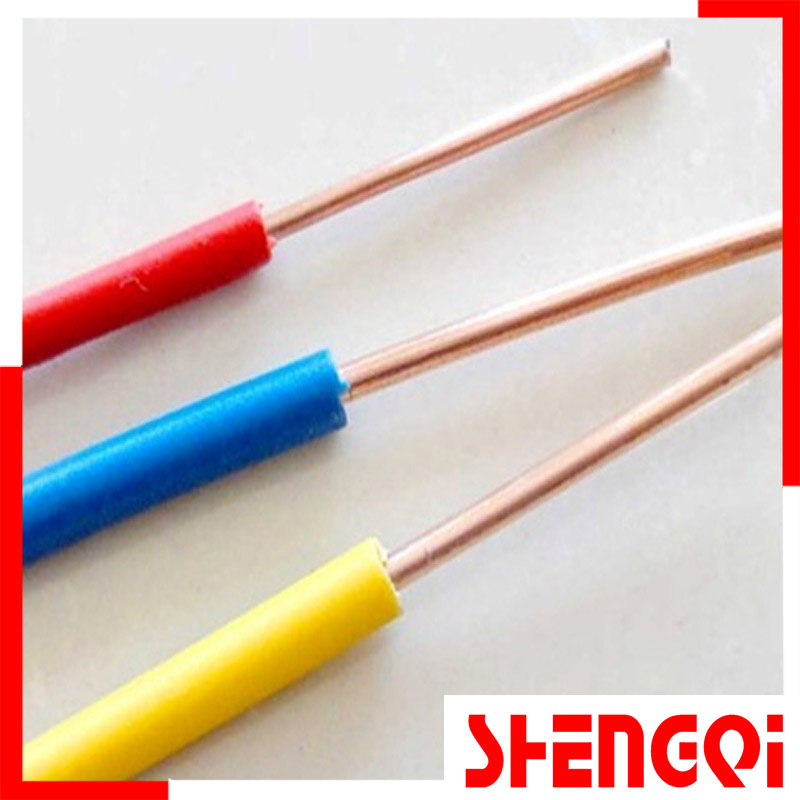

BV cable - CE certificated
1) Technical Date
? Rating voltage: 300V
? Rating temperature: -40°c to +105°c
? Conductor: 14 AWG Tinned Copper
? Insulation: pvc
? Colors: black - brown - red - orange - yellow - green - blue - purple - gray - white - transparent - yellow / green etc.
? Characteristic:flexible, convinience to assemble, cold resistance, stable performance, UL 758 and UL1581, Rohs compliance.
2).Physical performance
a,Excellent mechanical properties
b,Excellent thermal stability
c,Low temperature soft good performance
d,Good flame retardancy
e,high of resistance to chemicals
f,Chemistry stability is good
3).Electrical Properties
a,Electrical insulation good
b,Good the dielectric properties
4).Processing properties
a,Using the hot extrusion processing
b,Can be twisted pair and multi-core
c,According to UL standard design
5)Appliance:
1,Home appliance;
2,Headlamp
3,Industrial machine
4,Electro thermal products
CABLE CONSTRUCTION
CONDUCTOR |
INSULATION |
COVERING |
MAX.COND.
RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC
STRENGTH
(VAC,1min) |
AWG |
CONSTR-
UCTION
(No./mm) |
DIA.
(mm) |
INSULATION
THICKNESS
(mm) |
O.D.
(mm) |
JACKET
THICKNESS
(mm) |
O.D.
(mm) |
28 |
7/0.127 |
0.38 |
0.46 |
1.30 |
0.40 |
2.10 |
239 |
2,000 |
26 |
7/0.16 |
0.48 |
0.46 |
1.40 |
0.40 |
2.20 |
150 |
2,000 |
24 |
11/0.16 |
0.61 |
0.49 |
1.60 |
0.40 |
2.40 |
94.2 |
2,000 |
22 |
17/0.16 |
0.76 |
0.47 |
1.70 |
0.40 |
2.50 |
59.4 |
2,000 |
20 |
26/0.16 |
0.94 |
0.48 |
1.90 |
0.40 |
2.70 |
36.7 |
2,000 |
18 |
41/0.16 |
1.18 |
0.46 |
2.10 |
0.40 |
2.90 |
23.2 |
2,000 |
16 |
26/0.254 |
1.49 |
0.46 |
2.40 |
0.40 |
3.20 |
14.6 |
2,000 |
14 |
41/0.254 |
1.88 |
0.46 |
2.80 |
0.40 |
3.60 |
8.96 |
2,000
|
