Light Duty Industry and Home Usage Electric Wire
| Price: |
US $ 1/Meter |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
LYF002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Standard: |
IEC 60227, BS 6004, VDE02 |
| Core Color: |
Brown, Grey, Black, Blue |
| Conductor: |
Class 1/2 Plain Annealed |
| Material: |
Copper Clad Aluminum |
| Number Of Conductors: |
2-5 |
| Voltage: |
220-440V |
| Frequency: |
50/60Hz |
| Phase: |
1/2/3 |
| Customization: |
Yes |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Hx |
Product Description

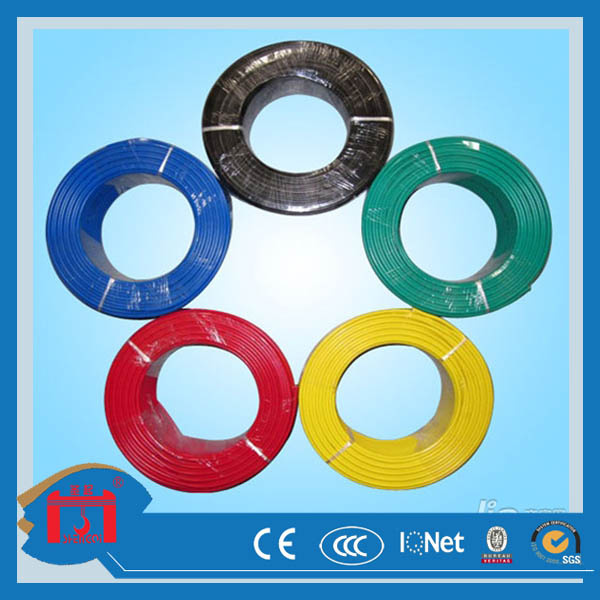

Home Use/Civil Use Electric Wire
Specifications
1. anchor electric wire
2. Copper tape/copper wire screen
3. PVC insulation
4. 1~5 cores, 0.75~630sqmm
5. IEC,BS,VDE,GB/T,JB
Brief Introduction:
Civil Wire/Copper/PVC insulated anchor electric wire 450/750V 1.5mm, 2.5mm, 4mm, etc. wire has the advantage of high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion.It applies to electrical power transmission and distribution lines with AC rated Voltage up to 450/750V.
Features/Specifications:
1. U0/U:300/500V,450/750V
2. Standard applied:IEC60227,BS6004,VDE0281,GB/T5023,JB/T8734
3. Max. working temp.:70°C
4. Short circuit temperature 160 ºC
5. Conductor: Solid or standard pure annealed copper
6. Insulation: PVC or PE
Technical Datas:
Cable Type | Nominal Cross Sectional Area (mm2) | Nominal Overall Diameter (mm) | Nominal Weight (kg/km) |
| H05V-K | 0.5 | 2.1 | 8 |
| H05V-K | 0.75 | 2.3 | 10.6 |
| H05V-K | 1 | 2.5 | 13.7 |
| H07V-K | 1.5 | 3.1 | 20 |
| H07V-K | 2.5 | 3.6 | 31 |
| H07V-K | 4 | 4.3 | 46 |
| H07V-K | 6 | 5.5 | 75 |
| H07V-K | 10 | 6.8 | 125 |
| H07V-K | 16 | 8.6 | 125 |
| H07V-K | 25 | 10 | 299 |
| H07V-K | 35 | 11.5 | 421 |
| H07V-K | 50 | 13.8 | 539 |
| H07V-K | 70 | 15.6 | 730 |
| H07V-K | 95 | 17.5 | 973 |
| H07V-K | 120 | 20.3 | 1208 |
| H07V-K | 150 | 23 | 1524 |
| H07V-K | 185 | 25 | 1859 |
| H07V-K | 240 | 27.8 | 2360 |
