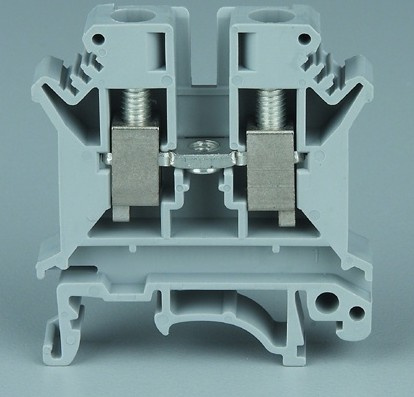

Electrical Conductor UK-6n Terminal Block Connector

Name: Electrical Conductor UK-6n Terminal Block Connector
Brand: all-electronics-online.com
SKU: 716408415
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 0.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Integrated IC
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Contact Termination Form:	Screws Fixed

Product Description

UK terminals adopts frame type screw connection structure.

The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm2 connection conductor.

It is also suitable for connecting the circle copper conductor of tube terminal which is not specially processed or pressure welding.

UK Size:
UK1.5N   UK2.5B UK3N    UK5N   UK6N
UK10N UK16N   UK35B   UKH50 UKH95   UKH150

UK6N
Insulation Voltage 800V
Insulation Circuit 57A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 0.2-6mm2Max
Unite QTY: Chose by yourself

Model UK-6N
Standard	UL	IEC
Rated voltage	600V	800V
Rated current		57A
Diameter	24-12AWG	0.2-6mm 2
Thickness / width / heigth	8.2/42.5/47mm
Rated impulse voltage / pollution level	8kV/3
Strip length	8 mm
Screws Specifications / torque	M3/0.6-0.8Nm
Plug gauge	A3
Insulation material / flame retardant grade	PA/V-0

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
