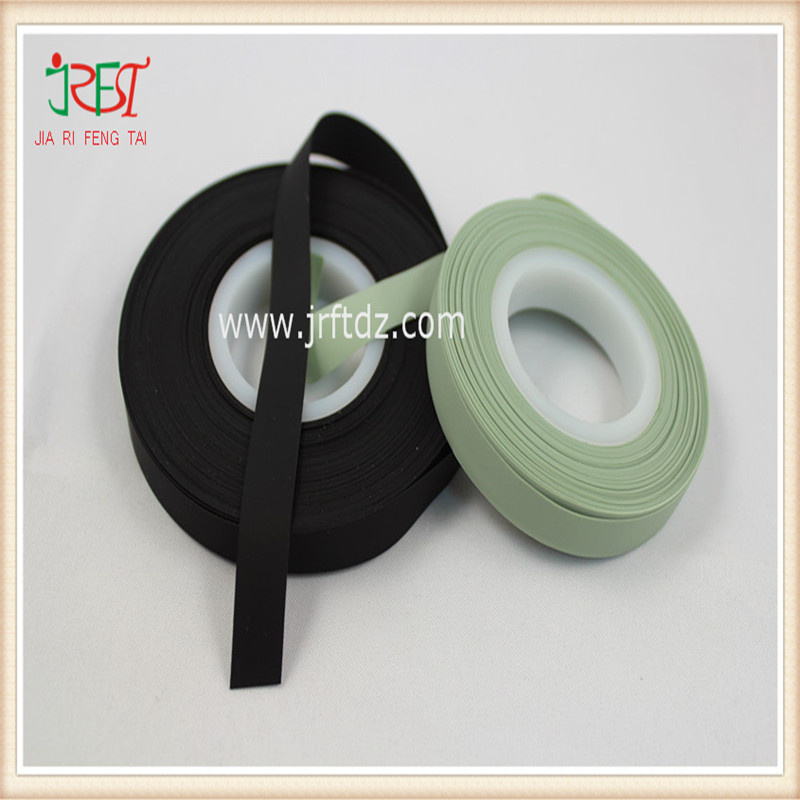

Electrical Insulation Acf Bonding Silicone Rubber Tape for Electrical Appliance

Name: Electrical Insulation Acf Bonding Silicone Rubber Tape for Electrical Appliance
Brand: all-electronics-online.com
SKU: 803561195
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	US $ 1.08-1.21/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM500
Specific Gravity:	2.0
Elongation:	2%
Thermal Conductivity:	0.6-2.8 W/M.K
Thickness:	0.2-0.45mm
Tensile Strength:	80kg/Cm^2
Hardness:	85+-5 Shore a
Application:	Insulators
Type:	Insulation Film
Chemistry:	Organic Insulation
Material:	Silicone
Thermal Rating:	250 250
Maximum Voltage:	<10KV
Color:	White / Black
Brand:	Jrft

Product Description

Electrical Insulation ACF Bonding Silicone Rubber Tape For Electrical Appliance

Product Introduction:

BM500 Bonding Silicone Rubber Electrical Tape with silicone as carrier, through adding high performance nano material and heat conduction material made into by thin material flattener. It has excellent thermal conduction performance, excellent heat resistance and surface antistatic property . Completely replace the Shin Etsu HC series, HC-A series, HC-DS series in performance.

Material composition:

1.Silicone rubber, fiberglass cloth etc.

2.High performance nano materials and heat conduction materials

Product Property :

PROPERTIES TABLE
Test Item	Unit	Numerical Value			Testing Standard
Model No.	--	BM500-020	BM500-030	BM500-045	--
Thickness	mm	0.2	0.3	0.45	ASTM D347
Color	--	Black/Green	Black/Green	Black/Green	Visual
Thickness Tolerance	mm)	0.06±0.01	0.06±0.01	0.06±0.01	ASTM D347
Continuous Use Temp	ºC	-60-200	-60-200	-60-200	TGA+DMA
Thermal Conductivity	W/m.k	0.6-2.8	0.6-2.8	0.6-2.8	ASTM D5470
Volume Resistance	Ω-CM	1017↑	1017↑	1017↑	ASTM D257
Breakdown Voltage	V	1000↑	1000↑	1000↑	ASTM D149
Hardness	shore A	85±5	85±5	85±5	ASM D2240
Specific Gravity	--	2.0	2.0	2.0	ASTM D729
Tensile Strength	kg/cm2	80	80	80	ASTM D412
Elongation	%	2	2	2	ASTM D412
Environmental Protection(6)	--	Check out	Check out	Check out	IEC 62321
Halogen	--	Check out	Check out	Check out	EN 14582
Flame Rating	--	94Vo	94Vo	94Vo	ULNO:E341634

Features:

1.Thermal resistance : 0.63 ºC -in2/W

2.low fastening pressure

3.Surface smooth and highly adapted

4.Electrical insulation

Applications:

1.ITO conductive glass

2.Electronic, electrical appliances

3.Flexible board (FPC)

4.Insulating thermal conduction semiconductor

5.Thermal conductive film, ACF heat pressing engineering

6.Thermistors and temperature sensors

Contact Information :

We can make many specifications according to your requests.

Free samples are available , for more information , pls feel free to contact to me .

Mob : +86 18270827737

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
