Electrical Insulation Muscovite Mica Plate

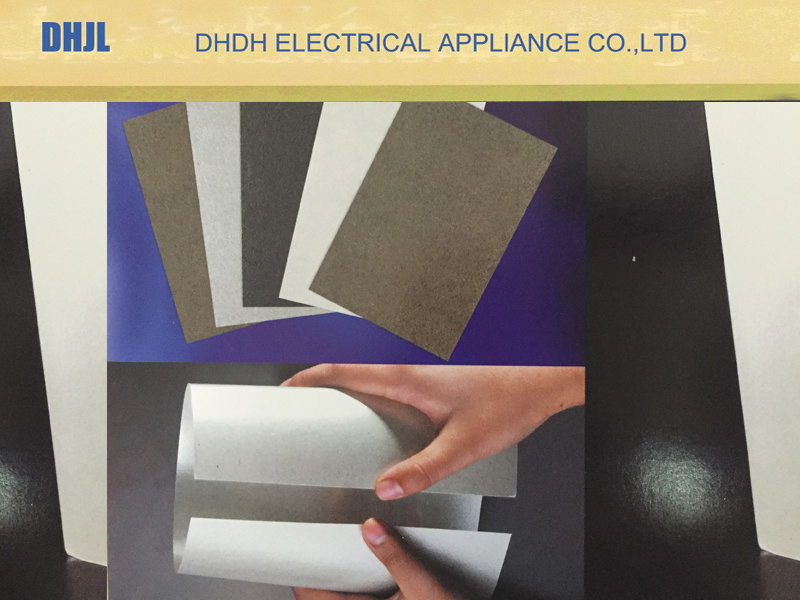

Name: Electrical Insulation Muscovite Mica Plate
Brand: all-electronics-online.com
SKU: 802027465
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 0.1-15.00/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

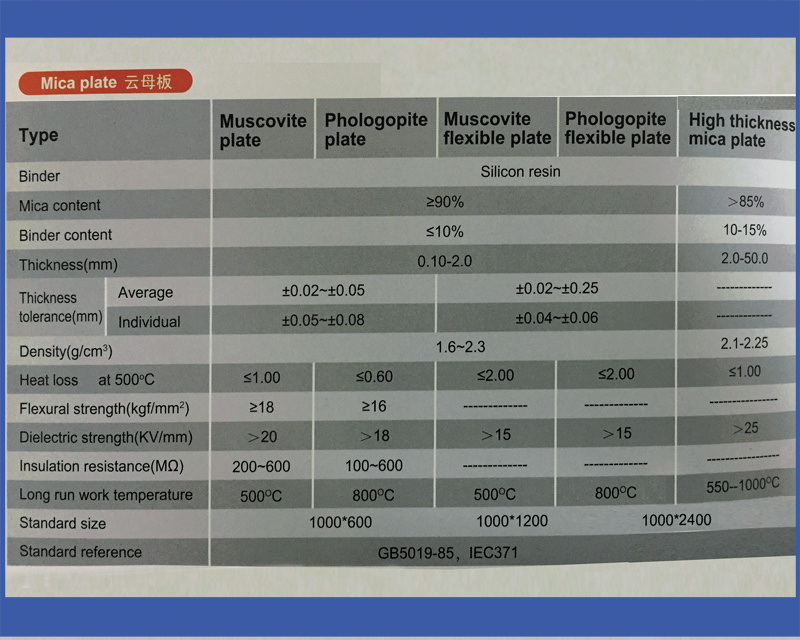

Prod Model:	DHJL-J-GS
Density(g/cm3):	1.6-2.3
Binder Content(%):	10-15
Thickness(mm):	0.10-50.0
Application:	Insulators
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Mica
Thermal Rating:	950-1000/Degree, IEC331
Color:	White Grey Black or Customized

Product Description

Quick Details

Place of Origin:	China (Mainland)	Brand Name:	DHJL	Model Number:	DHJL-J-GS
Type:	Insulation Sheet	Material:	mica	Application:	High Temperature
standard reference:	GB5019-85,IEC371	Color:	grey black white or customized	density:	1.6-2.3
binder content:	10-15%

Packaging & Delivery

Packaging Details:	Wrapped up with PE film in carton and wooden pallet.
Delivery Detail:	within 7 working day after receving deposite

Product Name:Electrical insulation muscovite mica plate

Description

Ceramic Glass Mica Sheet is a high-temp insulating material made of high quality mica materials and high-performance organic silicon resin after melting and laminating process. then process to all different shapes according to different drawings for insulation usage.

Rigid thermal insulation muscovite mica sheet / pad

Rigid laminated material, constructed of muscovite or phologpite mica paper with silicon resin.
They are known by its excellent thermal resistance, good flame resistance, high dielectric strength, excellent physical strength, and little smoke by heating.
The products have been widely used in the industries of household electric appliances (clothes irons, hair dryers, toasters, kettles, cooking appliances, microwave ovens, air heaters), metallurgy (frequency furnace, intermediate frequency furnace, arc furnace), medical appliances, etc.

Flexible thermal insulation muscovite mica sheet / pad
Flexible Mica Plate is a kind of flexible laminated material, it has excellent dielectric properties , excellent tensile strength and easy to form at room temperature. They are often used for hair dryers, curlers, electrical irons, motors and so on.

Glossy thermal insulation muscovite mica sheet / pad
Glossy Mica Plate are made from muscovite (or phlogopite) mica paper and high temperature resistant silicon resin, compared with rigid mica plate, its surface are very smooth, but properties have no different. Glossy Mica Plate series has two species: Glossy muscovite mica plate and Glossy Phologpite mica plate.

Fiberglass flat PET laminating film sheet

The fiberglass flat PET laminating film sheet is a flexible fiberglass sheet laminated with Fibreglass insulation Cloth + Phlogopite mica paper + PET Film . Temperature Class F 155°C. it has good function for motor.

Creamy white epoxy mica sheet

Epoxy mica epoxy resin board consist of muscovite or phlogopite mica paper, impregnated with specially selected epoxy resin. This product is a hard, dense mica sheet for use in segments, separators and spacers. It good performance electrical property, mechanical strength, excellent moisture resistance, and can be sawed, sheared and punched into intricate shapes, using for good commercial practice. Because of its superior uniformity, automatic feeding and stacking are possible for cost saving in high speed assembly operation.

1)we also call mica heat insulation sheet,heating sheet,mica laminate sheet or flexible thermal insulation sheets and so on

2)It has good quality and competitive price for our customers,and we will offer best severice to you

3)It is made by selected mica materials mixed with proper adhesive after pressed and baked,it has good mechanical strength and strength and property of heat resistance

4)It can be cut into various gaskets,also used as filler for spiral wound gaskets,it can be reinforced with tanged metal,it has proven beyond doubt the best and most reliable permanent sealing characteristics,low minimum compressive load,self-adjusting to enlarging gaps,no buming or sticking to flanges,compensating action in ceramic/steel joints with unequal expansion

5 )we also product all kinds of shapes' mica sheet follow customers' requirements
