Electrical Motor Varnish/Prain Silicone Varnish/Paint

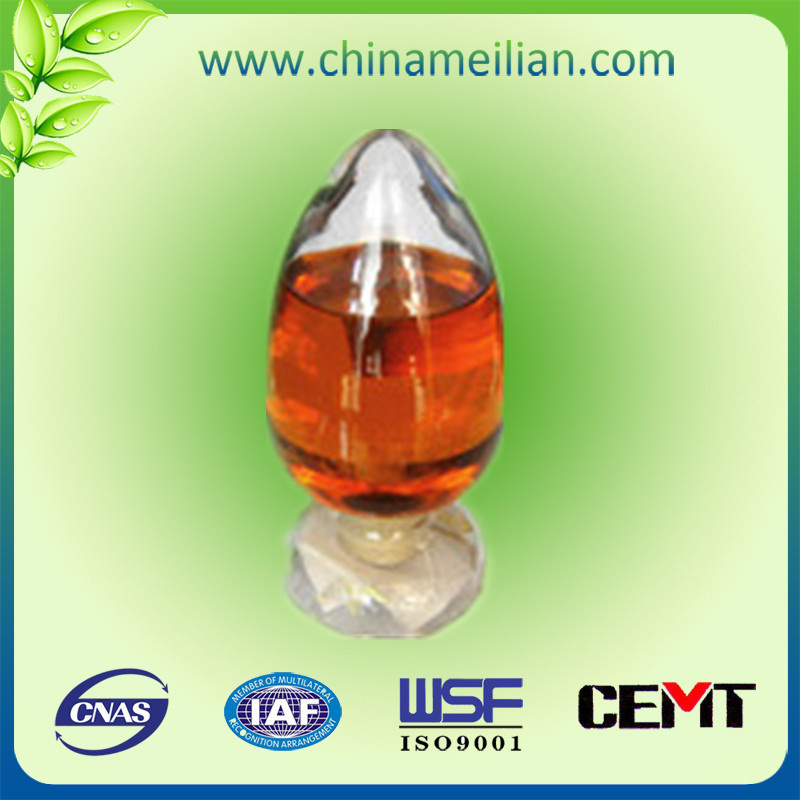

Name: Electrical Motor Varnish/Prain Silicone Varnish/Paint
Brand: all-electronics-online.com
SKU: 743172115
Availability: InStock
Rating: 4.7 (25 reviews)

Price:	US $ 7.5-8kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1kg
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-1054
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	1.14G/Cm3
Solid Content:	50-55%
Samples:	Free
Formation Methods:	High Temperature and High Pressure
Appliction:	Motor & Generator
Delivery:	7-10 Working Days
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Chemistry:	Hybrid Insulation
Material:	Resin
Thermal Rating:	H 180
Maximum Voltage:	>100KV
Brand:	Mj
Type:	Insulating Paint

Product Description

Feature: · High dielectrical property · Good heat,cold and corrosion resistance High mechanical strength Strong adhesion Application: For impregnating insulation of coils for pulling motors on railway Coating insulation of valve plate for lightning arrester Impregnating Grade H motors and any electric coils. Technical Parameters:

Basic Information
Product name	Heat-Resistant Silicone Impregnating Varnish
Item No.	MJ-1054
Brand	MJ
Material	Silicone resin and additives
Grade	Grade H
Technical Specification
Appearance	Transparent liquid, no impurity and Insoluble particles
Density	1.14g/cm 3
Viscosity, by viscosimeter. No.4, at 23±2°c	20-60s
Solid Content	50%-55%
Film drying time	≤1 180±2°c h
Thermo-elastic property	≥75 200±2°c h
Electric strength: At room temperature At 200±2°C In water 24h Damped 24h In transformer oil 2%	≥90 MV/m ≥30 MV/m / ≥70 MV/m /
Bolding strength at room temperature	≥80 N
Volum resistivity: At room temperature At 200±2°C In water 24h(20±5°C) In water 7d(20±5°C) Damped 24h	≥1x10 7 MΩ@m ≥1x10 3 MΩ@m / / ≥1x10 3 MΩ@m
Storage period	6 Month

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
