Electrical Power Cable Copper PE Terminal Block

Name: Electrical Power Cable Copper PE Terminal Block
Brand: all-electronics-online.com
SKU: 627407065
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 0.14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3A,5A,6A,10A,15A,20A,30A,60A,80A,100A,150A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection

Product Description

Circuit of AC 50Hz or 60Hz,
Voltage 380V

Current from 3A to 150A.
For connecting the round copper conductors.

Features:
1. Material:PA, PP, PE.Brass insert and Steel screw

2. Working Temperature:- 40oC to 110oC

3. Color:Natural,black,yelliow and organge color and color can be customize.

4. PAYMENT TERMS:30% deposit, balance see the copy of B/L by email or negotiation.

Material description:
PA ,Polyamide 66,94-2 grade .Inflaming retarding,good resist dissolve ,good bounce impact fore. Working termpertaure:-30°C to 110°C.

PP,Polypropylene,inflaming retarding,low transparency, low rigidity, good bounce impact force.Working Temperature:-40°Cto 90°.

PE,Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working termpertaure:-40°C to 65°C

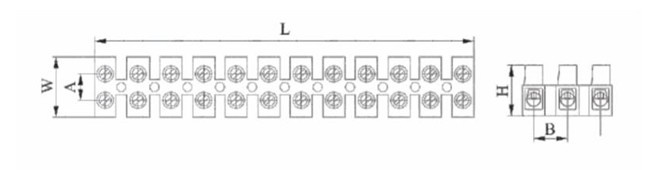

Item No	Section size(mm² )	L(mm)	W(mm)	H	A	B
JWL-3A	3A-2.5/4mm²	92	16	12.2	7.1	8.2
JWL-6A	6A-6mm²	115	17.7	14.1	7.8	9.2
JWL-10A	10A-10mm²	124.6	20.6	16.8	8.7	11.1
JWL-15A	15A-12mm²	133.5	22.3	18.6	9.8	12
JWL-20A	20A-14mm²	141.6	22.8	18.2	10.1	12.2
JWL-30A	30A-16mm²	164.1	24.1	21.8	11.2	15.1
JWL-60A	60A-25mm²	190	31	25	13.8	17.2
JWL-80A	80A- 30mm²	207	37	28	15	19
JWL-100A	100A-35mm²	228	38.9	34	17.1	21
JWL-150A	150A-40mm²	260	44.1	33.8	23.1	25.2
