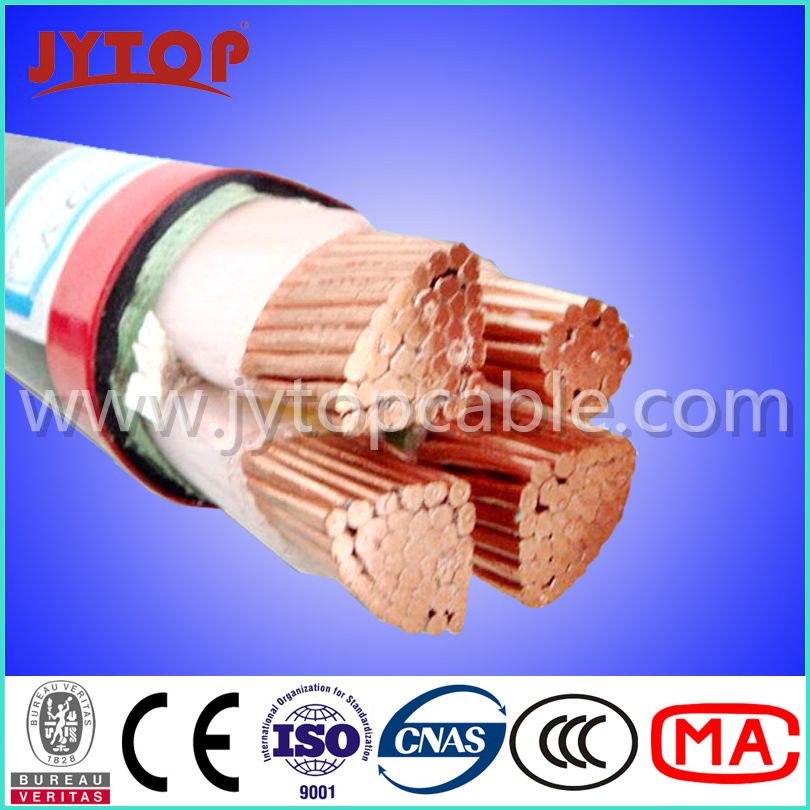

Electrical Power Cable (N2XY) with Copper Conductor

Name: Electrical Power Cable (N2XY) with Copper Conductor
Brand: all-electronics-online.com
SKU: 690325542
Availability: InStock
Rating: 4.4 (104 reviews)

Price:	US $ 0.8-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Power Cable (N2XY)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16sqmm-630sqmm
Insulation:	XLPE HDPE PVC
Color:	Black White Red Blue Green Yellow
Armor:	Swa Sta Awa
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	VDE
Brand:	Jytop

Product Description

0.6/1kV MULTICORE N2XY ELECTRICAL CABLE LOW VOLTAGE LV N2XY ELECTRIC CABLE

CONSTRUCTION:
1, Copper conductor
2, XLPE insulation, core colors according to HD308
3, Extruded common core covering
4, PVC out sheath black

PROPERTIES
-Max. Admissible conductor temperature: 90º C
-Service temperature: -20º C to +90º C
-Min. Laying temperature: -5º C
-Min. Bending radius:
Multicore 12 x D.
Single core: 15 x D.
-Flame retardant according to DIN EN 60332-1

Note: RE= round conductor RM = stranded conductor SM=sectional conductor

Cable size	Conductor type	Nominal thickness of XLPE insulation(mm)	Nominal thickness of PVC or PE sheath(mm)	Approx. cable overall diameter (mm)	Max. D.C resistance @ 20 0 C (Ω/km)
4x1.5mm 2	RE or RM	0.7	1.8	10.5	12.1
4x2.5mm 2	RE or RM	0.7	1.8	11.5	7.41
4x4mm 2	RE or RM	0.7	1.8	12.6	4.61
4x6mm 2	RE or RM	0.7	1.8	13.8	3.08
4x10mm 2	RM	0.7	1.8	16.9	1.83
4x16mm 2	RM	0.7	1.8	19.5	1.15
4x25mm 2	SM	0.9	1.8	21.3	0.727
4x35mm 2	SM	0.9	1.8	23.4	0.524
4x50mm 2	SM	1.0	1.9	26.8	0.387
4x70mm 2	SM	1.1	2.0	30.6	0.268
4x95mm 2	SM	1.1	2.1	34.9	0.193
4x120mm 2	SM	1.2	2.3	38.4	0.153
4x150mm 2	SM	1.4	2.4	42.5	0.124
4x185mm 2	SM	1.6	2.6	47.4	0.0991
4x240mm 2	SM	1.7	2.8	53.4	0.0754
4x300mm 2	SM	1.8	3.0	59.0	0.0601

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
