Product Description

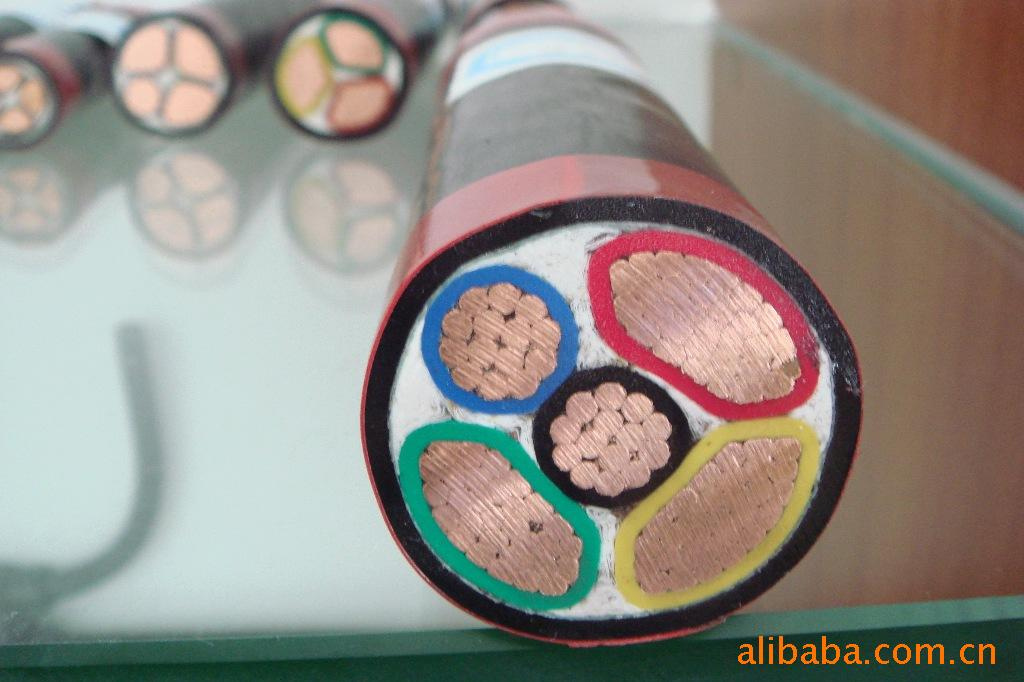

Low Voltage LV XLPE Cable 1kv XLPE Insulated Power Cable 0.6/1kv XLPE Insulated Electric Cable 0.6/1KV CU/XLPE/PVC cable
1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 90 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed: 250 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 20 times of the diameter of cable
For multi-core cable: Not less than 15 times of the diameter of cable
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.
3. Manufacturing Standards
DIN standard
NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
| Dimensions - number of cores x conductor cross-section | Construction | Construction of individual conductor | External diameter | Insulation thickness | Sheath thickness | Conductor resistance at 20 °C | Short circuit current 1s | Cu weight | Cable weight | Packing* |
| | | nominal | approx. | nominal | nominal | max. | nominal | | prib. | |
| N x mm² | | n x mm | mm | mm | mm | Ω/km | kA | kg/km | kg/km | |
| Power N2XY-J, N2XY-O |
| 1 x 4 | RE | 1 x 2,25 | 8 | 0,7 | 1,8 | 4,61 | 0,46 | 38,4 | 72 | CUT |
| 1 x 6 | RE | 1 x 2,76 | 8,5 | 0,7 | 1,8 | 3,08 | 0,69 | 57,6 | 92 | CUT |
| 1 x 10 | RE | 1 x 3,56 | 9,5 | 0,7 | 1,8 | 1,83 | 1,15 | 96 | 142 | CUT |
| 1 x 16 | RE | 1 x 4,51 | 11,7 | 0,7 | 1,8 | 1,15 | 1,84 | 153,6 | 205 | CUT |
| 1 x 25 | RM | 7 x 2,13 | 13 | 0,9 | 1,8 | 0,727 | 2,87 | 240 | 303 | CUT |
| 1 x 35 | RM | 7 x 2,52 | 14 | 0,9 | 1,8 | 0,524 | 4,02 | 336 | 394 | CUT |
| 1 x 50 | RM | 19 x 1,83 | 16 | 1 | 1,8 | 0,387 | 5,75 | 480 | 516 | CUT |
| 1 x 70 | RM | 19 x 2,17 | 17 | 1,1 | 1,8 | 0,268 | 8,05 | 672 | 721 | CUT |
| 1 x 95 | RM | 19 x 2,52 | 19 | 1,1 | 1,8 | 0,193 | 10,9 | 912 | 992 | CUT |
| 1 x 120 | RM | 37 x 2,03 | 21 | 1,2 | 1,8 | 0,153 | 13,8 | 1152 | 1196 | CUT |
| 1 x 150 | RM | 37 x 2,27 | 23,3 | 1,4 | 1,8 | 0,124 | 17,2 | 1440 | 1509 | CUT |
| 1 x 185 | RM | 37 x 2,52 | 25,3 | 1,6 | 1,8 | 0,0991 | 21,3 | 1776 | 1850 | CUT |
| 1 x 240 | RM | 61 x 2,24 | 28,3 | 1,7 | 1,8 | 0,0754 | 27,6 | 2304 | 2394 | CUT |
| 1 x 300 | RM | 61 x 2,50 | 30,3 | 1,8 | 1,9 | 0,0601 | 34,5 | 2880 | 2964 | CUT |
| 1 x 400 | RM | 61 x 2,89 | 34,7 | 2 | 2 | 0,047 | 41,2 | 3840 | 3838 | CUT |
| 1 x 500 | RM | 61 x 3,23 | 38 | 2,2 | 2,1 | 0,0366 | 51,5 | 4800 | 4863 | CUT |
| 1 x 630 | RM | 91 x 2,97 | 43 | 2,4 | 2,2 | 0,0283 | 64 | 6048 | 6285 | CUT |
| |
| 2 x 1,5 | RE | 1 x 1,38 | 9,5 | 0,7 | 1,8 | 12,1 | 0,173 | 28,8 | 126 | CUT |
| 2 x 2,5 | RE | 1 x 1,78 | 10,6 | 0,7 | 1,8 | 7,41 | 0,288 | 48 | 157 | CUT |
| 2 x 4 | RE | 1 x 2,25 | 11,5 | 0,7 | 1,8 | 4,61 | 0,46 | 76,8 | 200 | CUT |
| 2 x 6 | RE | 1 x 2,76 | 12,5 | 0,7 | 1,8 | 3,08 | 0,69 | 115,2 | 253 | CUT |
| 2 x 10 | RE | 1 x 3,56 | 14,1 | 0,7 | 1,8 | 1,83 | 1,15 | 192 | 395 | CUT |
| 2 x 16 | RE | 1 x 4,51 | 15,9 | 0,7 | 1,8 | 1,15 | 1,84 | 307,2 | 558 | CUT |
| 2 x 25 | RM | 7 x 2,13 | 20,3 | 0,9 | 1,8 | 0,727 | 2,87 | 480 | 811 | CUT |
| 2 x 35 | RM | 7 x 2,52 | 22,2 | 0,9 | 1,8 | 0,524 | 4,02 | 672 | 1038 | CUT |
| 2 x 50 | RM | | 25 | 1 | 1,8 | 0,387 | 5,75 | 960 | | CUT |
| |
| 3 x 1,5 | RE | 1 x 1,38 | 12,5 | 0,7 | 1,8 | 12,1 | 0,173 | 43,2 | 147 | CUT |
| 3 x 2,5 | RE | 1 x 1,78 | 13 | 0,7 | 1,8 | 7,41 | 0,288 | 72 | 187 | CUT |
| 3 x 4 | RE | 1 x 2,25 | 15 | 0,7 | 1,8 | 4,61 | 0,46 | 115,2 | 243 | CUT |
| 3 x 6 | RE | 1 x 2,76 | 16 | 0,7 | 1,8 | 3,08 | 0,69 | 172,8 | 315 | CUT |
| 3 x 10 | RE | 1 x 3,56 | 18 | 0,7 | 1,8 | 1,83 | 1,15 | 288 | 495 | CUT |
| 3 x 16 | RE | 1 x 4,51 | 20 | 0,7 | 1,8 | 1,15 | 1,84 | 460,8 | 712 | CUT |
| 3 x 25 | RM | 7 x 2,13 | 25 | 0,9 | 1,8 | 0,727 | 2,87 | 720 | 1038 | CUT |
| 3 x 35 | SM | 7 x 2,52 | 23 | 0,9 | 1,8 | 0,524 | 4,02 | 1008 | 1342 | CUT |
| 3 x 50 | SM | 19 x 1,83 | 26,3 | 1 | 1,8 | 0,387 | 5,75 | 1440 | 1749 | CUT |
| 3 x 70 | SM | 19 x 2,17 | 30,7 | 1,1 | 2 | 0,268 | 8,05 | 2016 | 2451 | CUT |
| 3 x 95 | SM | 19 x 2,52 | 34,3 | 1,1 | 2,1 | 0,193 | 10,9 | 2736 | 3368 | CUT |
| 3 x 120 | SM | 37 x 2,03 | 38 | 1,2 | 2,2 | 0,153 | 13,8 | 3456 | 4061 | CUT |
| 3 x 150 | SM | 37 x 2,27 | 42 | 1,4 | 2,3 | 0,124 | 17,2 | 4320 | 5167 | CUT |
| 3 x 185 | SM | 37 x 2,52 | 48 | 1,6 | 2,5 | 0,0991 | 21,3 | 5328 | 6363 | CUT |
| 3 x 240 | SM | 61 x 2,24 | 52 | 1,7 | 2,7 | 0,0754 | 27,6 | 6912 | 8211 | CUT |
| |
| 3 x 25+16 | RM/RE | 7 x 2,13 | 26 | 0,9 | 1,8 | 0,727 | 2,87 | 873,6 | 1214 | CUT |
| 3 x 35+16 | SM/RE | 7 x 2,52 | 26,3 | 0,9 | 1,8 | 0,524 | 4,02 | 1161,6 | 1507 | CUT |
| 3 x 50+25 | SM/RM | 19 x 1,83 | 30,3 | 1 | 1,9 | 0,387 | 5,75 | 1680 | 2006 | CUT |
| 3 x 70+35 | SM/SM | 19 x 2,17 | 33,3 | 1,1 | 2 | 0,268 | 8,05 | 2352 | 2834 | CUT |
| 3 x 95+50 | SM/SM | 19 x 2,52 | 39,3 | 1,1 | 2,2 | 0,193 | 10,9 | 3216 | 3867 | CUT |
| 3 x 120+70 | SM/SM | 37 x 2,03 | 42,7 | 1,2 | 2,3 | 0,153 | 13,8 | 4128 | 4740 | CUT |
| 3 x 150+70 | SM/SM | 37 x 2,27 | 46,7 | 1,4 | 2,4 | 0,124 | 17,2 | 4992 | 5766 | CUT |
| 3 x 185+95 | SM/SM | 37 x 2,52 | 51,7 | 1,6 | 2,6 | 0,0991 | 21,3 | 6240 | 7258 | CUT |
| 3 x 240+120 | SM/SM | 61 x 2,24 | 58,7 | 1,7 | 2,8 | 0,0754 | 27,6 | 8064 | 9271 | CUT |
| 3 x 300+150 | SM/SM | 61 x 2,50 | 66 | 1,8 | 2,9 | 0,0601 | 34,5 | 10080 | 11471 | CUT |
| |
| 4 x 1,5 | RE | 1 x 1,38 | 13,3 | 0,7 | 1,8 | 12,1 | 0,173 | 57,6 | 173 | CUT |
| 4 x 2,5 | RE | 1 x 1,78 | 14,3 | 0,7 | 1,8 | 7,41 | 0,288 | 96 | 224 | CUT |
| 4 x 4 | RE | 1 x 2,25 | 16,3 | 0,7 | 1,8 | 4,61 | 0,46 | 153,6 | 292 | CUT |
| 4 x 6 | RE | 1 x 2,76 | 17,3 | 0,7 | 1,8 | 3,08 | 0,69 | 230,4 | 382 | CUT |
| 4 x 10 | RE | 1 x 3,56 | 19,3 | 0,7 | 1,8 | 1,83 | 1,15 | 384 | 612 | CUT |
| 4 x 16 | RE | 1 x 4,51 | 22,3 | 0,7 | 1,8 | 1,15 | 1,84 | 614,4 | 889 | CUT |
| 4 x 25 | RM | 7 x 2,13 | 27,3 | 0,9 | 1,8 | 0,727 | 2,87 | 960 | 1328 | CUT |
| 4 x 35 | SM | 7 x 2,52 | 29,3 | 0,9 | 1,8 | 0,524 | 4,02 | 1344 | 1723 | CUT |
| 4 x 50 | SM | 19 x 1,83 | 31,3 | 1 | 1,9 | 0,387 | 5,75 | 1920 | 2267 | CUT |
| 4 x 70 | SM | 19 x 2,17 | 35,3 | 1,1 | 2,1 | 0,268 | 8,05 | 2688 | 3204 | CUT |
| 4 x 95 | SM | 19 x 2,52 | 40,3 | 1,1 | 2,2 | 0,193 | 10,9 | 3648 | 4380 | CUT |
| 4 x 120 | SM | 37 x 2,03 | 43,7 | 1,2 | 2,4 | 0,153 | 13,8 | 4608 | 5306 | CUT |
| 4 x 150 | SM | 37 x 2,27 | 48,7 | 1,4 | 2,5 | 0,124 | 17,2 | 5760 | 6657 | CUT |
| 4 x 185 | SM | 37 x 2,52 | 53,7 | 1,6 | 2,7 | 0,0991 | 21,3 | 7104 | 8281 | CUT |
| 4 x 240 | SM | 61 x 2,24 | 63 | 1,7 | 2,9 | 0,0754 | 27,6 | 9216 | 10677 | CUT |
| |
| 5 x 1,5 | RE | 1 x 1,38 | 14 | 0,7 | 1,8 | 12,1 | 0,173 | 72 | 205 | CUT |
| 5 x 2,5 | RE | 1 x 1,78 | 15 | 0,7 | 1,8 | 7,41 | 0,288 | 120 | 267 | CUT |
| 5 x 4 | RE | 1 x 2,25 | 17 | 0,7 | 1,8 | 4,61 | 0,46 | 192 | 358 | CUT |
| 5 x 6 | RE | 1 x 2,76 | 19 | 0,7 | 1,8 | 3,08 | 0,69 | 288 | 471 | CUT |
| 5 x 10 | RE | 1 x 3,56 | 21 | 0,7 | 1,8 | 1,83 | 1,15 | 480 | 745 | CUT |
| 5 x 16 | RE | 1 x 4,51 | 23 | 0,7 | 1,8 | 1,15 | 1,84 | 768 | 1066 | CUT |
| 5 x 25 | RM | 7 x 2,13 | 29 | 0,9 | 1,8 | 0,727 | 2,87 | 1200 | 1592 | CUT |
| 5 x 35 | RM | 7 x 2,52 | 38 | 0,9 | 1,8 | 0,524 | 4,02 | 1680 | 2072 | CUT |
| 5 x 50 | RM | 19 x 1,83 | 43 | 1 | 1,8 | 0,387 | 5,75 | 2400 | 2752 | CUT |
| Signal N2XY-J, N2XY-O |
| 7 x 1,5 | RE | 1 x 1,38 | 13 | 0,7 | 1,8 | 12,1 | 0,173 | 100,8 | | CUT |
| 12 x 1,5 | RE | 1 x 1,38 | 20 | 0,7 | 1,8 | 12,1 | 0,173 | 172,8 | | CUT |
| |
| 7 x 2,5 | RE | 1 x 1,78 | 18 | 0,7 | 1,8 | 7,41 | 0,288 | 168 | | CUT |
| 12 x 2,5 | RE | 1 x 1,78 | 23 | 0,7 | 1,8 | 7,41 | 0,288 | 288 | | CUT |
| 24 x 2,5 | RE | 1 x 1,78 | 31 | 0,7 | 1,8 | 7,41 | 0,288 | 576 | | CUT |
| *) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length |
