| Prod Model: |

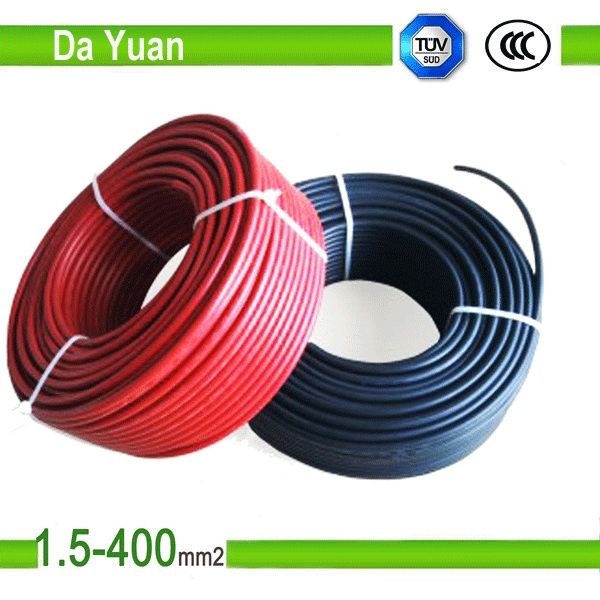

solar cable -- Da Yuan |
| Rated Voltage: |
AC: 0.6/1kv DC: 1.8kv |
| Conductor: |
Tinned Copper Wire |
| Insulation/Sheath: |
Xlpo/XLPE |
| Ambient Temperature: |
40 Centigrade Below Zero to 90 Centigrade |
| Color: |
Black, Red, or as Request |
| Certificate: |
ISO CCC TUV |
| Manufacturing Standard: |
2 Pfg 1169/08.2007 |
| Competitive Price: |
Factory Direct Sale |
| Sample: |
Free Sample Available |
| Note: |
OEM, ODM Acceptable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Certification: |
TUV |
| Application: |
PV Power Transmission |
| Conductor Material: |
Tinned Copper Wire |
| Sheath Material: |
Xlpo/XLPE |
| Insulation Material: |
Xlpo/XLPE |
| Material Shape: |
Round/Flat |
| Range Of Application: |
Solar System |
| Brand: |
Dayuan |
Product Description
1.Application:
Specifically designed for connecting photovoltaic system components inside and outside of building with high mechanical requirements and extreme weather conditions for permanent installations.
2.General Characteristics:
| Item | Description |
| Rated Voltage | AC 0.6/1KV;DC 1.8KV |
| Conductor | Stranded Tinned Copper Wire |
| Insulation/Sheath | XLPO |
| Ambient Temperature | -40~90ºC |
| Max. Temperature at Conductor | 120ºC |
| The permitted short-circuit-temperature(5s) | 200ºC |
| Color | Black, Red |
| Weathering/UV resistance | Pass |
| Flame Test | IEC 60332-1 Vertically Burning |
| Production Standard | 2 PFG 1169/08.2007 |
| TUV Certificates No. | R 50263641 |
| Service Life | 25 years |
| Features | Low smoke zero halogen,
Excellent properties of cold-resistant,
UV-resistance, Ozone-proof and weather-proof.
Flame retardant, Resistance to cut marks and penetration. |
3. Cable Specifications:
| Single Core Photovoltaic Cables |
| Model | Spec.(mm2) | Conductor(mm) | Insulation(mm) | Jacket(mm) | Weight
kg/km |
| | | No./Dia | OD | Thickness | OD | Thickness | OD | |
| PV1-F | 1.5 | 30/0.25 | 1.6 | 0.75 | 3.1 | 0.8 | 4.7 | 37.4 |
| | 2.5 | 49/0.25 | 2.1 | 0.75 | 3.6 | 0.8 | 5.2 | 49.5 |
| | 4 | 52/0.3 | 2.6 | 0.75 | 4.1 | 0.8 | 5.7 | 64.6 |
| | 6 | 78/0.3 | 3.2 | 0.75 | 4.7 | 0.8 | 6.3 | 85.6 |
| | 10 | 78/0.4 | 4.7 | 0.75 | 6.2 | 0.8 | 7.8 | 142.1 |
| | 16 | 126/0.4 | 5.8 | 0.75 | 7.3 | 0.8 | 8.9 | 197.7 |
| | 25 | 196/0.4 | 7.6 | 0.75 | 9.1 | 0.8 | 10.7 | 290.1 |
| | 35 | 276/0.4 | 9.1 | 1.20 | 11.5 | 1.4 | 14.3 | 455.9 |
| | 50 | 396/0.4 | 11.3 | 1.40 | 14.1 | 1.4 | 16.9 | 633.6 |
| | 70 | 360/0.5 | 12.8 | 1.40 | 15.6 | 1.4 | 18.4 | 841.0 |
| | 95 | 475/0.5 | 15.0 | 1.60 | 18.2 | 1.6 | 21.4 | 1111.2 |
| | 120 | 608/0.5 | 14.0 | 1.60 | 17.2 | 1.6 | 20.4 | 1330.0 |
| | 150 | 756/0.5 | 19.0 | 1.80 | 22.6 | 1.8 | 26.2 | 1713.4 |
| | 185 | 925/0.5 | 21.0 | 2.00 | 25.0 | 2.0 | 29.0 | 2097.2 |
| | 240 | 1221/0.5 | 23.8 | 2.20 | 28.2 | 2.2 | 32.6 | 2729.6 |
| |
| Model | Spec.(AWG) | Conductor(mm) | Insulation(mm) | Jacket(mm) | Weight
kg/km |
| | | No./Dia | OD | Thickness | OD | Thickness | OD | |
| PV1-F | 4 | 420/0.3 | 6.8 | 0.75 | 8.3 | 0.8 | 9.9 | 254.1 |
| | 6 | 266/0.3 | 5.4 | 0.75 | 6.9 | 0.8 | 8.5 | 173.6 |
| | 8 | 168/0.3 | 4.3 | 0.75 | 5.8 | 0.8 | 7.4 | 120.8 |
| | 10 | 105/0.3 | 3.4 | 0.75 | 4.9 | 0.8 | 6.5 | 85.4 |
| | 12 | 48/0.3 | 2.4 | 0.75 | 3.9 | 0.8 | 5.5 | 60.6 |
| | 14 | 41/0.3 | 1.9 | 0.75 | 3.4 | 0.8 | 5 | 45.0 |
| Two Cores Photovoltaic Cables |
| Model | Spec.(AWG) | Conductor(mm) | Insulation(mm) | Jacket(mm) | Weight
kg/km |
| No./Dia | OD | Thickness | OD | Thickness | OD |
| PV1-F/Round | 2*1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 1.00 | 8.20 | 98.6 |
| PV1-F/Round | 2*2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 1.00 | 9.20 | 131.2 |
| PV1-F/Round | 2*4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 1.00 | 10.20 | 171.0 |
| PV1-F/Round | 2*6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 1.00 | 11.40 | 225.8 |
| PV1-F/Flat | 2*1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.7*9.5 | 76.2 |
| PV1-F/Flat | 2*2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 0.80 | 5.2*10.5 | 100.4 |
| PV1-F/Flat | 2*4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.7*11.5 | 130.7 |
| PV1-F/Flat | 2*6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.3*12.7 | 172.7 |
(All cable specifications can be also customized.)
4. Packing: Simple roll, plastic/wooden drum, wooden-steel drum, or as customer's request.
Port of shippment: Qingdao, Shanghai, Ningbo, or as request.
5. About Asian Sun Group:
1). Established in 2006 with registered capital 410 million RMB.
2). A group with seven subsidiary companies.
3). Factory about 200,081 square meters.
4). More than 800 employees including 120 technical and management staff.
5). Main products: Solar cable
Electric wire
AAC(all aluminum conductor)
ACSR(aluminum conductor steel reinforced)
ABC(aerial bundle cable)
Power cable
6). OEM&ODM are acceptable.
6. After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
7. FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get
the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is
free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready
for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days.
You can use your own express account orprepay us if you do not have an account.
(4).What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most
convenient or cost effective for you.
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
