Shandong New Luxing Cable Co., Ltd. >> Electrical PVC Insulated Cable Wire

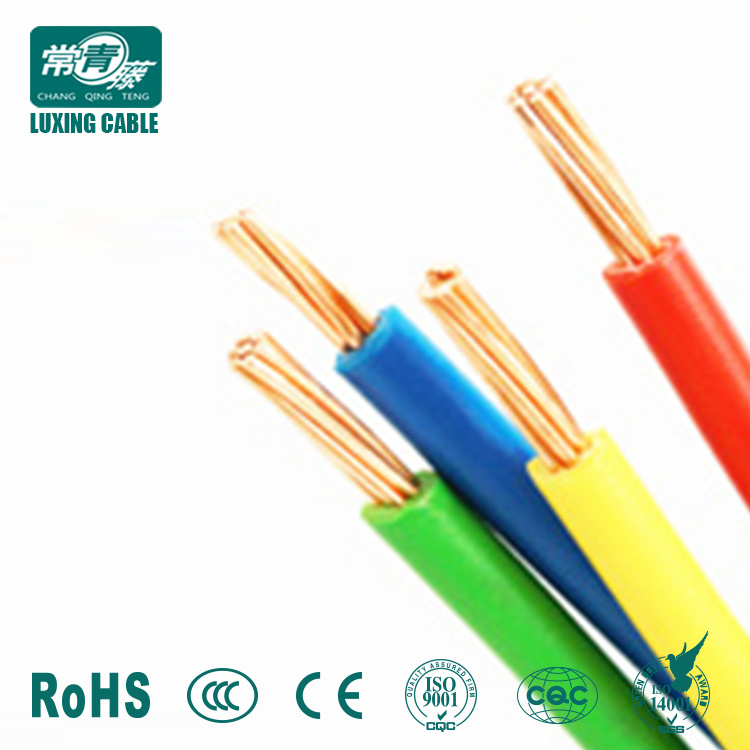

Electrical PVC Insulated Cable Wire

Electrical PVC Insulated Cable Wire
Price: US $ 0.1-1/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: House Building Wire
Product Name: Low Voltage 450/750V PVC Solid Copper Wire Cable
Rated Voltage: 300/500V 450/750V
Conductor: Copper / Aluminum
Insulation: PVC / XLPE
Certificates: ISO CCC Ce RoHS
Origine: Shandong China
Color: Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ: 100 Meter

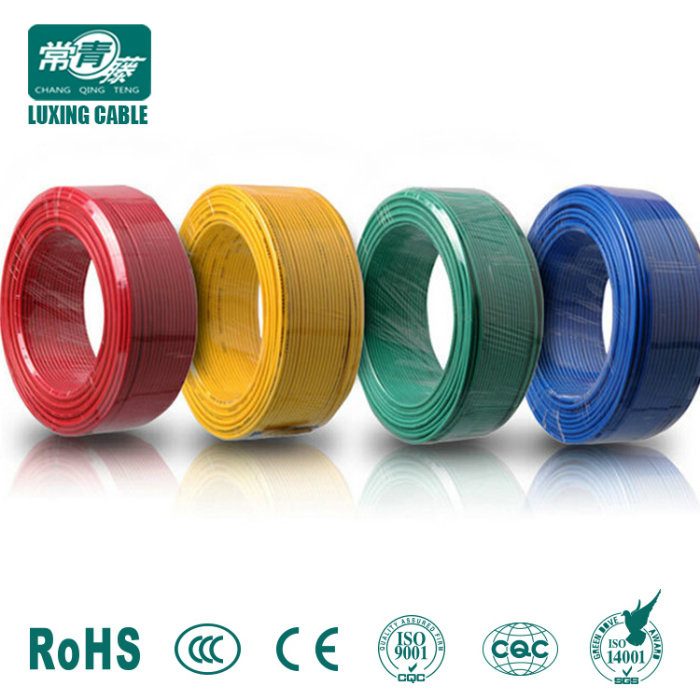

Packaging: 100 Meter Per Roll
Shipping: by Sea, by Train, by Air
Type: Insulated
Conductor Material: Copper
Insulation Material: PVC
Certification: GB/T Standard
Conductor Type: Solid / Stranded
Application: Fixed Wire
Sheath Material: Non
Range Of Application: Lsoh / Flame -Retardant
Brand: Chanong Qing Teng

Product Description

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical Data

Rated voltage:300/500 V, 300/300V, 450/750V

Max. Conductor Temp. in normal use: 70°C or 90°C



Certificates

CE, RoHS, CCC, KEMA and more others at request



Code IEC

Voltage

Products Name

Construction

60227 IEC 01

450/750V

Single-core non-sheathed cable

with rigid conductor
for general purposes

Cl.1 Solid Copper Conductor or Cl.2

Stranded Copper Conductor, PVC/C Insulation

60227 IEC 02

450/750V

Single-core non-sheathed cable

with flexible conductor
for general purposes

Cl.5 Flexible Stranded Copper Conductor,

 PVC/C Insulation

60227 IEC 05

300/500V

Single-core non-sheathed cable

with solid conductor for internal wiring
for
 a conductor temperature of 70 °C

Cl.1 Solid Copper Conductor, PVC/C Insulation

60227 IEC 06

300/500V

Single-core non-sheathed cable

with flexible conductor for internal wiring for

 a conductor temperature of 90 °C

Cl.5 Flexible Stranded Copper Conductor,

PVC/C Insulation

60227 IEC 07

300/500V

Single-core non-sheathed cable

with solid conductor for internal wiring for

a conductor temperature of 90 °C

Cl.1 Solid Copper Conductor, PVC/E Insulation

60227 IEC 08

300/500V

Single-core non-sheathed cable

with flexible conductor for internal wiring for

a conductor temperature of 90 °C

Cl.5 Flexible Stranded Copper Conductor,

PVC/E Insulation

60227 IEC 10

300/500V

Light PVC Sheathed Cable

Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper

Conductor, PVC/C Insulation, PVC/ST5 Sheathed

60227 IEC 52

300/300V

Light PVC Sheathed Cord

Cl.5 Flexible Stranded Copper Conductor,

PVC/D Insulation, PVC/ST5 Sheathed

60227 IEC 53

300/500V

Ordinary PVC Sheathed Cord

Cl.5 Flexible Stranded Copper Conductor,

PVC/D Insulation, PVC/ST5 Sheathed



Details of Transaction

1) Minimum order quantity: 10 kilometers at least

2) Price: FOB or CIF at any port in China

3) Payment: 30% down payment, balance against B/L copy

4) Lead Time: within 20 days

5) Packing: 100m or 500m in bag, box or drum

6) Sample: Free sample is available for you

7) Customized  Service: can print your logo or brand name on cable

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
