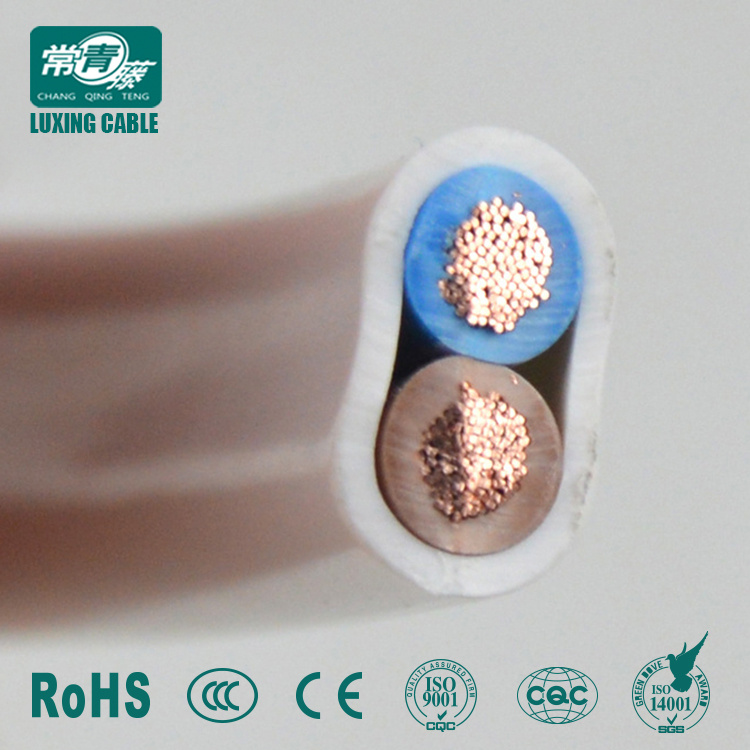

Electrical Wire Supply/ Copper Electrical Wire/ Fireproof Electrical Wire

Name: Electrical Wire Supply/ Copper Electrical Wire/ Fireproof Electrical Wire
Brand: all-electronics-online.com
SKU: 691260211
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fireproof electrical wire
Product Name:	Fireproof Electrical Wire
Rated Voltage:	300/500V 450/750V
Conductor:	Copper / Aluminum
Insulation:	PVC / XLPE
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	100 Meter Per Roll
Shipping:	by Sea, by Train, by Air
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wire
Sheath Material:	Non
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

Electrical wire supply
Copper electrical wire
Fireproof electrical wire

Standard

PVC insulated wires meet or exceed the following standard :

IEC 60227, BS ,DIN , ASTM , GB5027 standard

Operating Characteristics

450/750V,300/500V,300/300V.

Max. permissible continuous operating temperature of the conductor: 70

The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm

Model	Name
BV	Copper Core PVC Insulation Wire
BLV	Aluminum Core PVC Insulation Wire
BVR	Copper Core PVC Insulation Flexible Wire
BVV	Cu Core PVC Insulation PVC Sheath Round Wire
BVVB	Cu Core PVC Insulation PVC Sheath Flat Wire
BLVVB	Aluminum Core PVC Insulation PVC Sheath Flat Wire
BV-90	Copper Core Heat-resistance 105°c PVC Insulation

Conductor			Insulation thickness	Overall diameter (approx.)	DC resistance at 20°C	Weight (approx.)	Rated Voltage
Norminal area	Structure	Conductor diameter	Insulation thickness	Overall diameter (approx.)	DC resistance at 20°C	Weight (approx.)	Rated Voltage
mm²	No.& diameter of single wire mm	mm	mm	mm	Ohm/km	kg/km	V
0.5	7*0.30	0.9	0.6	2.1	36	10.3	300/500
0.75	7*0.37	1.11	0.6	2.3	24.5	12.9	300/500
1	7*0.42	1.26	0.6	2.5	18.1	16.5	300/500
0.5	7*0.30	0.9	0.7	2.6	36	11.4	450/750
0.75	7*0.37	1.11	0.7	2.7	24.5	14.2	450/750
1	7*0.42	1.26	0.7	2.9	18.1	17.8	450/750
1.5	7*0.52	1.56	0.7	3.2	12.1	23.3	450/750
2	7*0.60	1.8	0.8	3.6	9.42	29.8	450/750
2.5	7*0.67	2.01	0.8	3.8	7.41	35.2	450/750
3	7*0.75	2.25	0.8	4.1	6.1	42.1	450/750
3.5	7*0.80	2.4	0.8	4.2	5.3	46.7	450/750
4	7*0.85	2.55	0.8	4.4	4.61	51.5	450/750
5.5	7*1.00	3	0.8	4.8	3.4	67.6	450/750
6	7*1.04	3.12	0.8	5	3.08	72.3	450/750
7	7*1.12	3.36	1	5.6	2.61	87.2	450/750
8	7*1.20	3.6	1	5.8	2.36	97.9	450/750
10	7*1.35	4.05	1	6.3	1.83	119.8	450/750
Besides above list, we can also provide other size depend on customer's requirement.

SINGLE CORE, GENERAL PURPOSE CABLES
Type	H05V-K
Specification	BS 6004, IEC 227, VDE 0281
Conductor	Solid copper Class-1 to BS 6360
Insulation (Note)	PVC type TI1 to BS 7655
Rated Voltage	300 / 500 V
Note	Optional 85-Degree / 90-Degree / 105-Degree
Area of conductor, mm2	0.5	0.75	1.0
Overall Dia(Max, mm)	2.5	2.7	2.8
Kg/Km (approx)	9	12	15

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Why Choose US?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

Contact US

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
