| Prod Model: |
BV/BVR-033 |
| Copper Material: |
Oxygen-Free Copper (99.9% Purity) |
| Color: |
Black, Red, Blue, Yellow, Green, White |
| Standards: |
IEC 60227, BS 6004, VDE0281, GB/T 5023, Jb/T8734 |
| Voltage: |
300/500V,450/750V |
| Solid Or Flexible: |
Both Ok |
| Company Nature: |
Manufacturer and Trading Company |
| Conductor: |
Annealed Copper Wires, Solid or Stranded |
| Item Name: |
Electrical Wire PVC Insulation BV/Bvr Cable |
| Features: |
Flame Retardance, Fire Resistance |
| Max.Operating Temperature: |
70,90,105 Degree |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Application: |
House, Building, Industry |
| Brand: |
Dayuan |
Product Description
Product Description

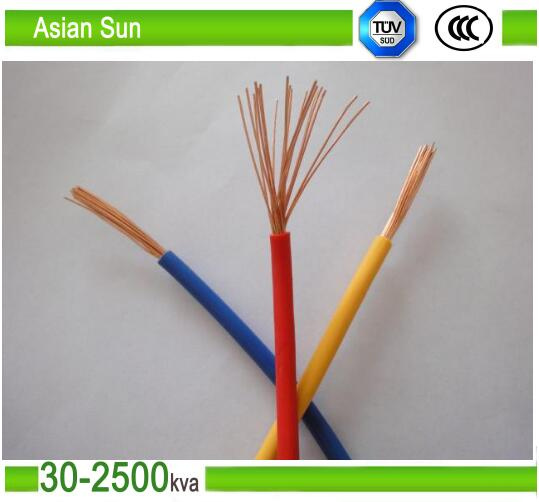

PVC Insulated BV/BVR House Wiring Electrical Cable
Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
| Type | H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR |
| Voltage Rate | 300/500V, 450/750V |
| Range of Nominal cross section: | 0.75 mm2 ~ 630 mm2 |
| Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. |
| Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 |
| Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: PVC
Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request |
| Max. Operating Temperature | 70°C, can be 90°C,105°C as per requirement |
| Packing | 100 meter/roll or as per requirement |
| Production Capacity | 100 kilometer/ day |
| MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size |
| Delivery time | 10~15 working days |
| Remark | The cable can be of flame retardance, fire resistance and other property |
Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.
Parameter of bv/bvr cable
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105 PVC Insulation |
BV cable of Common wire
Kindly note that we can make it as your requirement
BV Cable data 1:
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km |
| Cu | Al | Cu | Al |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.7 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 5000.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
BV/bvr Cable data 2:
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.64 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
All the goods are full meter and working life are 25 years!
