Electricity Cable for Construction

Name: Electricity Cable for Construction
Brand: all-electronics-online.com
SKU: 732571612
Availability: InStock
Rating: 4.8 (21 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	pvc / xlpe power cable

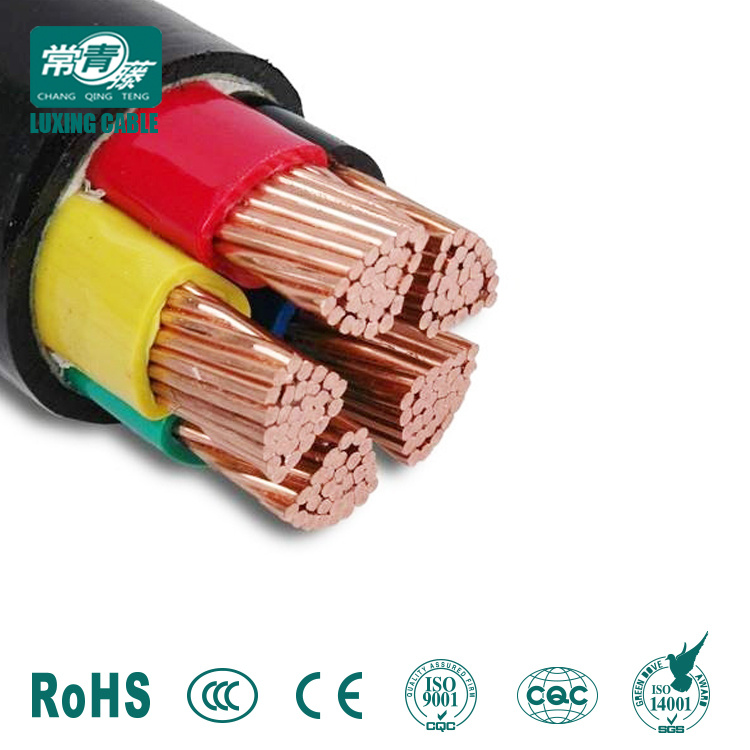

Product Name:	4 Cores 16mm Electric Cable Armoured Power Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE/PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

ITEM NAME : Electricity Cable For Construction

1. SCOPE
This specification covers PVC or XLPE insulated, circular, twin, three or four conductor

armored cables, rated at 0.6/1 KV to international Electrotechnical commission Publication IEC60502-1 for use indoors, outdoors, in cable ducts, in water and for direct burial underground, where severe mechanical stresses are present. These cables have high dielectric strength, an excellent resistance to deformations under high temperature and pressure, and high resistance to ageing, abrasion, moisture, chemicals, acids and oils.

2. CONSTRUCTION
2.1 Conductor
Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
PVC based thermoplastic or XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
2.4 Armor
Galvanized round wires, or flat strips, completely covering the assembly of cores and a counter helix of galvanized steel tape on top; or two layers of steel tape, complying to the applicable requirements of IEC60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.6 Tests
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.

3. TYPES of Power Cable 0.6-1KV XLPE Insulated SWA Steel Wire

Armored Cable:

Armored Cable Type		Low Voltage Armored Power Cable Specification
Copper Core	Aluminum Core	Low Voltage Armored Power Cable Specification
VV22	VLV22	Galvanized Steel Tape Armored Power Cable With PVC Insulation and PVC Sheath
VV23	VLV23	Galvanized Steel Tape Armored Power Cable With PVC Insulation and PE Sheath
VV32	VLV32	Fine Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath
VV33	VLV33	Fine Steel Wire Armored Power Cable With PVC Insulation and PE Sheath
VV42	VLV42	Thick Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath
VV43	VLV43	Thick Steel Wire Armored Power Cable With PVC Insulation and PE Sheath
YJV22	YJLV22	Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC Sheath
YJV23	YJLV23	Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE Sheath
YJV32	YJLV32	Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath
YJV33	YJLV33	Fine Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath
YJV42	YJLV42	Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath
YJV43	YJLV43	Thick Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath

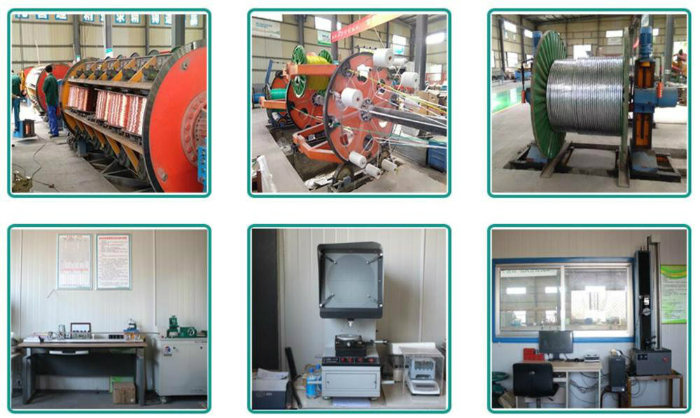

Luxing Factory : our production base

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

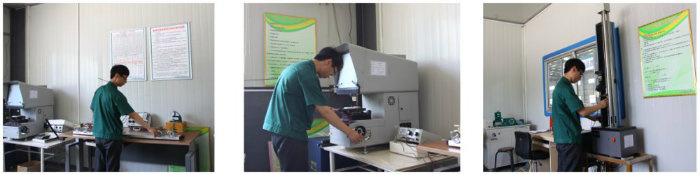

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

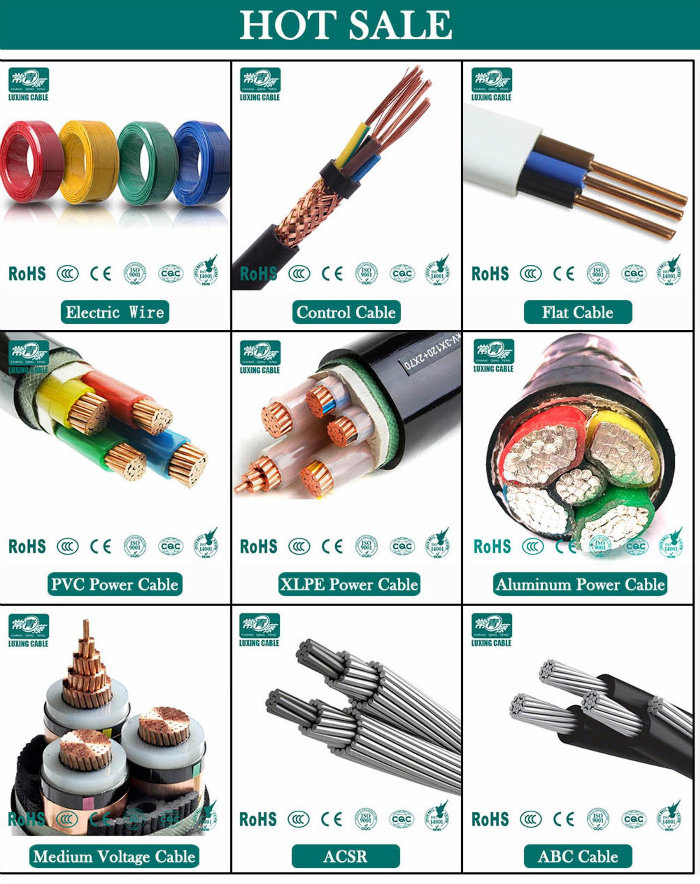

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
