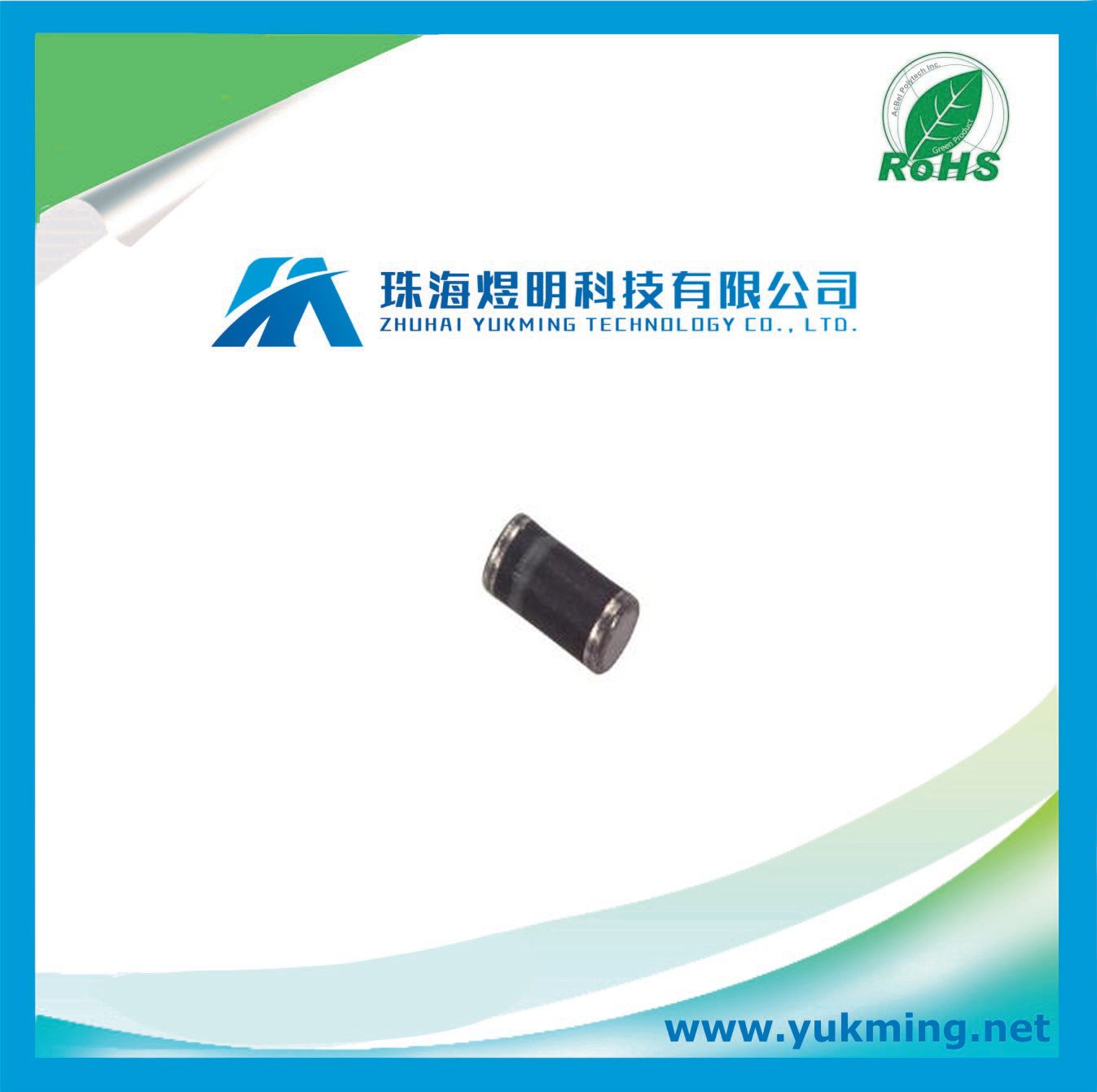

Electronic Component 1.0A Surface Mount Glass Passivated Rectifier Diode

Name: Electronic Component 1.0A Surface Mount Glass Passivated Rectifier Diode
Brand: all-electronics-online.com
SKU: 806309305
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	US $ 0.012/Piece
Min Order:	11500/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL4004
Configuration:	Single
Peak Reverse Repetitive Voltage (V):	400
Maximum Continuous Forward Current (a):	1
Peak Non-Repetitive Surge Current (a):	30
Peak Forward Voltage (V):	1.1
Peak Reverse Current (Ua):	5

Product Description

1.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER

Featues
Glass Passivated Junction
High Current Capability
Low Forward Voltage Drop
High Reliability and Low Leakage
For Surface Mount Application
Plastic Material - UL Flammability
Classification Rating 94V-0

Mechanical data
Case: MELF, Plastic
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: Cathode band
Approx Weight: 0.25 grams
Mounting Position: Any

Specifications
EU RoHS Compliant
Configuration Single
Peak Reverse Repetitive Voltage (V) 400
Maximum Continuous Forward Current (A) 1
Peak Non-Repetitive Surge Current (A) 30
Peak Forward Voltage (V) 1.1
Peak Reverse Current (uA) 5
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) -55 to 150
Package Diameter (mm) 2.64(Max)
Mounting Surface Mount
Package Length (mm) 5.2(Max)
PCB changed 2
Standard Package Name MELF
Supplier Package MELF
Pin Count 2
Lead Shape No Lead
