Electronic Component Diode for PCB Assembly

Name: Electronic Component Diode for PCB Assembly
Brand: all-electronics-online.com
SKU: 806635335
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 0.035/Piece
Min Order:	139860/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSE1PJ
Very Low Profile -:	Typical Height of 0.6

Product Description

FEATURES
• Very low profile - typical height of 0.65 mm
• Ideal for automated placement
• Oxide planar chip junction
• Low forward voltage drop, low leakage
current
• ESD capability
• Meets MSL level 1, per J-STD-020,
LF maximum peak of 260 °C
• AEC-Q101 qualified
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
• Halogen-free according to IEC 61249-2-21 definition

MECHANICAL DATA

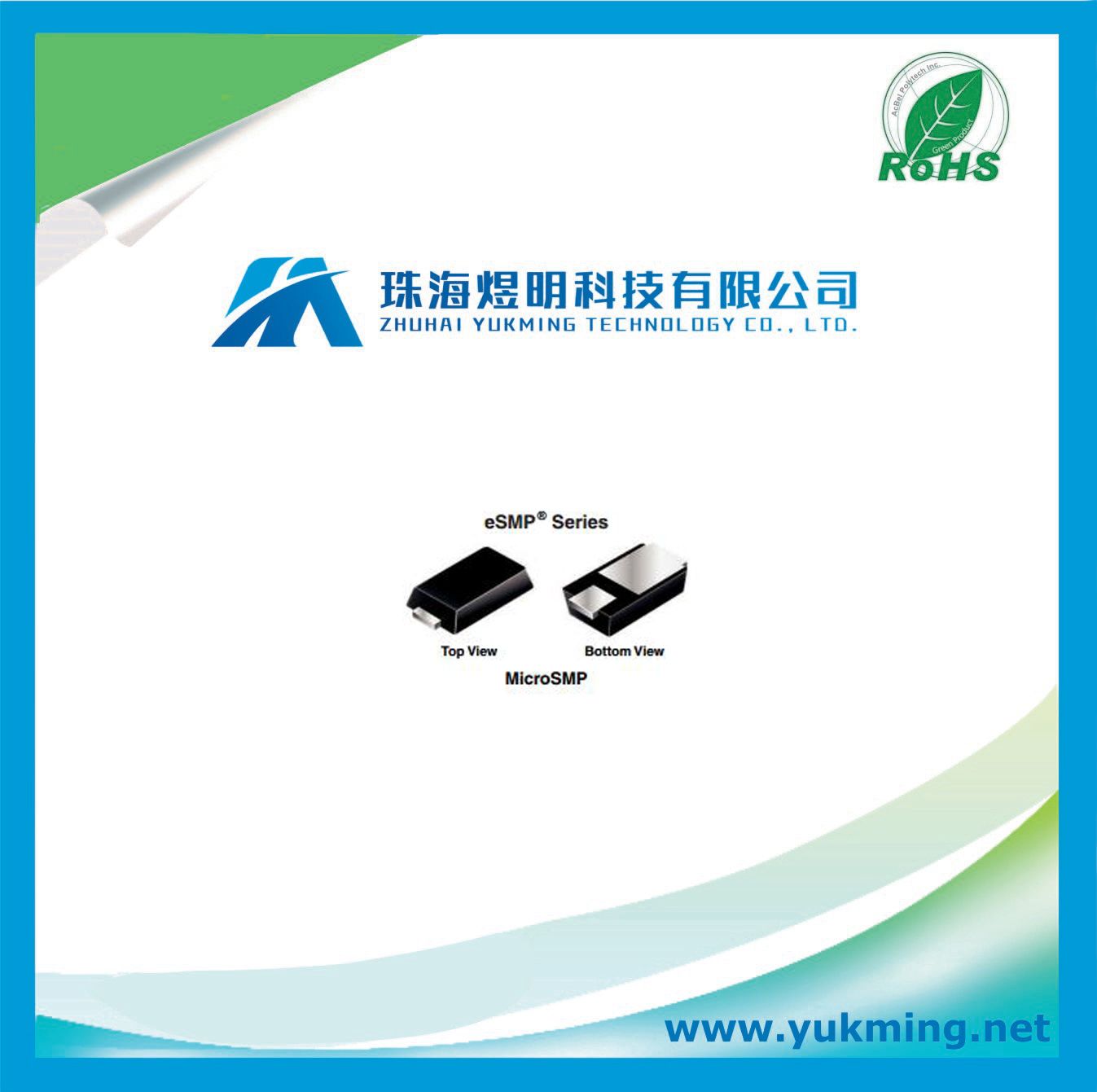

Case: MicroSMP
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS compliant, and
automotive grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix
meets JESD 201 class 2 whisker test

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
