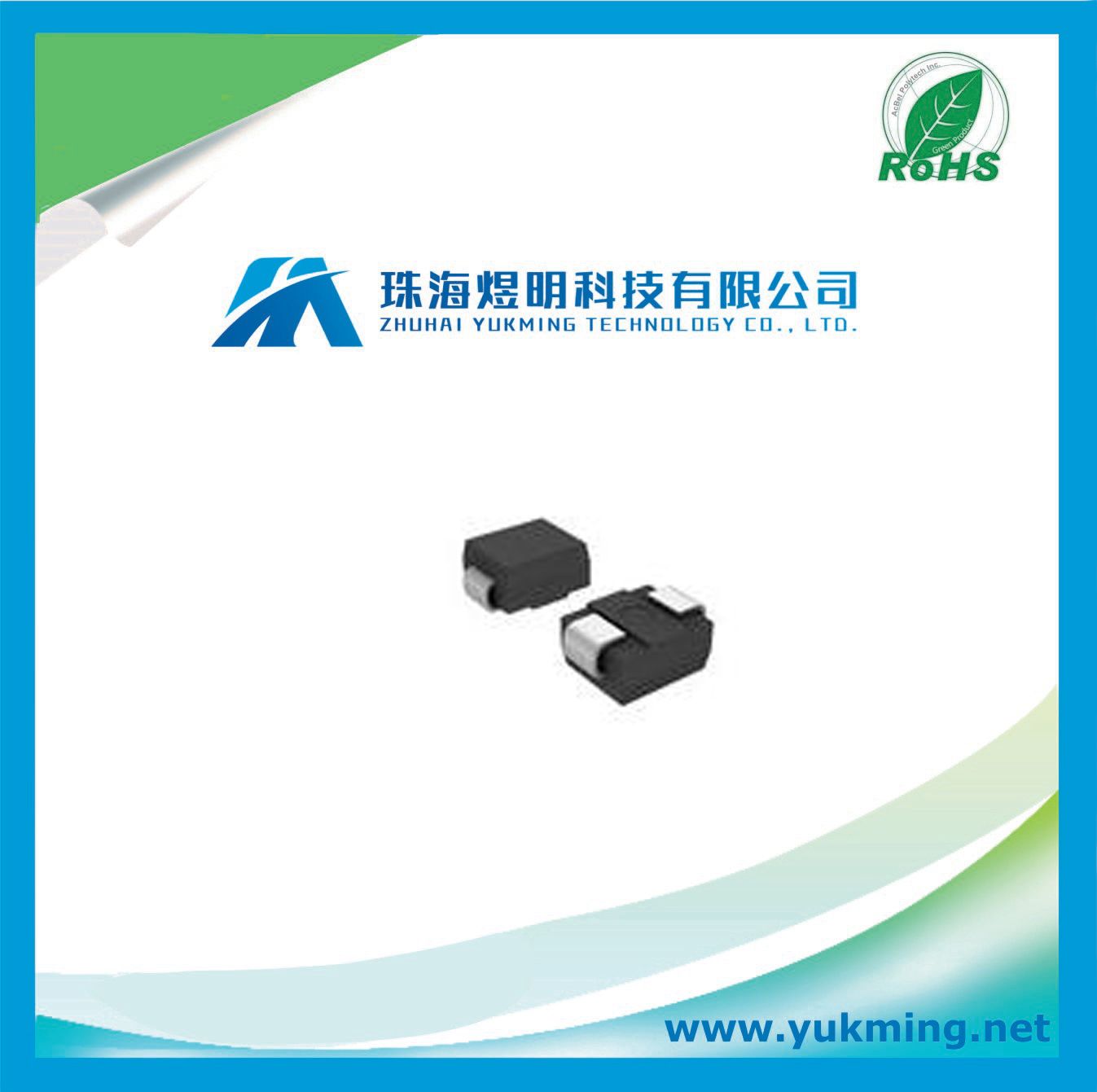

Electronic Component Diode Tvs Single Diode

Name: Electronic Component Diode Tvs Single Diode
Brand: all-electronics-online.com
SKU: 805545495
Availability: InStock
Rating: 4.4 (59 reviews)

Price:	US $ 0.0024/Piece
Min Order:	7200/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMAJ12CA
Maximum Reverse Stand-off Voltage (V):	12
Maximum Reverse Leakage Current (Ua):	1
Maximum Clamping Voltage (V):	19.9
Maximum Peak Pulse Current (a):	20.1
Minimum Breakdown Voltage (V):	13.3
Test Current (Ma):	1
Peak Pulse Power Dissipation (W):	400(Min)

Product Description

MANUFACTURER
Bourns

PRODUCT CATEGORY
TVS

DESCRIPTION
Diode TVS Single Bi-Dir 12V 400W 2-Pin SMA

Specifications
EU RoHS Compliant
Direction Type Bi-Directional
Maximum Reverse Stand-Off Voltage (V) 12
Maximum Reverse Leakage Current (uA) 1
Maximum Clamping Voltage (V) 19.9
Maximum Peak Pulse Current (A) 20.1
Minimum Breakdown Voltage (V) 13.3
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 400(Min)
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -55 to 150
Number of Elements per Chip 1
ESD Protection Yes
Mounting Surface Mount
Package Height (mm) 2.42(Max)
Package Length (mm) 4.57(Max)
Package Width (mm) 2.92(Max)
PCB changed 2
Standard Package Name DO-214-AC
Supplier Package SMA
Pin Count 2
Lead Shape J-Lead
