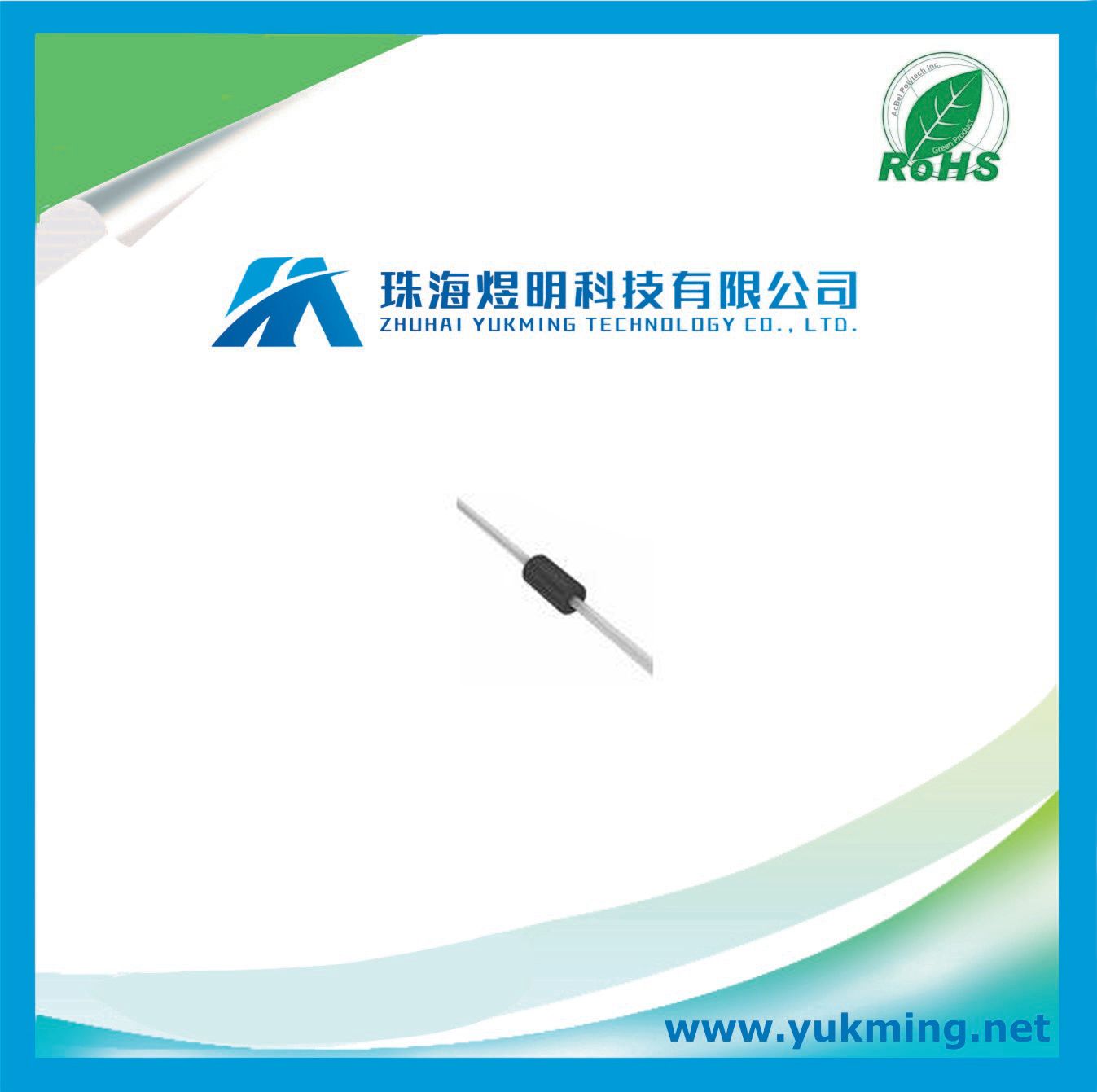

Electronic Component Diode Tvs Single for PCB Board

Prod Model:	P6KE120A
Maximum Reverse Stand-off Voltage (V):	120
Maximum Reverse Leakage Current (Ua):	1
Maximum Clamping Voltage (V):	165
Maximum Peak Pulse Current (a):	3.7
Minimum Breakdown Voltage (V):	114
Test Current (Ma):	1
Peak Pulse Power Dissipation (W):	600
Operating Temperature Range:	-55 to 175 Degree C
Shape:	Do-204AC
Encapsulation Structure:	Do-204AC

Product Description

MANUFACTURER
Littelfuse

PRODUCT CATEGORY
TVS

DESCRIPTION
Diode TVS Single Uni-Dir 102V 600W 2-Pin DO-15 T/R

If you're worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this P6KE120A TVS diode from Littelfuse is perfect for you. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device's maximum clamping voltage is 165 V and minimum breakdown voltage is 114 V. Its maximum leakage current is 1 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Configuration Single
Maximum Reverse Stand-Off Voltage (V) 102
Maximum Reverse Leakage Current (uA) 1
Maximum Clamping Voltage (V) 165
Maximum Peak Pulse Current (A) 3.7
Minimum Breakdown Voltage (V) 114
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Operating Junction Temperature (°C) -55 to 175
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Yes
Package Diameter (mm) 3.6(Max)
Mounting Through Hole
Package Length (mm) 7.6(Max)
PCB changed 2
Standard Package Name DO-204-AC
Supplier Package DO-15
Pin Count 2
Lead Shape Through Hole
