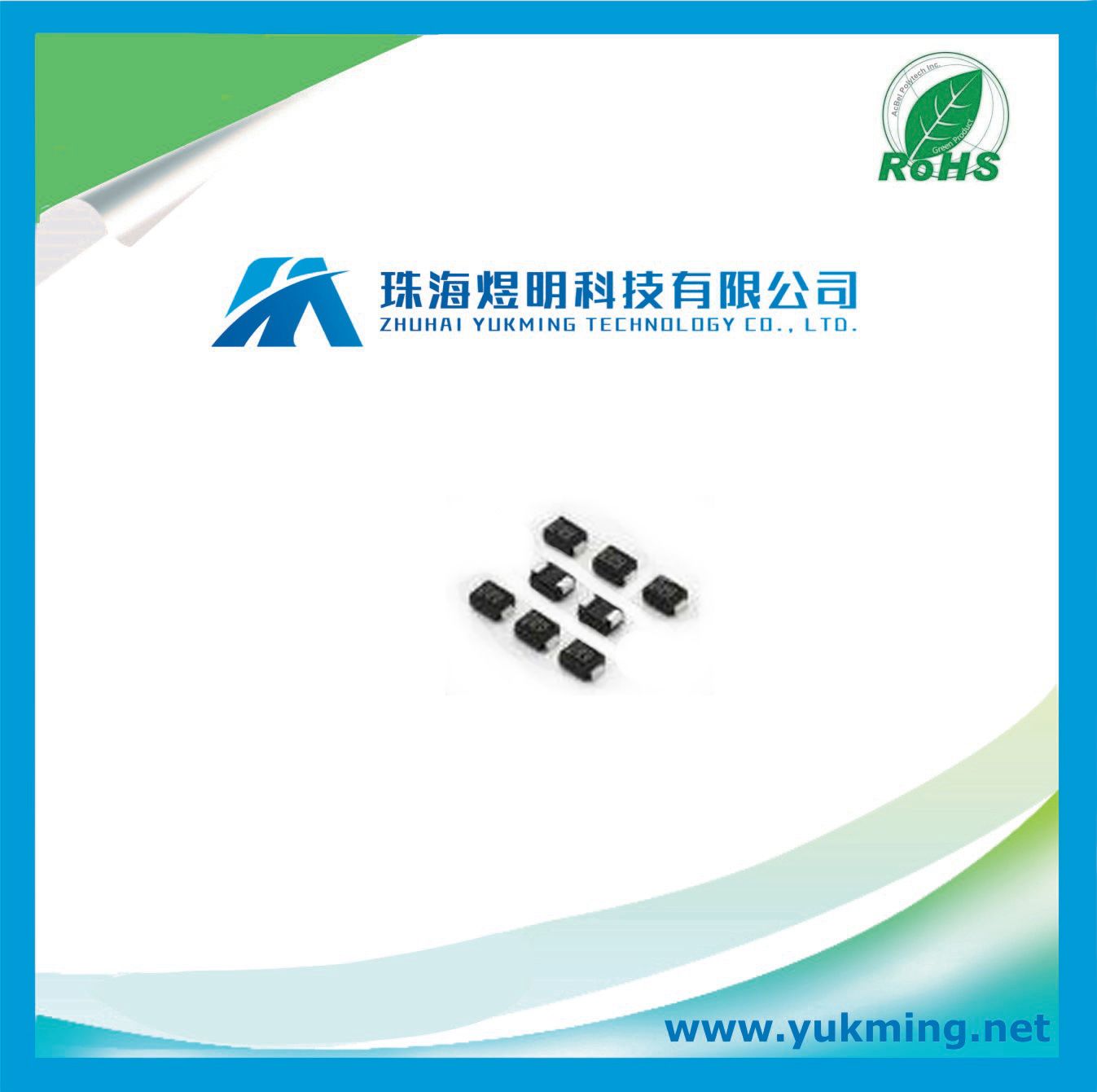

Electronic Component Diode Tvs Single

Prod Model:	P6SMB200A
Direction Type:	Uni-Directional
Maximum Reverse Stand-off Voltage (V):	171
Maximum Reverse Leakage Current (Ua):	1
Maximum Clamping Voltage (V):	274
Maximum Peak Pulse Current (a):	2.2
Minimum Breakdown Voltage (V):	190

Product Description

MANUFACTURER
Littelfuse

PRODUCT CATEGORY
TVS

DESCRIPTION
Diode TVS Single Uni-Dir 171V 600W 2-Pin SMB T/R

Surges can be a costly problem, avoid the pain and suffering by implementing this P6SMB200A TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device's maximum clamping voltage is 274 V and minimum breakdown voltage is 190 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 171
Maximum Reverse Leakage Current (uA) 1
Maximum Clamping Voltage (V) 274
Maximum Peak Pulse Current (A) 2.2
Minimum Breakdown Voltage (V) 190
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -55 to 150
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Yes
Mounting Surface Mount
Package Height (mm) 2.11(Max)
Package Length (mm) 4.57(Max)Package Width (mm) 3.94(Max)
PCB changed 2
Standard Package Name DO-214-AA
Supplier Package SMB
Pin Count 2
Lead Shape J-Lead
