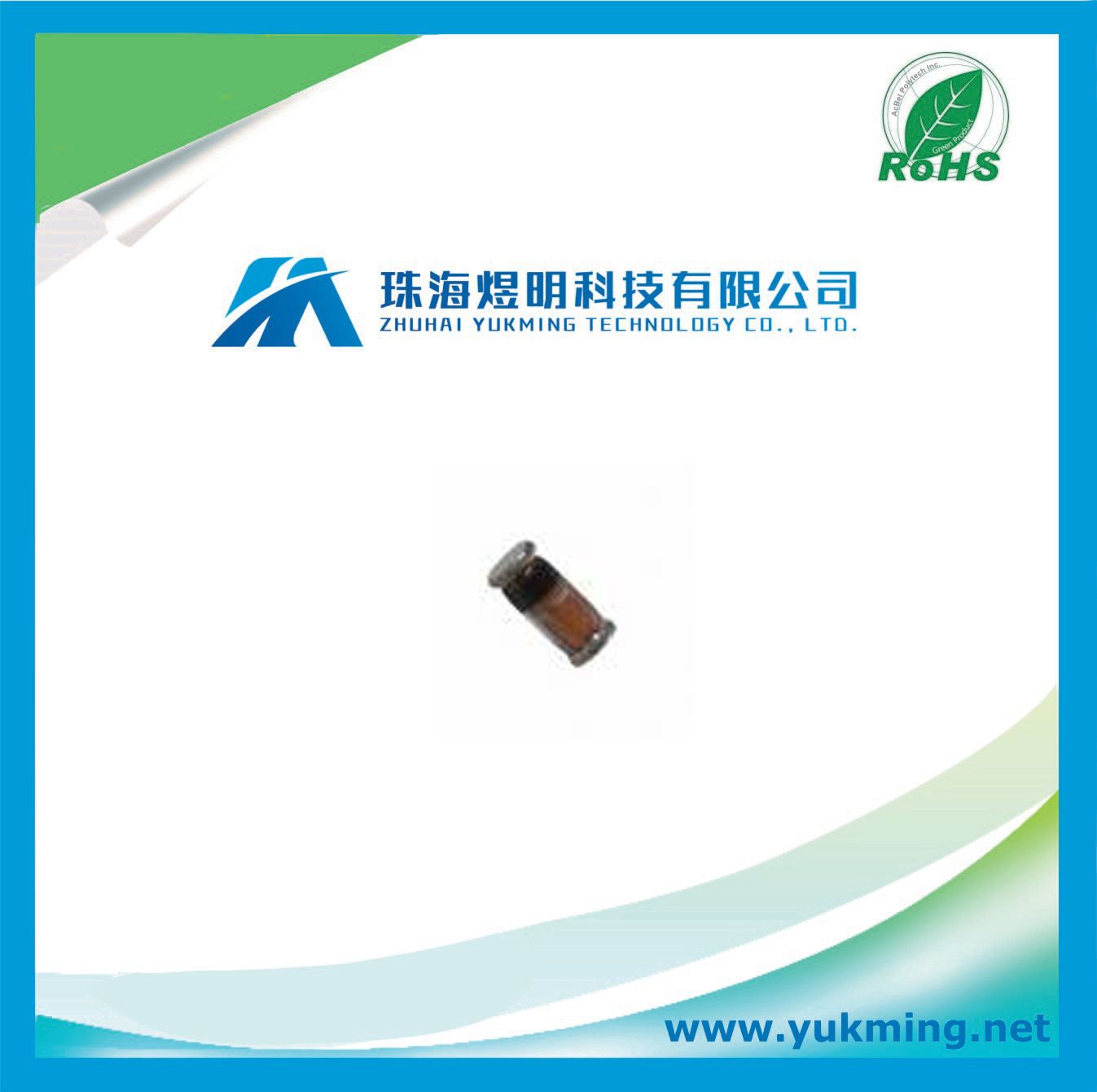

Electronic Component Diode Zener Single Voltage Redulator

Name: Electronic Component Diode Zener Single Voltage Redulator
Brand: all-electronics-online.com
SKU: 805542905
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	US $ 0.0056/Piece
Min Order:	7500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZV55C5V6
Test Current (Ma):	5
Nominal Zener Voltage (V):	5.6
Maximum Zener Impedance (Ohm):	40
Zener Voltage Tolerance:	5%
Maximum Reverse Leakage Current (Ua):	1
Maximum Power Dissipation (MW):	500
Application:	Electronic Products
Encapsulation Structure:	SOD80

Product Description

MANUFACTURER
ST Semiconductors

PRODUCT CATEGORY
Zener

DESCRIPTION
Diode Zener Single 5.6V 5% 500mW 2-Pin Mini-MELF T/R

Use a voltage regulator BZV55-C5V6,115 zener diode from ST Semiconductors that will work for backward currents. Its maximum power dissipation is 500 mW. Its maximum leakage current is 1 μA. Its test current is 5 mA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C. This zener device has a nominal voltage of 5.6 V and a voltage tolerance of 5%. It is made in a single configuration.

Specifications
EU RoHS Compliant
Type Voltage Regulator
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 5.6
Maximum Zener Impedance (Ohm) 40
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 1
Maximum Power Dissipation (mW) 500
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Packaging Tape and Reel
Package Diameter (mm) 1.6(Max)
Mounting Surface Mount
Package Length (mm) 3.7(Max)
PCB changed 2
Standard Package Name SOD-80
Supplier Package Mini-MELF
Pin Count 2
Lead Shape No Lead
