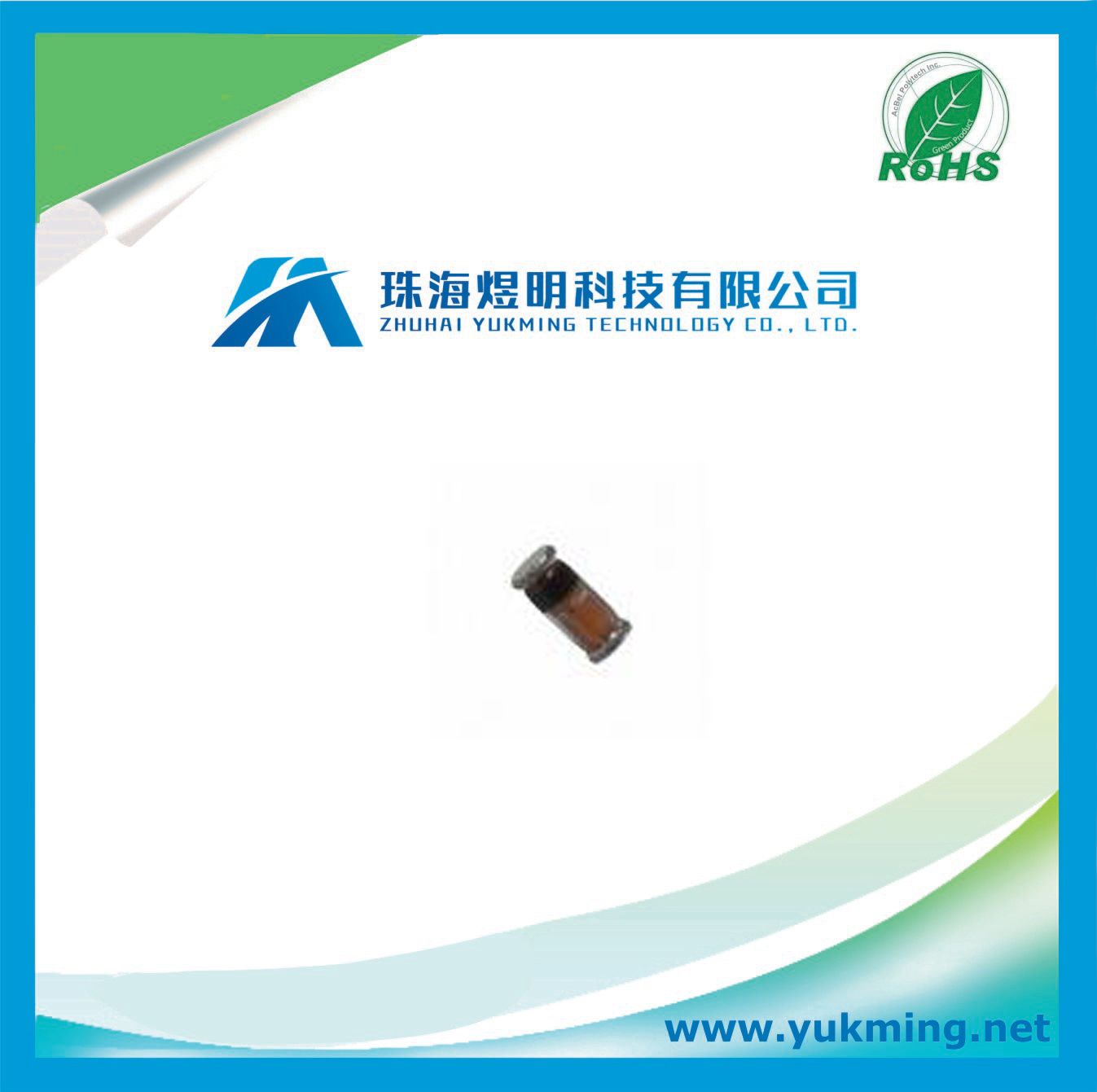

Electronic Component Diode Zener Single Voltage Regulator

Prod Model:	BZV55C12
Nominal Zener Voltage (V):	12.05
Maximum Zener Impedance (Ohm):	25
Zener Voltage Tolerance:	5%
Maximum Reverse Leakage Current (Ua):	0.1
Maximum Power Dissipation (MW):	500
Operation Temperature Range:	-65~200 Degree. C
Application:	Electronic Products
Encapsulation Structure:	SOD80

Product Description

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Zener

DESCRIPTION
Diode Zener Single 12.05V 5% 500mW 2-Pin Mini-MELF T/R

The best way to operate a diode in the reverse-breakdown region in your circuit is by using a voltage regulator BZV55-C12,115 zener diode from NXP Semiconductors. Its maximum power dissipation is 500 mW. Its test current is 5 mA. Its maximum leakage current is 0.1 μA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C. It is made in a single configuration. This zener device has a nominal voltage of 12.05 V and a voltage tolerance of 5%.

Specifications
EU RoHS Compliant
Type Voltage Regulator
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 12.05
Maximum Zener Impedance (Ohm) 25
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 0.1
Maximum Power Dissipation (mW) 500
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Packaging Tape and Reel
Package Diameter (mm) 1.6(Max)
Mounting Surface Mount
Package Length (mm) 3.7(Max)
PCB changed 2
Standard Package Name SOD-80
Supplier Package Mini-MELF
Pin Count 2
Lead Shape No Lead
