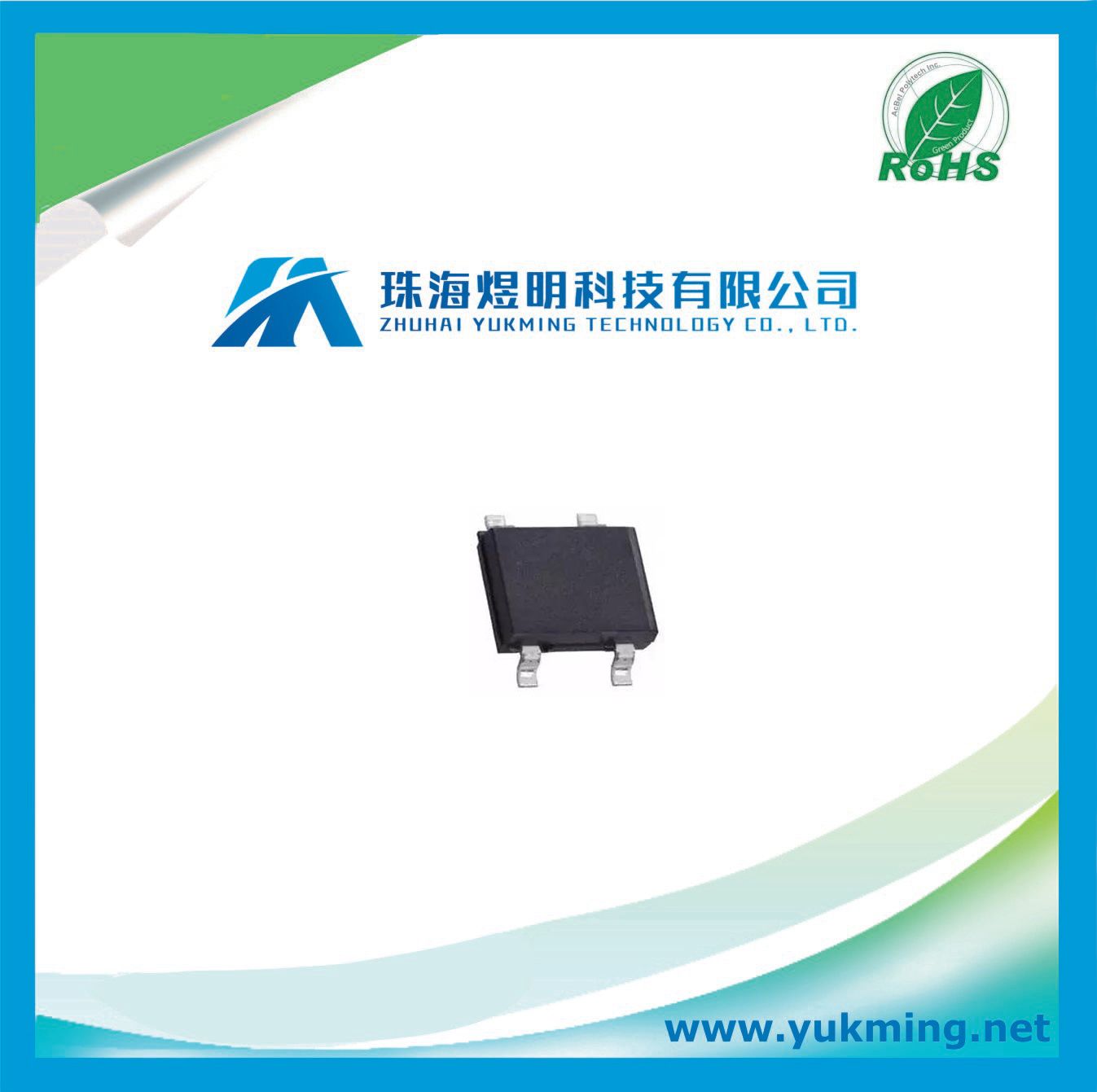

Name: Electronic Component Diodes Bridge Rectifier Diode for PCB Board
Brand: all-electronics-online.com
SKU: 807498005
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	US $ 0.062/Piece
Min Order:	4500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DF1506S-T-F
Diode Type:	Single Phase
Part Status:	Active
Voltage - Peak Reverse (Max):	600V
Current - DC Forward (If) (Max):	1.5A
Mounting Type:	Surface Mount
Operating Junction Temperature (°c):	-65 to 150 Degree C

Product Description

Categories	Discrete Semiconductor Products
Categories	Diodes - Bridge Rectifiers
Manufacturer	Diodes Incorporated
Packaging	Digi-Reel
Part Status	Active
Diode Type	Single Phase
Voltage - Peak Reverse (Max)	600V
Current - DC Forward (If) (Max)	1.5A
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Operating Temperature	-65 degree C ~ 150 degree C (TJ)
Supplier Device Package	DF-S

RECT BRIDGE GPP 600V 1.5A DF-S

Features and benefits
• Glass Passivated Die Construction
• Low Forward Voltage Drop, High Current Capability
• Surge Overload Rating to 50A Peak
• Designed for Surface Mount Applications
• UL Listed Under Recognized Component Index, File Number
E94661
• Lead Free Finish, RoHS Compliant (Date Code 0532+)

Mechanical data
• Case: DF-S
• Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Tin. Solder Plated Leads, Solderable per
MIL-STD-202, Method 208
• Polarity: As Marked on Case
• Marking: Type Number
• Weight: 0.38 grams (approximate)
