Electronic Component Gate Drive Optocoupler Transistor

Name: Electronic Component Gate Drive Optocoupler Transistor
Brand: all-electronics-online.com
SKU: 808124205
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 2-5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

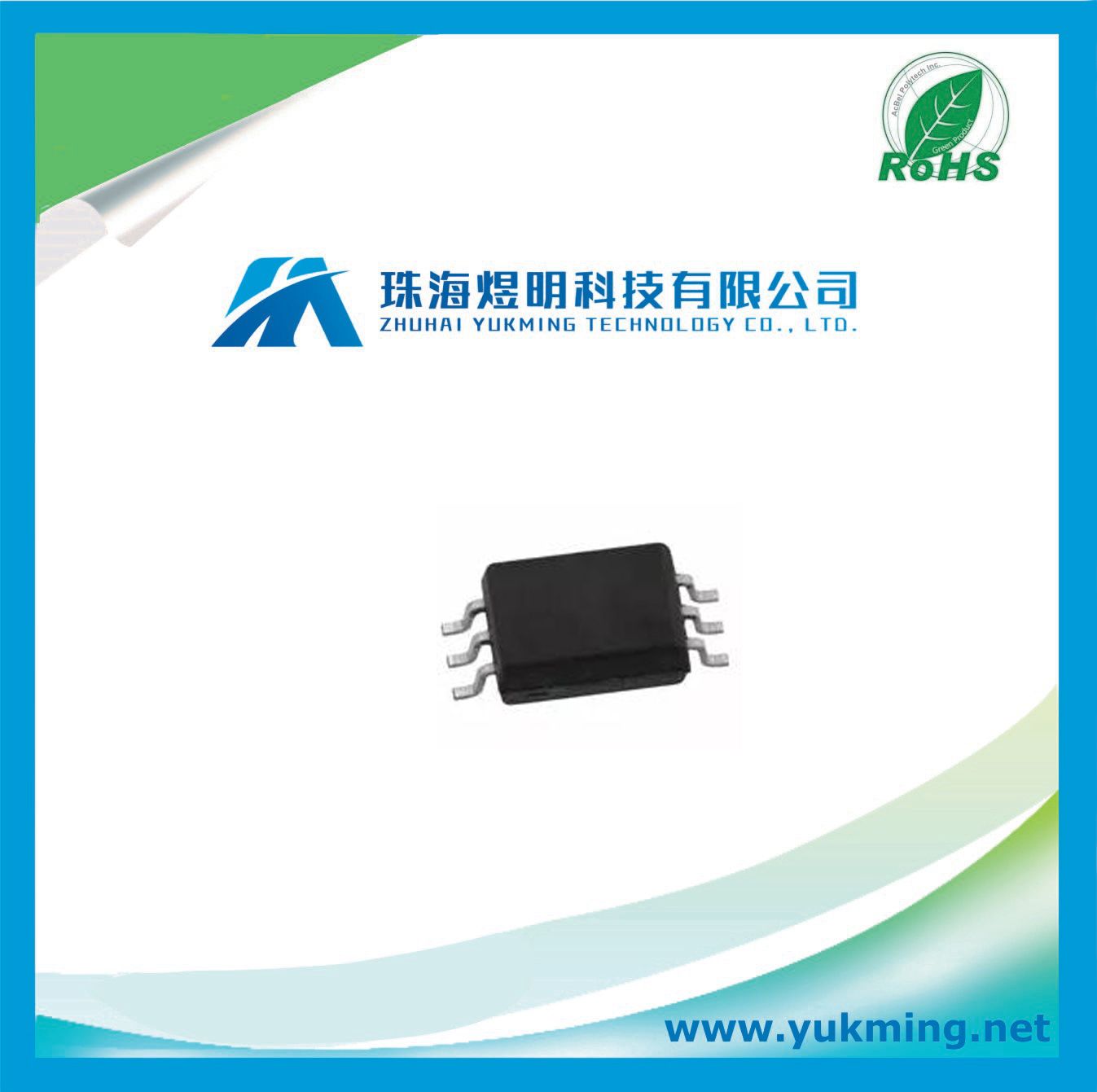

Prod Model:	ACPL-P341-500/000E
Number Of Channels Per Chip:	1
Minimum Isolation Voltage (Vrms):	3750
Operating Temperature Range:	-40 to 105 Degree C
Part Status:	Active
Technology:	Optical Coupling
Number Of Channels:	1
Voltage - Isolation:	3750vrms
Common Mode Transient Immunity (Min):	35kv/Us
Pulse Width Distortion (Max):	70ns
Current - Output High, Low:	2.5A

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

3.0 Amp Output Current IGBT Gate Drive Optocoupler

Description
The ACPL-P341/W341 contains an AlGaAs LED, which is
optically coupled to an integrated circuit with a power
output stage. This optocoupler is ideally suited for driving
power IGBTs and MOSFETs used in motor control inverter
applications. The high operating voltage range of the
output stage provides the drive voltages required by gate
controlled devices. The voltage and high peak output
current supplied by this optocoupler make it ideally
suited for direct driving IGBT with ratings up to 1200 V
/ 100 A. For IGBTs with higher ratings, this optocoupler
can be used to drive a discrete power stage which drives
the IGBT gate. The ACPL-P341 and ACPL-W341 have the
highest insulation voltage of VIORM = 891Vpeak and VIORM
= 1140 Vpeak respectively in the IEC/ EN/DIN EN 60747-5-2.

Categories	Isolators
Categories	Isolators - Gate Drivers
Manufacturer	Broadcom Limited
Packaging	Tape & Reel (TR)
Part Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	35kV/us
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	43ns, 40ns
Current - Output High, Low	2.5A, 2.5A
Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	15 V ~ 30 V
Operating Temperature	-40 deg C ~ 105 deg C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SO Stretched
Approvals	CSA, UR
