Zhuhai Yukming Technology Co., Ltd. >> Electronic Component General-Purpose Zener Diode for PCB Assembly

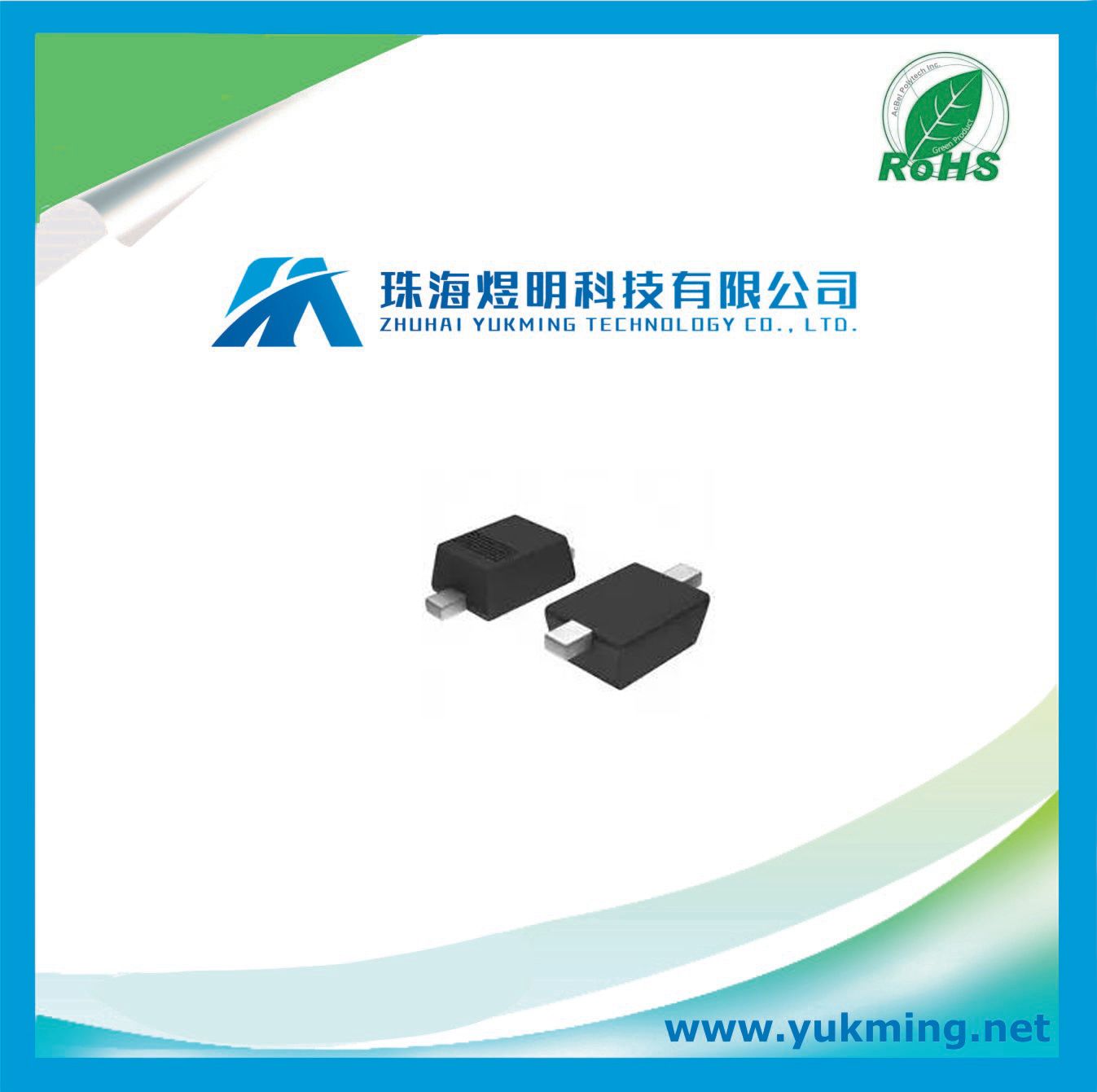

Electronic Component General-Purpose Zener Diode for PCB Assembly

Electronic Component General-Purpose Zener Diode for PCB Assembly
Price: US $ 0.06/Piece
Min Order: 3000/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: BZX84J-C33
Type: Zener Diode
Configuration: Single
Voltage - Zener (Nom) (Vz): 33V
Tolerance: 5%
Power (Max): 500MW
Zener Voltage Tolerance: 5%
Shape: SOD323

Product Description

CategoriesDiscrete Semiconductor Products
Diodes - Zener - Single
ManufacturerNXP USA Inc.
Packaging Cut Tape (CT)
Part StatusActive
Voltage - Zener (Nom) (Vz)33V
Tolerance±5%
Power - Max550mW
Impedance (Max) (Zzt)40 Ohm
Current - Reverse Leakage @ Vr50nA @ 23.1V
Voltage - Forward (Vf) (Max) @ If1.1V @ 100mA
Operating Temperature-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-90, SOD-323F
Supplier Device PackageSOD-323F

General description
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead
Surface-Mounted Device (SMD) plastic package.

Features
Non-repetitive peak reverse power
dissipation: ≤ 40 W
Wide working voltage range: nominal
2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Low differential resistance
Two tolerance series: ±2 % and ±5 %
Small plastic package suitable for
surface-mounted design

Applications
General regulation functions
