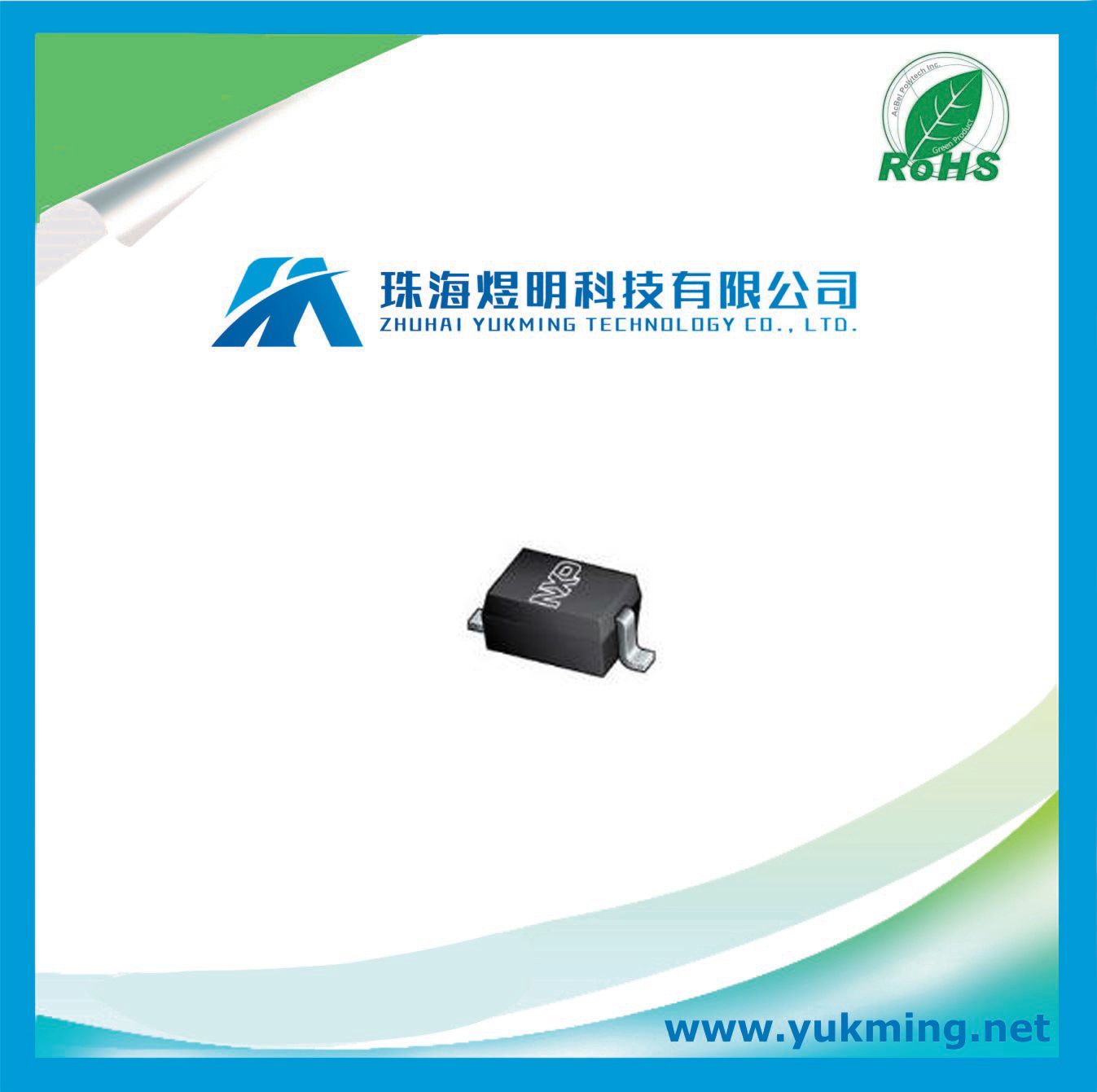

Electronic Component Low Capacitance Bidirectional ESD Protection Diode

Prod Model:	PESD15VL1BA
Maximum Working Voltage (V):	15
Maximum Clamping Voltage (V):	44
Maximum Leakage Current (Ua):	0.05
Capacitance Value (PF):	16
Number Of Elements Per Chip:	1
Operating Temperature Range:	-65 to 150 Degree C
Encapsulation Structure:	SOD323

Product Description

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
ESD Suppressors

DESCRIPTION
ESD Suppressor TVS 15V Automotive 2-Pin SOD-323 T/R

Protect users and systems from electrostatic discharge with this tvs PESD15VL1BA,115 ESD protection device from NXP Semiconductors. This device's maximum clamping voltage is 44 V. This ESD diode has a maximum ESD protection device voltage of 30@Contact Disc/10@HBM kV. This ESD diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 16 pF. It is made in a single configuration.

Specifications

EU RoHS Compliant
Configuration Single
Type TVS
Direction Type Bi-Directional
Maximum Working Voltage (V) 15
Maximum ESD Protection Voltage (kV) 30@Contact Disc/10@HBM
Maximum Clamping Voltage (V) 44
Maximum Leakage Current (uA) 0.05
Capacitance Value (pF) 16
Number of Elements per Chip 1
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) 150
Maximum Breakdown Voltage (V) 20.3
Test Current (mA) 5
Peak Pulse Power Dissipation (W) 200
Maximum Peak Pulse Current (A) 5
Minimum Breakdown Voltage (V) 17.1
Mounting Surface Mount
Package Height (mm) 1.05(Max)
Package Length (mm) 1.8(Max)
Package Width (mm) 1.35(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-323
Pin Count 2
Lead Shape Gull-wing
