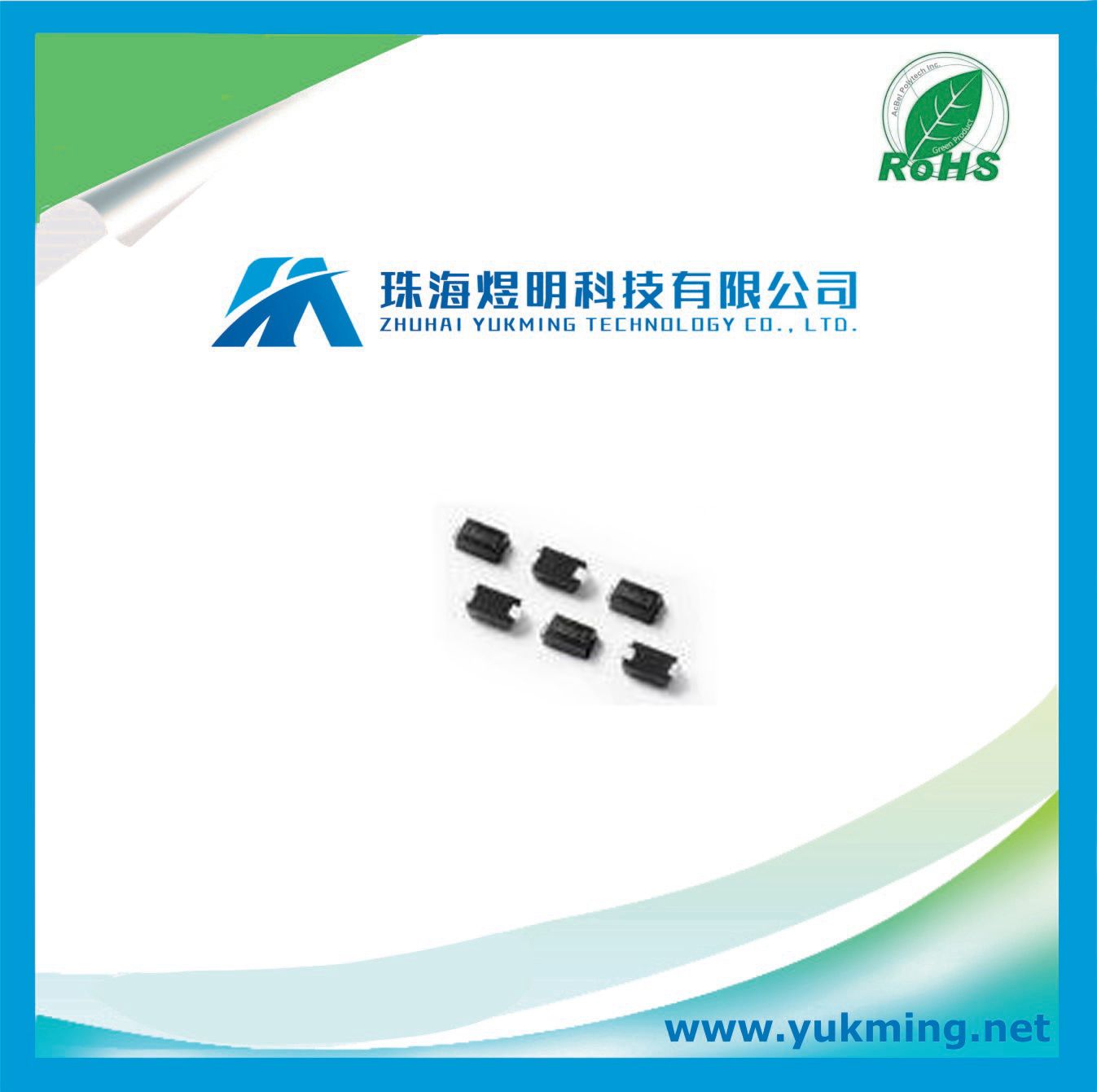

Electronic Component of Diode Tvs Single Uni-Dir 12V 200W

Prod Model:	SMF12A

Product Description

MANUFACTURER
Littelfuse

PRODUCT CATEGORY
TVS

DESCRIPTION
Diode TVS Single Uni-Dir 12V 200W 2-Pin SOD-123F T/R

Save yourself hassle by equipping your device with Littelfuse's SMF12A TVS diode which will react to sudden or momentary overvoltage conditions. Its maximum leakage current is 2.5 μA. Its peak pulse power dissipation is 200 W. This device's maximum clamping voltage is 19.9 V and minimum breakdown voltage is 13.3 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 12
Maximum Reverse Leakage Current (uA) 2.5
Maximum Clamping Voltage (V) 19.9
Maximum Peak Pulse Current (A) 10.1
Minimum Breakdown Voltage (V) 13.3
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 200
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -65 to 150
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Yes
Mounting Surface Mount
Package Height (mm) 1(Max)
Package Length (mm) 2.9(Max)
Package Width (mm) 2(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-123F
Pin Count 2
Lead Shape Flat
