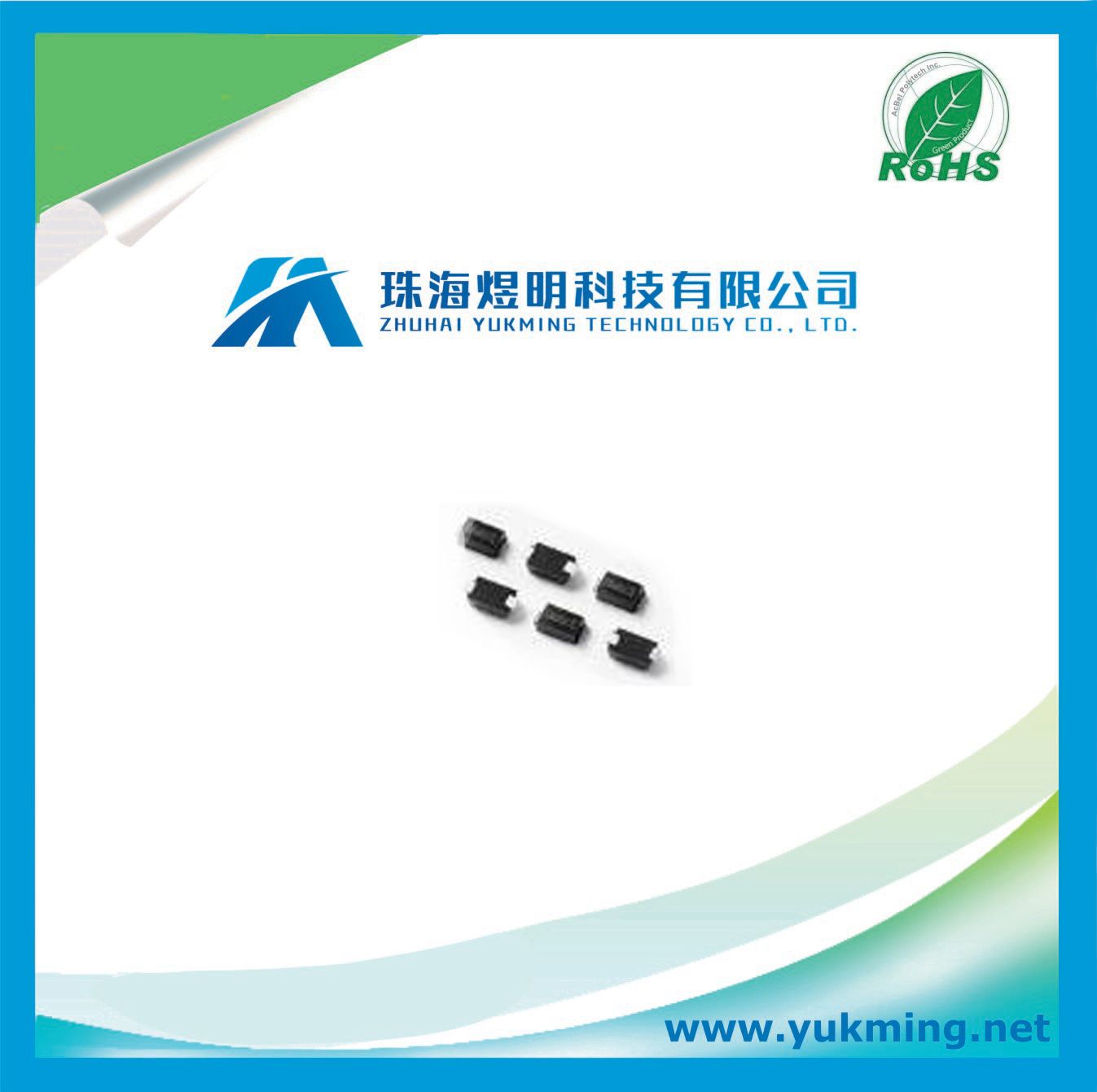

Electronic Component of Diode Tvs Single Uni-Dir 5V 200W

Prod Model:	SMF5.0A

Product Description

PRODUCT CATEGORY
TVS

DESCRIPTION
Diode TVS Single Uni-Dir 5V 200W 2-Pin SOD-123F T/R

Prevent your circuits from experiencing malfunctions from electrostatic discharge with this SMF5.0A TVS diode from Littelfuse. Its maximum leakage current is 400 μA. This device's maximum clamping voltage is 9.2 V and minimum breakdown voltage is 6.4 V. Its peak pulse power dissipation is 200 W. Its test current is 10 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 5
Maximum Reverse Leakage Current (uA) 400
Maximum Clamping Voltage (V) 9.2
Maximum Peak Pulse Current (A) 21.7
Minimum Breakdown Voltage (V) 6.4
Test Current (mA) 10
Peak Pulse Power Dissipation (W) 200
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -65 to 150
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Yes
Mounting Surface Mount
Package Height (mm) 1(Max)
Package Length (mm) 2.9(Max)
Package Width (mm) 2(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-123F
Pin Count 2
Lead Shape Flat
