Electronic Component of Small Signal Schottky Diodes for PCB Assembly

Name: Electronic Component of Small Signal Schottky Diodes for PCB Assembly
Brand: all-electronics-online.com
SKU: 804560315
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 0.0133/Piece
Min Order:	3000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BAT54K
Peak Reverse Repetitive Voltage (V):	40
Maximum Continuous Forward Current (a):	0.3
Peak Non-Repetitive Surge Current (a):	1
Peak Forward Voltage (V):	[email protected]
Peak Reverse Current (Ua):	1@30V
Peak Reverse Recovery Time (Ns):	5
Operating Junction Temperature (Deg C):	-40 to 150

Product Description

Small signal Schottky diodes

Features and benefits
Low conduction and reverse losses
Negligible switching losses
Low forward and reverse recovery times
Extremely fast switching
Surface mount device
Low capacitance diode

Description
The BAT54 series uses 40 V Schottky barrier
diodes packaged in SOD- 23, SOD-323,
SOD-523, SOT-23, SOT-323, or SOT-666.

Specifications
EU RoHS Compliant
Type Small Signal Schottky Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 40
Maximum Continuous Forward Current (A) 0.3
Peak Non-Repetitive Surge Current (A) 1
Peak Forward Voltage (V) [email protected]
Peak Reverse Current (uA) 1@30V
Peak Reverse Recovery Time (ns) 5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) -40 to 150
Mounting Surface Mount
Package Height (mm) 0.6
Package Length (mm) 1.2
Package Width (mm) 0.8
PCB changed 2
Standard Package Name SOD

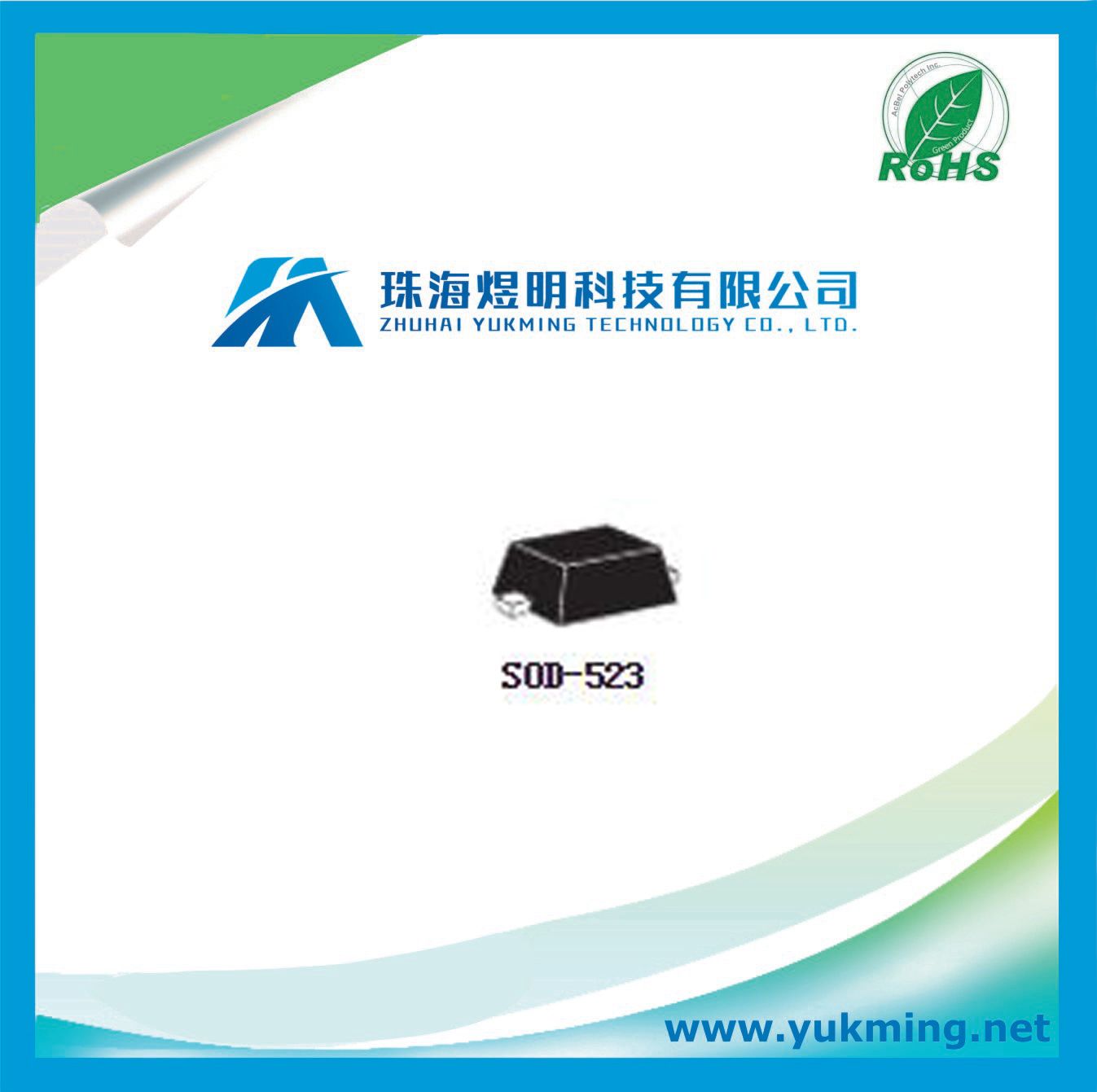

Supplier Package SOD-523
Pin Count 2
Lead Shape Flat
