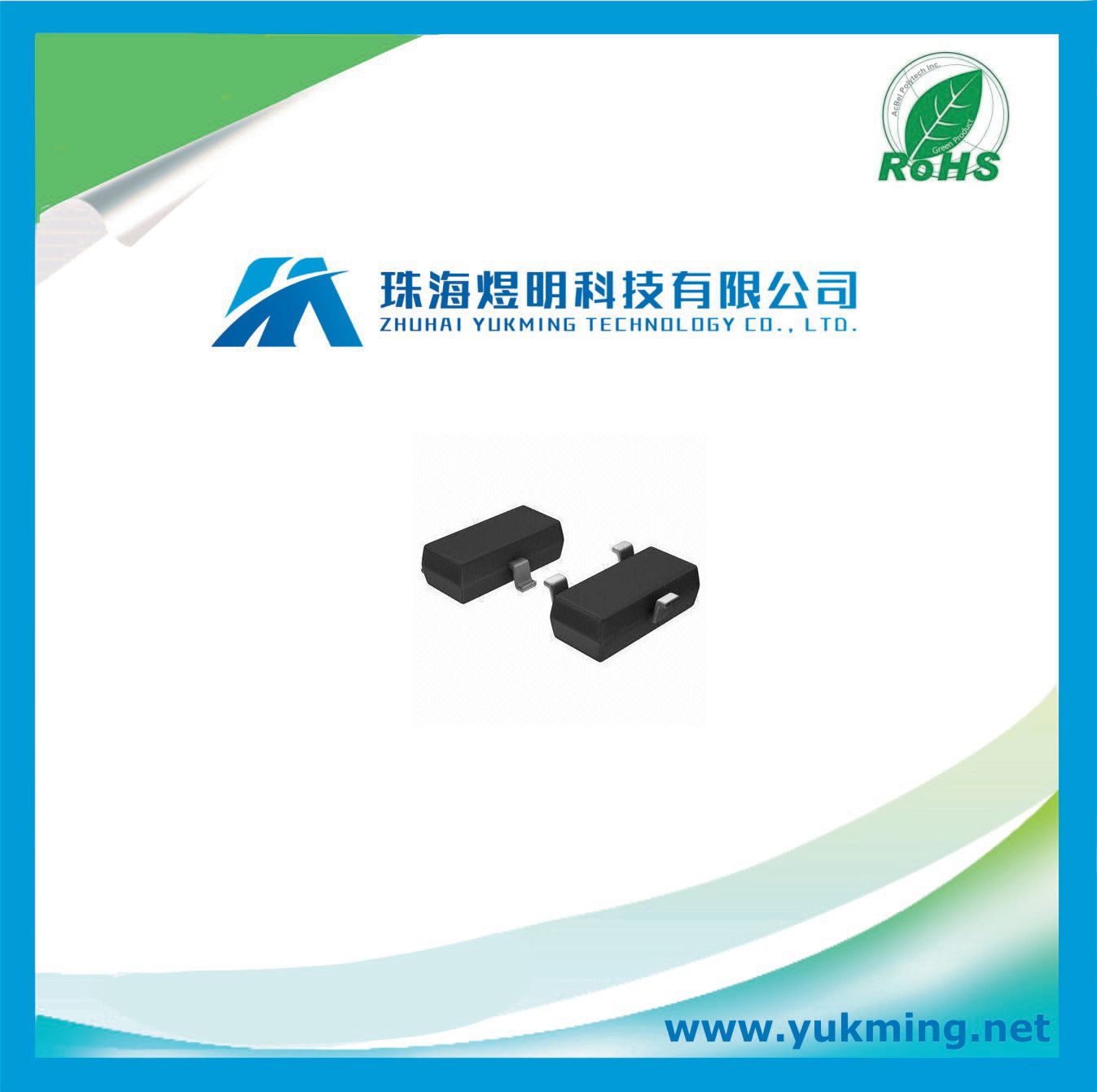

Electronic Component Schottky Diode Bat54s Rectifier Diode

Prod Model:	BAT54S
Type:	Schottky Diode
Configuration:	Dual Series
Peak Reverse Repetitive Voltage (V):	30
Maximum Continuous Forward Current (a):	0.2
Peak Non-Repetitive Surge Current (a):	0.6
Peak Forward Voltage (V):	[email protected]

Product Description

If your circuit needs to adjust from an AC to DC voltage use a Schottky diode BAT54S rectifier from Fairchild Semiconductor. Its maximum power dissipation is 290 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a dual series configuration. This rectifier has an operating temperature range of -55 °C to 150 °C. Its peak non-repetitive surge current is 0.6 A, while its maximum continuous forward current is 0.2 A.

Specifications
EU RoHS Compliant
Type Schottky Diode
Configuration Dual Series
Peak Reverse Repetitive Voltage (V) 30
Maximum Continuous Forward Current (A) 0.2
Peak Non-Repetitive Surge Current (A) 0.6
Peak Forward Voltage (V) [email protected]
Peak Reverse Current (uA) 2@25V
Peak Reverse Recovery Time (ns) 5
Maximum Power Dissipation (mW) 290
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) -55 to 150
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
