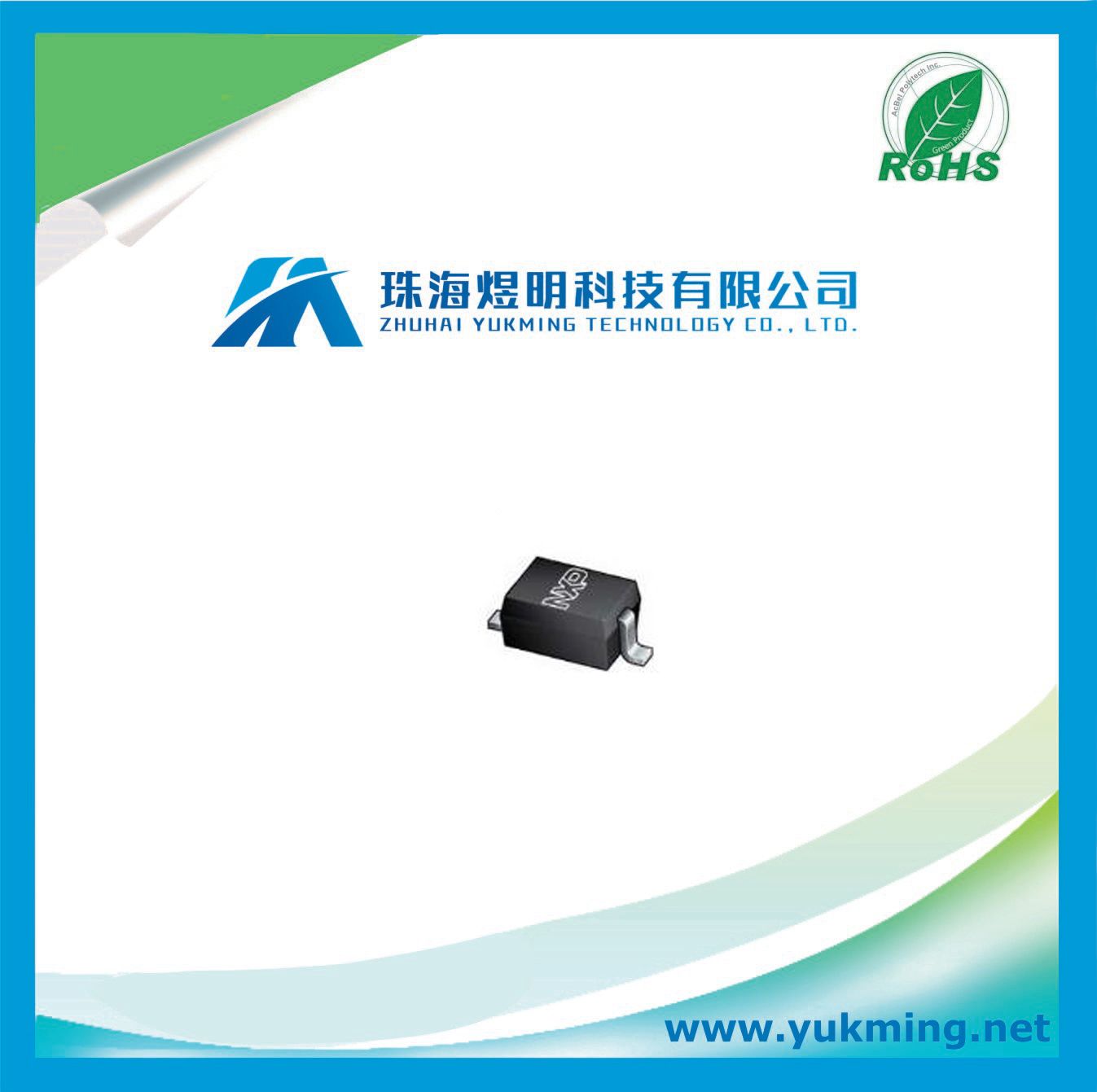

Electronic Component Schottky Diode for PCB Assembly

Prod Model:	1PS76SB70
Type:	Schottky Diode
Peak Reverse Repetitive Voltage (V):	70
Maximum Continuous Forward Current (a):	0.07
Peak Non-Repetitive Surge Current (a):	0.1
Peak Forward Voltage (V):	[email protected]
Peak Reverse Current (Ua):	10
Operating Junction Temperature (°c):	-65 to 150 Degree C

Product Description

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Rectifiers

DESCRIPTION
Diode Schottky 70V 0.07A Automotive 2-Pin SOD-323 T/R

Converting from AC to DC is simple when using a Schottky diode 1PS76SB70 rectifier from NXP Semiconductors. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 0.1 A, while its maximum continuous forward current is 0.07 A. It is made in a single configuration.

Specifications

EU RoHS Compliant
Type Schottky Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 70
Maximum Continuous Forward Current (A) 0.07
Peak Non-Repetitive Surge Current (A) 0.1
Peak Forward Voltage (V) [email protected]
Peak Reverse Current (uA) 10
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) 150
Maximum Diode Capacitance (pF) 2
Mounting Surface Mount
Package Height (mm) 1.05(Max)
Package Length (mm) 1.8(Max)
Package Width (mm) 1.35(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-323
Pin Count 2
Lead Shape Gull-wing
