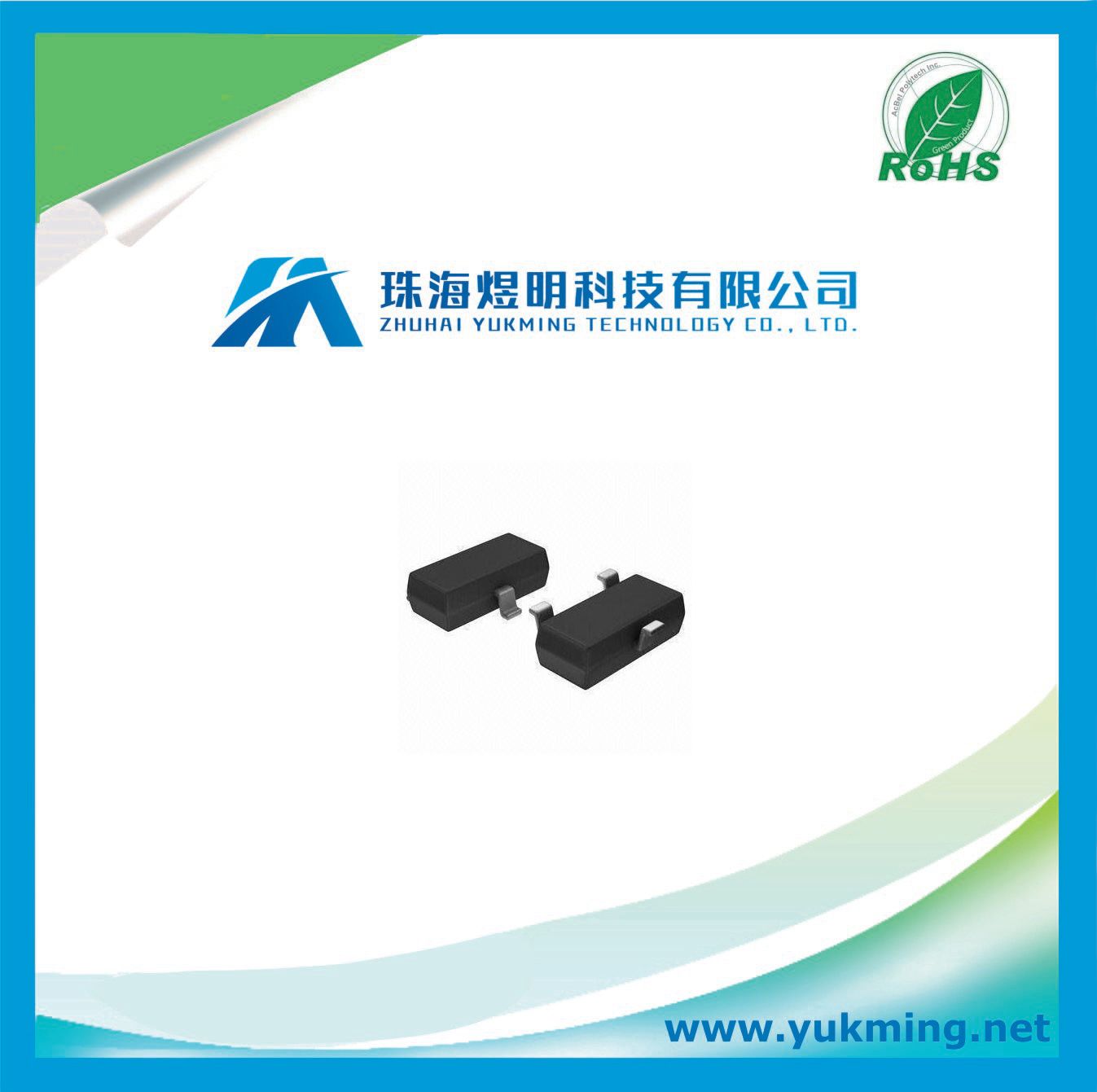

Electronic Component Small Signal Switching Diode Bav99 Rectifier Diode

Prod Model:	BAV99
Peak Reverse Repetitive Voltage (V):	70
Maximum Continuous Forward Current (a):	0.2
Peak Non-Repetitive Surge Current (a):	2
Peak Forward Voltage (V):	[email protected]
Peak Reverse Current (Ua):	2.5
Peak Reverse Recovery Time (Ns):	6
Maximum Power Dissipation (MW):	350
Operating Temperature Range:	-55~150 Degree C
Application:	Electronic Products
Encapsulation Structure:	Sot23

Product Description

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Rectifiers

DESCRIPTION
Diode Small Signal Switching 70V 0.2A 3-Pin SOT-23 T/R

Converting from AC to DC is simple when using a small signal switching diode BAV99 rectifier from Fairchild Semiconductor. Its maximum power dissipation is 350 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a dual series configuration. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.2 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C.

Specifications
EU RoHS Compliant
Type Small Signal Switching Diode
Configuration Dual Series
Peak Reverse Repetitive Voltage (V) 70
Maximum Continuous Forward Current (A) 0.2
Peak Non-Repetitive Surge Current (A) 2
Peak Forward Voltage (V) [email protected]
Peak Reverse Current (uA) 2.5
Peak Reverse Recovery Time (ns) 6
Maximum Power Dissipation (mW) 350
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) 150
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
