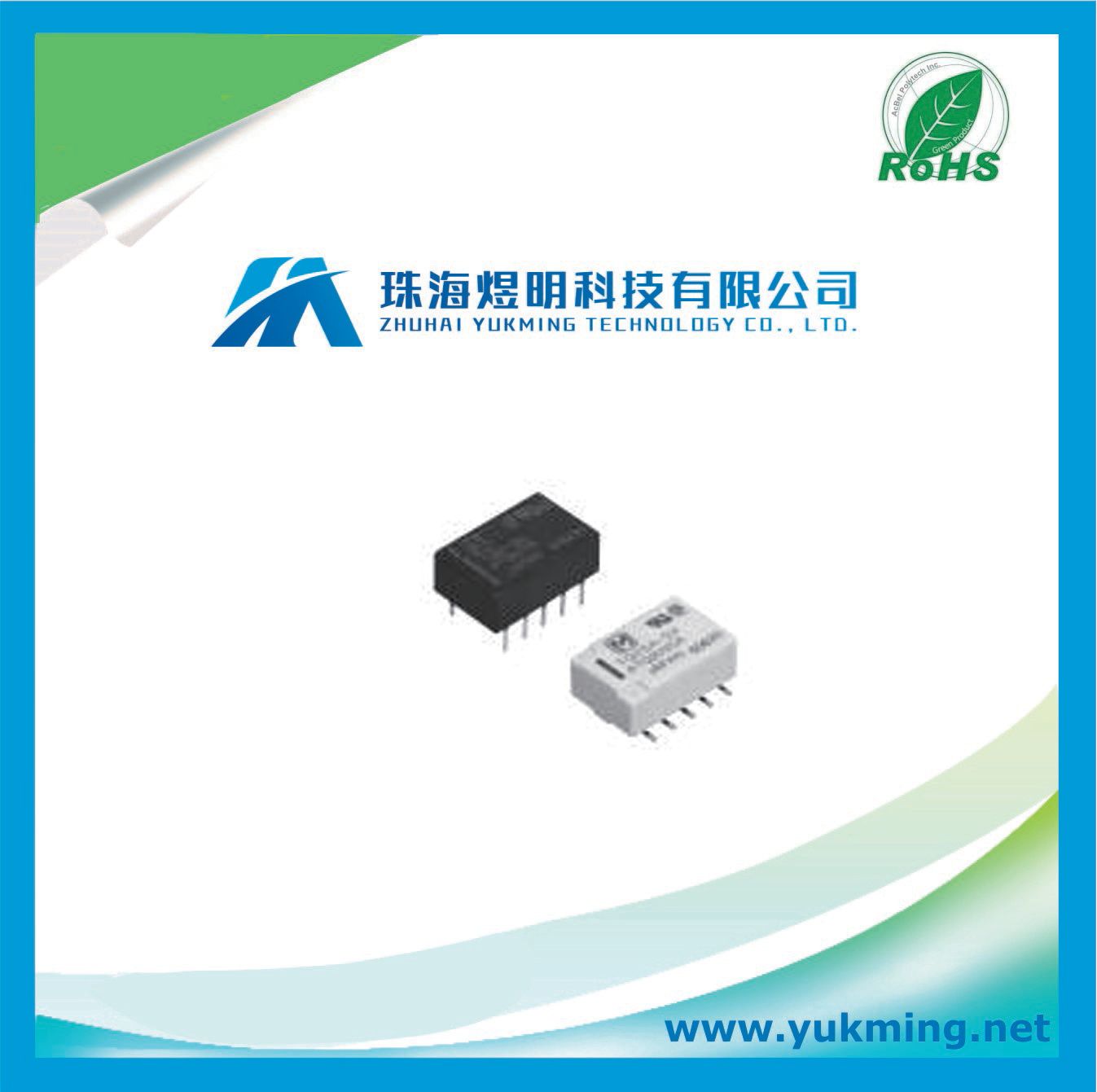

Electronic Component Surface Mount Signal Relay Tq2-24V

Prod Model:	TQ2-24V
DC Coil Voltage (V):	24
Coil Current (Ma):	8.3
Coil Resistance (Ohm):	2.88k
Maximum Pick-up Voltage:	18VDC
Minimum Dropout Voltage:	2.4VDC
Maximum AC Switching Voltage (V):	125
Maximum DC Switching Voltage (V):	110
Maximum Switching Current (a):	1
Number Of Terminals:	10
Operate Time (Ms):	3

Product Description

                                    Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

2-pole 5 mm Surface Mount Relay, JIS C0806 compliant Measurement equipment

Specifications
EU RoHSCompliant
Contact Arrangement DPDT
Contact Form2 Form C
DC Coil Voltage (V)24
Coil Current (mA)8.3
Coil Resistance (Ohm)2.88K
Maximum Pick-Up Voltage18VDC
Minimum Dropout Voltage2.4VDC
Maximum AC Switching Voltage (V)125
Maximum DC Switching Voltage (V)110
Maximum Switching Current (A)1
Maximum Switching Power30W|62.5VA
MountingThrough Hole
Termination Style PC Pin
Number of Terminals10
Relay Construction Non-Latching
Operate Time (ms)3
Package Type DIP
Release Time (ms)3
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)70
Maximum Contact Resistance (mOhm)50
Insulation Resistance (MOhm)1000
Electrical Life (Operations)100000
Mechanical life (Operations)100000000
Product Length (mm)14
Product Depth (mm)9
Product Height (mm)5
Product Weight (g)1.5
Contact MaterialSilver/Gold Clad
SealSealed
IP RatingIP67

FEATURES
1. Flat compact size
14.0(L) × 9.0(W) × 5.0(H) .551(L) ×
.354(W) × .197(H)
2. Nominal operating power:
High sensitivity of 140mW (2 Form
C single side stable type)
By using the highly efficient polar
magnetic circuit "seesaw balance
mechanism", a nominal operating
power of 140 mW (minimum operating
power of 79 mW) has been achieved.
RoHS compliant
3. Suitable for SMD automatic
insertion (SA type)
With a height of 5.6 mm .220 inch, the
relays meet JIS C 0806 specifications.
4. High density mounting possible
High-efficiency magnetic circuits
ensure low magnetic flux leakage.
Because characteristics are little
changed by proximity mounting, highdensity mounting is possible.
5. The use of gold-clad twin crossbar
contacts ensures high contact
reliability.
6. DIL terminal array enables use of IC
sockets
7. Low thermal electromotive force
As well as low power consumption of
140 mW, use of a structure with
separate coil and contact sections has
reduced thermal electromotive force to
the low level of approximately 5 µV.
Surface mount types achieve
approximately 2 µV.
8. Latching types also available
9. Self-clinching terminal also
available
10. A range of surface-mount types is
also available.
SA: Low-profile surface-mount
terminal type
SL: High connection reliability surfacemount terminal type
SS: Space saving surface-mount
terminal type
M.B.B. contact types available

TYPICAL APPLICATIONS
1. Communications
2. Measurement equipment
3. OA equipment
4. Industrial machines
