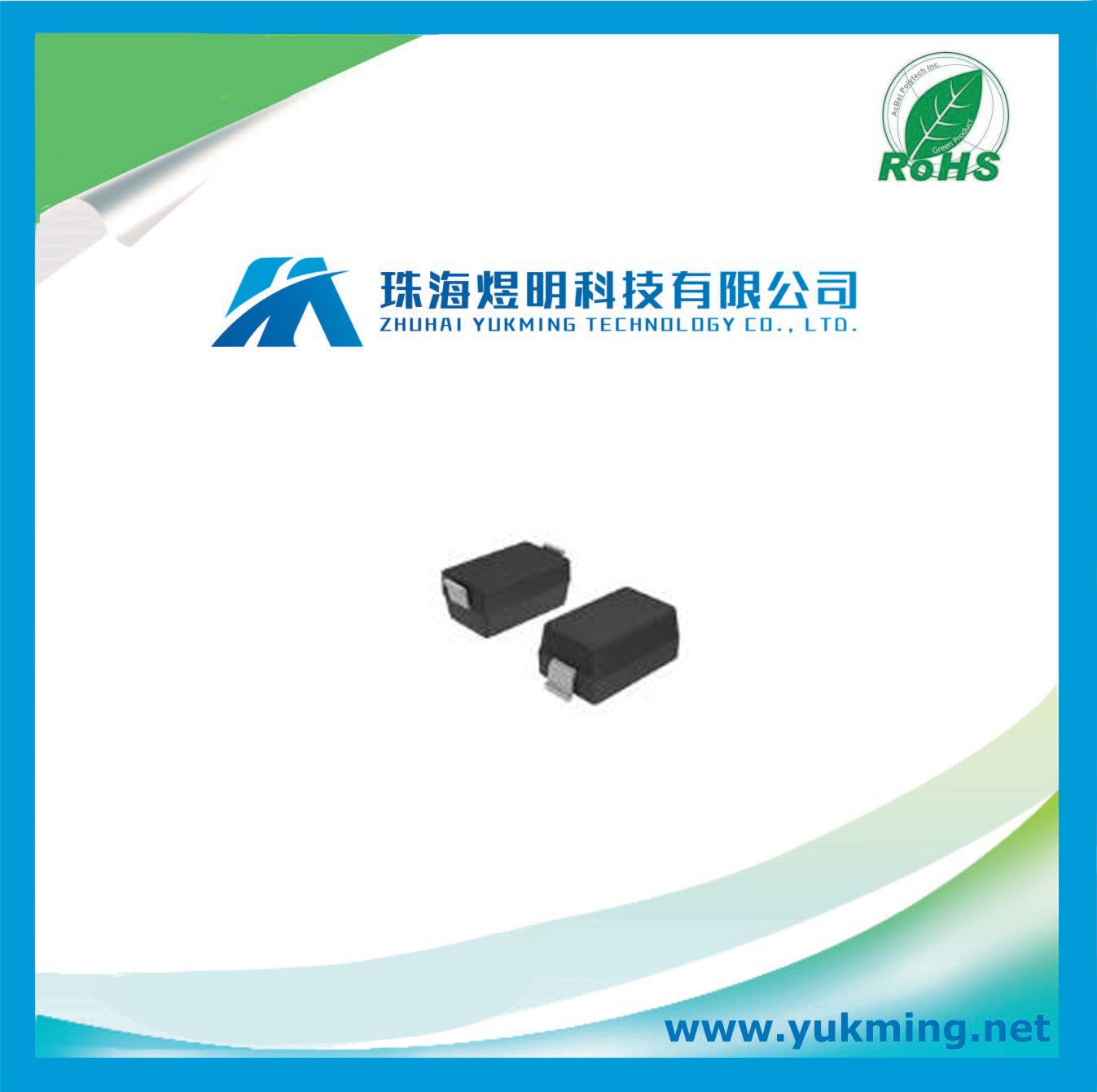

Electronic Component Switching Diode Rectifier for PCB Assembly

Prod Model:	BAV3004W-7-F
Peak Reverse Repetitive Voltage (V):	350
Maximum Continuous Forward Current (a):	0.225
Peak Non-Repetitive Surge Current (a):	4
Peak Forward Voltage (V):	[email protected]
Peak Reverse Current (Ua):	0.1@240V
Operating Junction Temperature (°c):	-65 to 150 Degree C
Application:	Electronic Products
Encapsulation Structure:	SOD123

Product Description

MANUFACTURER
Diodes Incorporated

PRODUCT CATEGORY
Rectifiers

DESCRIPTION
Diode Switching 350V 0.225A Automotive 2-Pin SOD-123 T/R

Converting from AC to DC is simple when using a switching diode BAV3004W-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 400 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 4 A, while its maximum continuous forward current is 0.225 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.

Specifications
EU RoHS Compliant
Type Switching Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 350
Maximum Continuous Forward Current (A) 0.225
Peak Non-Repetitive Surge Current (A) 4
Peak Forward Voltage (V) [email protected]
Peak Reverse Current (uA) 0.1@240V
Peak Reverse Recovery Time (ns) 50
Maximum Power Dissipation (mW) 400
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) -65 to 150
Mounting Surface Mount
Package Height (mm) 1.35(Max)
Package Length (mm) 2.85(Max)
Package Width (mm) 1.7(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-123
Pin Count 2
Lead Shape Gull-wing

Features
·Surface Mount Package Ideally Suited for Automatic Insertion
·Low Leakage Current
·Fast Switching Speed
·High Reverse Breakdown Voltage
·Lead Free/RoHS Compliant (Note 1)
·Qualified to AEC-Q101 Standards for High Reliability

Mechanical data
Case: SOD-123
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free plating (Matte Tin Finish annealed over Alloy 42
leadframe)
Polarity: Cathode Band
Marking: Date Code and Type Code, See Page 2
Type Code: 4P
