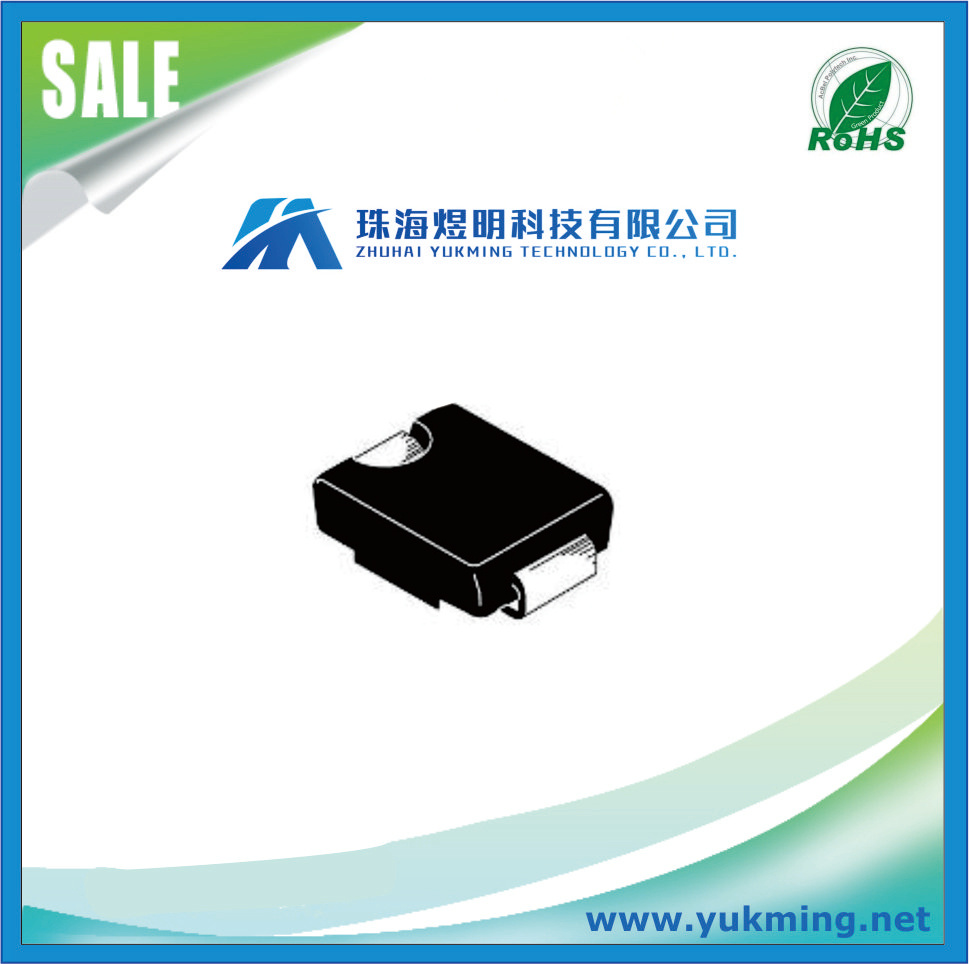

Electronic Component Ultrafast Power Rectifier Diode Murs360t3

Name: Electronic Component Ultrafast Power Rectifier Diode Murs360t3
Brand: all-electronics-online.com
SKU: 799333695
Availability: InStock
Rating: 4.4 (104 reviews)

Price:	US $ 0.095/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MURS360T3
Category:	Discrete Conductor Products
Family:	Single Diode/Rectifier
Packing Type:	CT
Max Reverse DC Voltage:	600V
Operating Temperature Range:	-65 to 175

Product Description

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
Rectifier

DESCRIPTION
Diode Switching 600V 4A Automotive 2-Pin SMC T/R

Surface Mount
Ultrafast Power Rectifiers
This series employs the state−of−the−art epitaxial construction with
oxide passivation and metal overlay contact. Ideally suited for high
voltage, high frequency rectification, or as free wheeling and
protection diodes, in surface mount applications where compact size
and weight are critical to the system.

Features
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Low Forward Voltage Drop
(0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C)
• Pb−Free Packages are Available

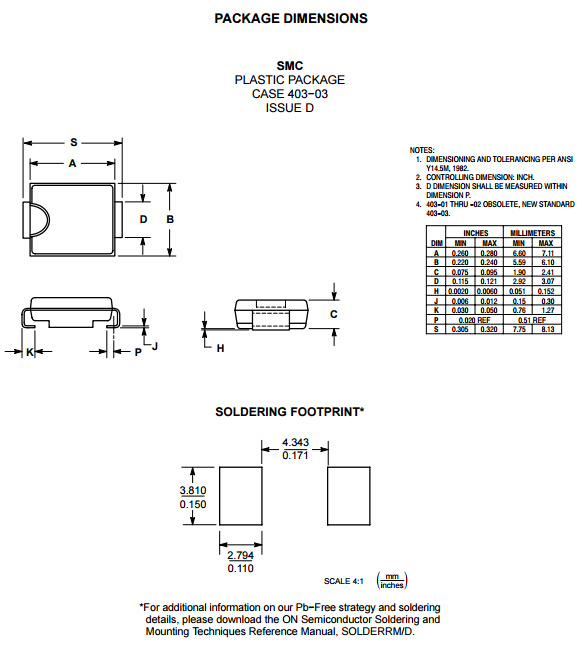

Mechanical Characteristics
• Case: Epoxy, Molded
• Epoxy Meets UL 94 V−0 @ 0.125 in
• Weight: 217 mg (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Shipped in 16 mm Tape and Reel, 2500 units per reel
• Polarity: Notch in Plastic Body Indicates Cathode Lead
• Device Meets MSL1 Requirements
• ESD Ratings: Machine Model, C (> 400 V)
Human Body Model, 3B (> 8000 V)

Applications
· Isolated Voltage Sensing in AC and Servo Motor Drives
· Isolated DC-Bus Voltage Sensing in Solar Inverters,
Wind Turbine Inverters
· Isolated Sensor Interfaces
· Signal Isolation in Data Acquisition Systems
· General Purpose Voltage Isolation
