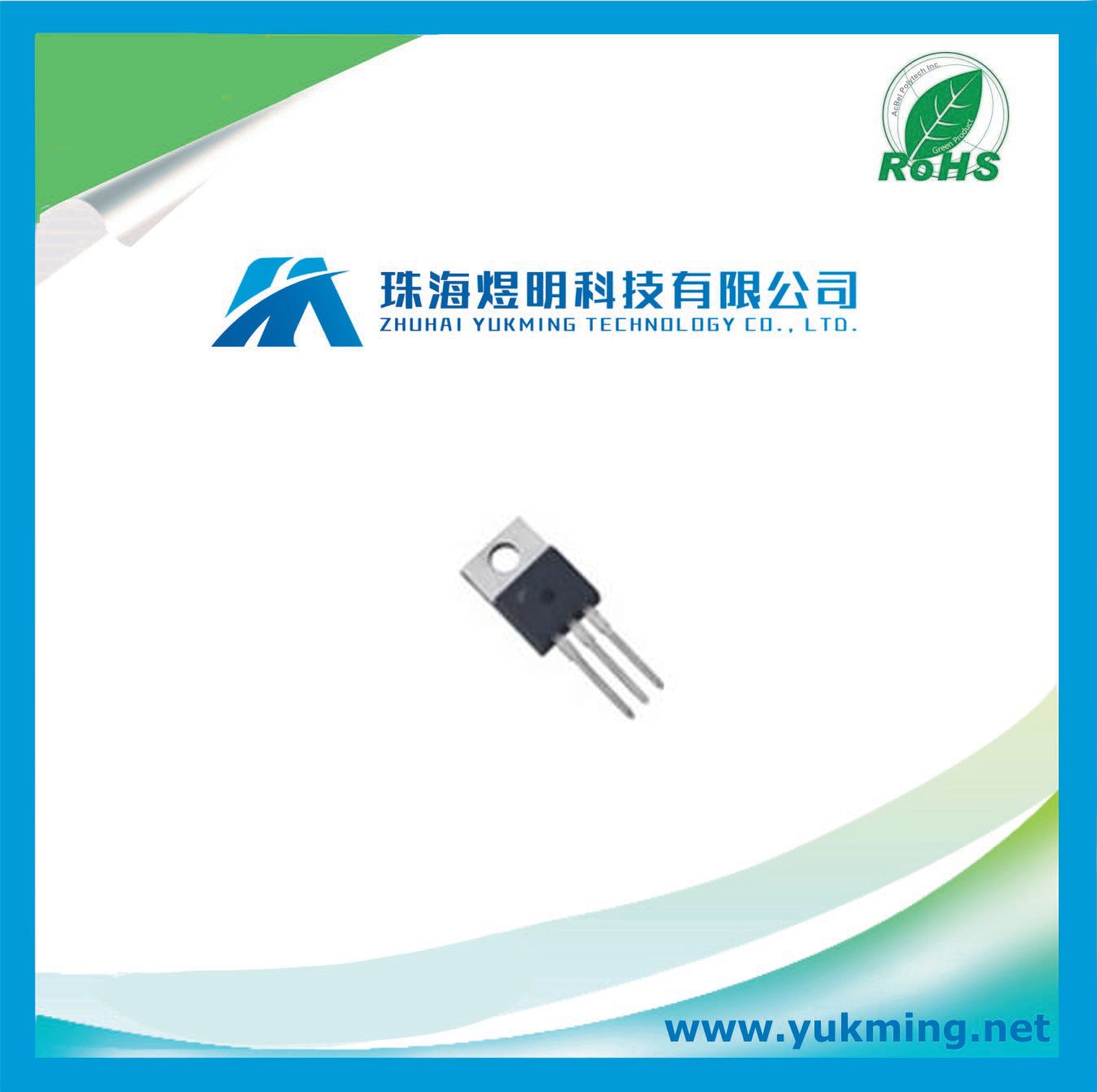

Electronic Component Versatile NPN Transistor

Prod Model:	TIP41CTU
Channel Type:	N
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	100
Maximum Emitter Base Voltage (V):	5
Maximum Collector Emitter Voltage (V):	100
Maximum DC Collector Current (a):	6
Operating Temperature Range:	-65 to 150 Degree C

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require




MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 100V 6A 3-Pin(3+Tab) TO-220AB Rail

Jump-start your electronic circuit design with this versatile NPN TIP41CTU GP BJT from Fairchild Semiconductor. This bipolar junction transistor's maximum emitter base voltage is 5 V. Its maximum power dissipation is 2000 mW. This product comes in rail packaging to keep individual parts separated and protected. It has a maximum collector emitter voltage of 100 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has a minimum operating temperature of -65 °C and a maximum of 150 °C

Specifications
Type NPN
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 100
Maximum Emitter Base Voltage (V) 5
Maximum Collector Emitter Voltage (V) 100
Maximum DC Collector Current (A) 6
Material Si
Maximum Power Dissipation (mW) 2000
Minimum DC Current Gain 30@300mA@4V|15@3A@4V
Maximum Transition Frequency (MHz) 3(Min)
Product Category Bipolar Power
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Rail
Maximum Collector Emitter Saturation Voltage (V) 1.5@600mA@6A
Mounting Through Hole
Package Height (mm) 9.4(Max)
Package Length (mm) 10.67(Max)
Package Width (mm) 4.83(Max)
PCB changed 3
Tab Tab
Standard Package Name TO-220
Supplier Package TO-220AB
Pin Count 3
Lead Shape Through Hole
