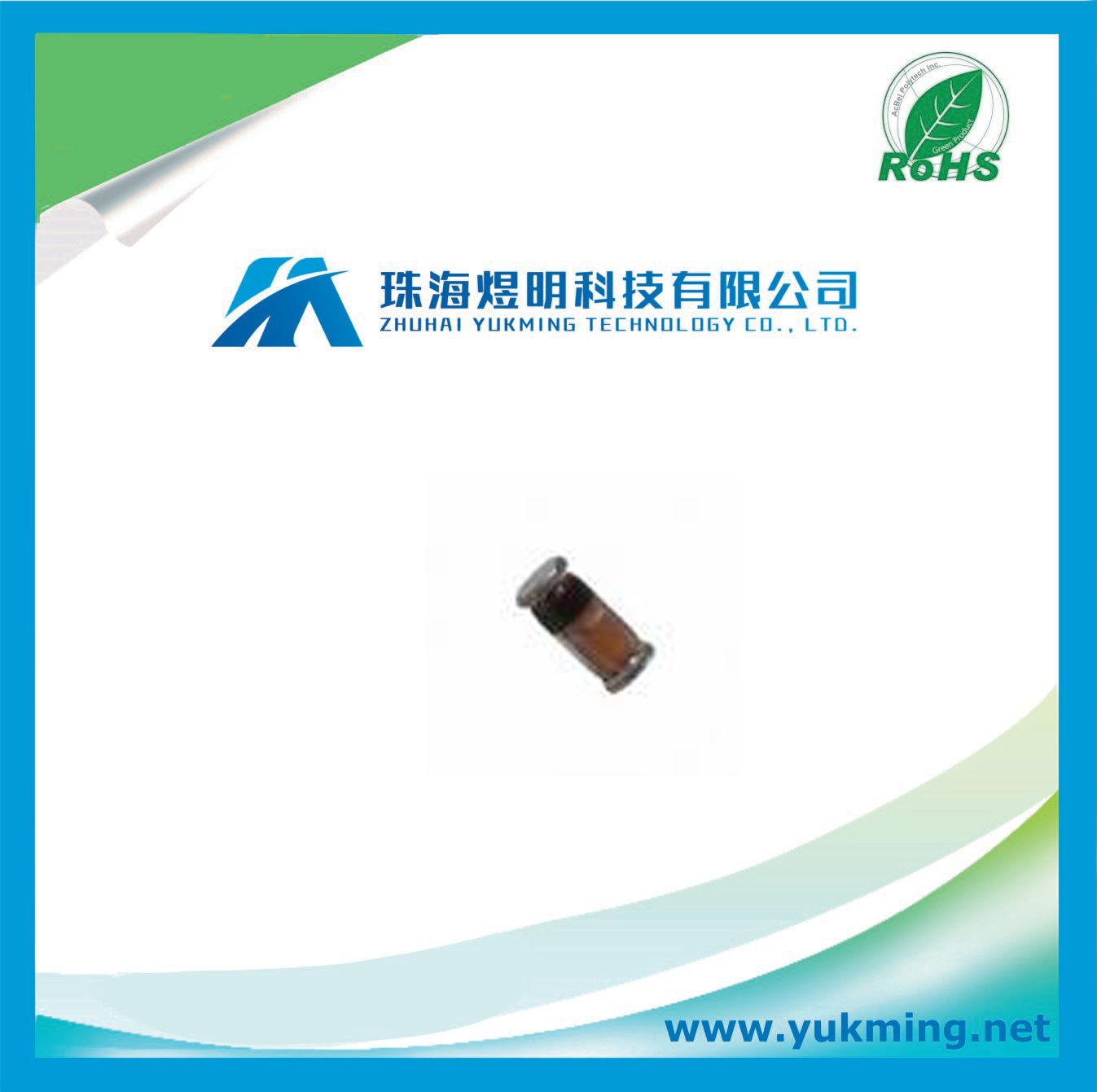

Electronic Component Voltage Regulator Zener Diode Bzv55-C16

Prod Model:	BZV55-C16
Nominal Zener Voltage (V):	16.2
Maximum Zener Impedance (Ohm):	40
Zener Voltage Tolerance:	5%
Maximum Reverse Leakage Current (Ua):	0.05
Maximum Power Dissipation (MW):	500
Operating Temperature Range:	-65 to 200 Degree C
Test Current (Ma):	5
Shape:	SOD80c
Application:	Voltage Regulator
Structure:	Single

Product Description

                             Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require



MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Zener

DESCRIPTION
Diode Zener Single 16.2V 5% 500mW 2-Pin Mini-MELF T/R

If you need a diode to operate in the reverse breakdown region then use a voltage regulator BZV55-C16,115 zener diode from NXP Semiconductors. Its maximum leakage current is 0.05 μA. Its maximum power dissipation is 500 mW. Its test current is 5 mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 16.2 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C.

Specifications
EU RoHS Compliant
Type Voltage Regulator
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 16.2
Maximum Zener Impedance (Ohm) 40
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 0.05
Maximum Power Dissipation (mW) 500
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Packaging Tape and Reel
Typical Voltage Temperature Coefficient 12.4mV/K
Package Diameter (mm) 1.6(Max)
Mounting Surface Mount
Package Length (mm) 3.7(Max)
PCB changed 2
Standard Package Name SOD-80
Supplier Package Mini-MELF
Pin Count 2
Lead Shape No Lead
