Electronic PCB Assembly Printed Circuit Board 2 Layer Green Soldermask
| Price: |
US $ 0.52/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1347R3.8 |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
Green |
| Board Thick: |
1.6mm |
| Legend Color: |
White |
| Copper Thick: |
1 Oz |
| SMD Assembly: |
Yes |
| RoHS Required: |
Yes |
| Test: |
100% Electrical Test |
| Thickness of Solder Mask: |
13 Um |
| Through Hole Assembly: |
Yes |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description

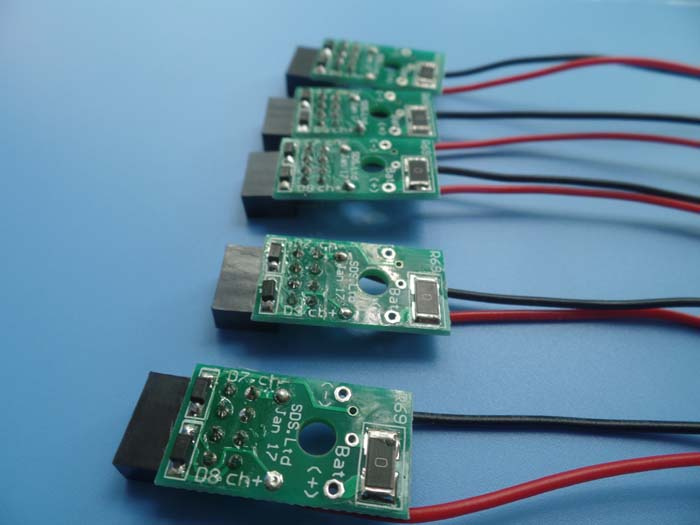

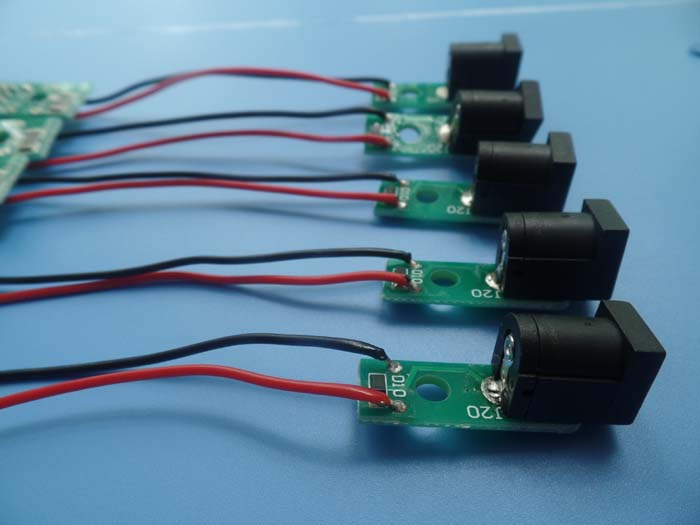

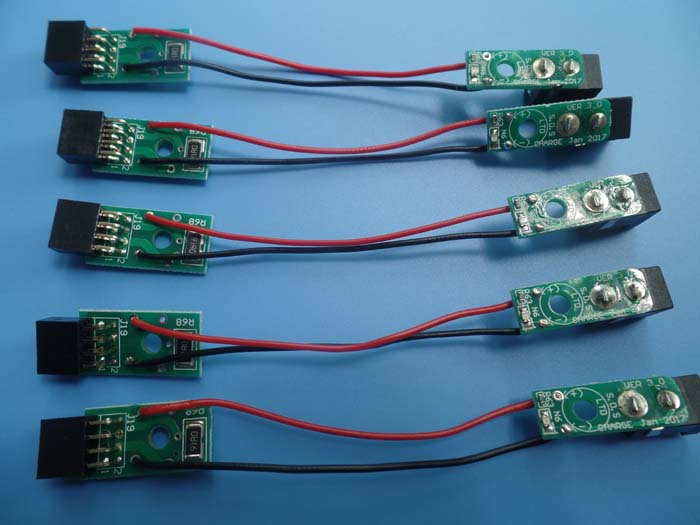

Electronic PCB Assembly printed Circuit board 2 Layer Green Soldermask
Commodity IntroductionThis is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.6mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Board dimension | 11x 23mm |
| Board Type | Double Sided PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Surface Cu thickness | 35 um (1oz) |
| |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Through hole assembly | YES |
| Sides of through hole assembly | 2 |
| SMD assembly | YES |
| Sides of SMD assembly | 2 |
| |
| Total quantity of components | 15 |
| Quantity of SMT | 8 |
| Quantity of Through holes | 7 |
| Applications | |
| RoHS Required | YES |
The components of multilayer PCB: Prepreg
A multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.
Prepreg plays a role of bonding material used for bonding the individual thin laminates of the
multilayer boards. It consists of glass cloth impregnated with epoxy resin. Unlike rigid laminates,
the epoxy resin is only semi-cured. Epoxy resin is referred to as B-stage when semi-cured.
The prepreg sheets are not sticky. During lamination of the board, the epoxy resin is first changed
to a liquid state and later in the press cycle to the fully cured state. During the press cycle, the
cured epoxy resin in the thin, rigid laminates softens, but it does not become liquid.
Thicknesses of Prepreg sheets| Glass Fabric Style | Pressed Thickness | Resin Content |
| | mm | mil | % |
| 7628H(7630) | 0.213 | 8.4 | 50 |
| 7628(43%) | 0.195 | 7.6 | 43 |
| 7628(41%) | 0.185 | 7.3 | 41 |
| 2116HR | 0.135 | 5.3 | 57 |
| 2116 | 0.12 | 4.7 | 52 |
| 2113 | 0.1 | 4 | 56 |
| 1080 | 0.076 | 3 | 64 |
| 1060 | 0.05 | 2 | 71 |
The pressed thickness varies from one manufacturer to another. As long as the PCB designer does
not know the brand(s) of the glass fabrics used by the multilayer board manufacturer, it is more or
less impossible to specify a detailed build-up. Therefore, this should be left to the manufacturer.
When a board is required impedance control, the thickness of the dielectric material between the
individual layers become important and thickness and tolerance are usually specified by designer.
The minimum thickness of the dielectric material (thin laminate or prepreg sheets) is 75 µm (3 mils)
and, in some cases, 100 µm (4 mils).
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
