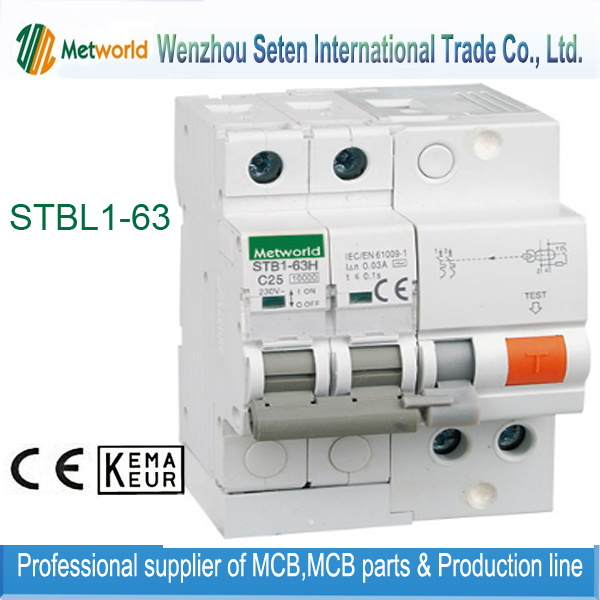

Electronic Type RCCB / Residual Current Circuit Breaker RCCB

Prod Model:	10KA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	230V
Brand:	Metworld
Standards:	IEC
Color:	White
Category:	RCCB
Installations:	35mm DIN Rail
Terminal Capacity:	Cables up to 35mm^2
Protection Degree:	20
Type Of Trip:	Electro-Magnetic Release
Rated Voltages:	230.400V,AC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	CE
Poles Number:	All

Product Description

Standard                                                                     EN/IEC61009-1
Protection                                                                   Ground fault and overcurrent
Rated current,In                                                         6,10,16,20,25,32,40,50,63A
Rated sensitivity currents,In                                    30,100,300mA
Rated residual current operated making &         500A
breaking capacity Im
Rated residual non-operated current Ino              0.5In
Rated impulse withstand voltage Uimp                4000V
Number of pole                                                           1P+N,2P,3P,3P+N,4P
Rated voltage                                                               230VAC/400
Residual current off-time                                           <=0.1sec
Type of trip       Ground fault                                        Electro-magnetic
                           Overcurrent                                         Thermal-magnetic
Breaking capacity                                                          6KA
Electrical endurance                                                    2000 operations
Degree of protection                                                     IP20
Mount                                                                               On 35mm Din-rail

No. of pole	Rated current	UN	Rated sensitivity currents,In
1P+N,2P,3P,3P+N,4P	6,10,16,20,25,32,40,50,63A	230VAC/400V	30,100,300mA
