Electronics 4 Layer PCB Board 1.6mm Thick HASL Board
| Price: |
US $ 0.62/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-398-V3.98 |
| Surface Finish: |
HASL Lead Free |
| Function: |
100% Pass Electrical Test |
| Mininum Trace (Mil): |
0.524 Mil |
| Board Thickness: |
1.6mm |
| Solder Mask Colour: |
Green |
| Color Of Silkscreen: |
White |
| Surface Thickness: |
48.6 Um (1.39 Oz) |
| RoHS Required: |
Yes |
| Thermal Shock Test: |
No Blistering |
| Workmanship: |
Ipc-6012c Class 2 |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

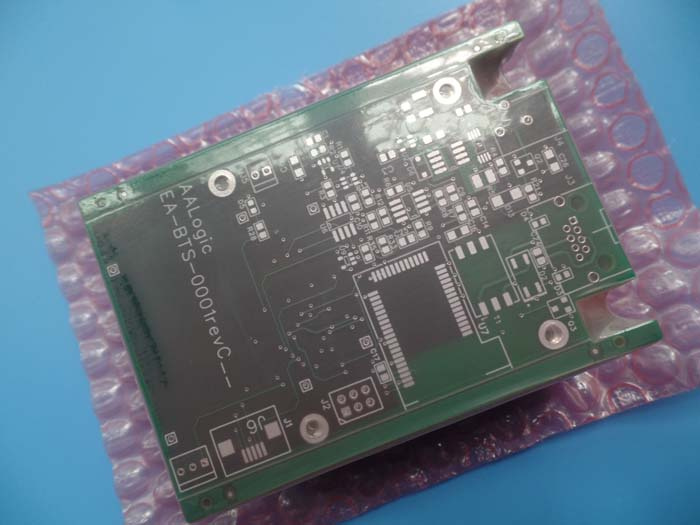

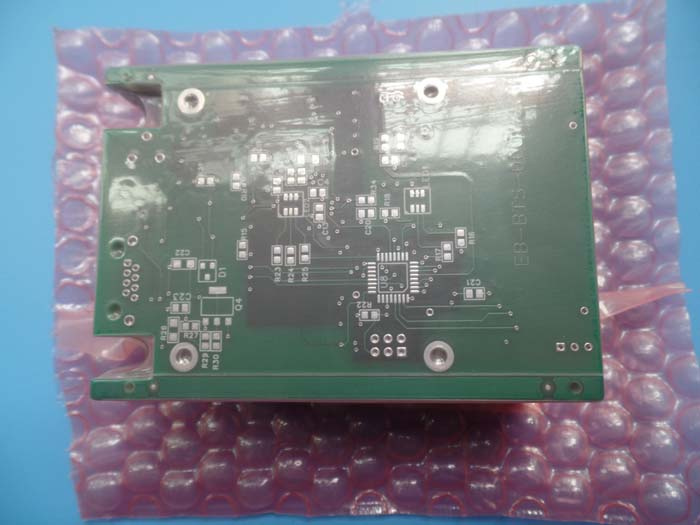

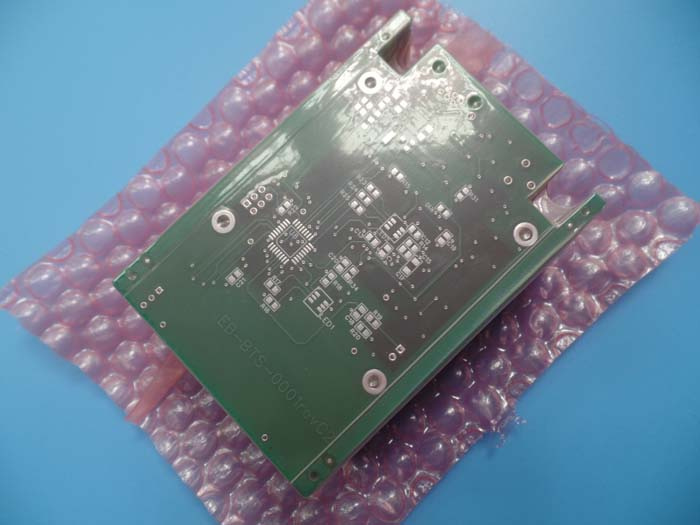

HASL Leed Free Multilayer PCB 4 Layer 1.6mm thick with Green Soldermask and white
silkscreen
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 1.6mm thick. The
base laminate is from ShengYi, Solder mask and silkscreen from Nanya and Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| Number of Layers | 4 |
| Board Type | Multilayer PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | Shengyi, S1141 |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | 25.8 um |
| Inner Iayer Cu thicknes | 35 um (1oz) |
| Surface Cu thickness | 48.6 um (1.39oz) |
| |
| Solder Mask Type and Model No. | LPSM, LP-4G/G-05 |
| Solder Mask Supplier | NANYA |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 17.1um |
| |
| Type of Silkscreen Ink | S-380W |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | 0.254mm |
| Minimum Gap(mil) | - |
| |
| Surface Finish | HASL Lead free, 3.22 um |
| RoHS Required | Yes |
| Warpage | 0.16% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
