Electronics Bicheng PCB 6 Layer Circuit Board Stackup
| Price: |
US $ 0.62/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1016R2.6 |
| Surface Finish: |
HASL Lead Free |
| Board Thickness: |
1.6mm |
| Minimum And Space: |
5.9 Mil/9.84 Mil |
| Minimum Maximum Holes: |
0.3/3.251mm |
| Solder Mask Color: |
Green |
| Colour Of Componen Legend: |
White |
| Copper Thickness: |
1 Oz |
| Via: |
Viatented |
| Test: |
100%Electrical Test |
| Board Plating: |
0.0029" |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
6 Layer PCB Prototypes MultiLayer PCB HASL With Edge Gold Finger (30 Microinch)
Applied In IR Control
Commodity Introduction

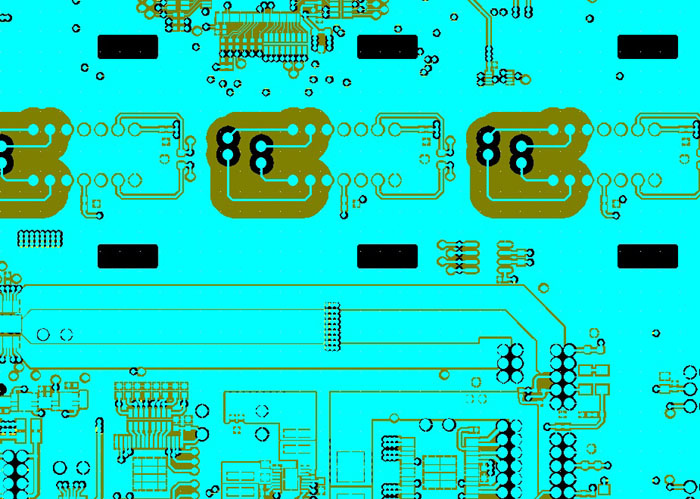

This is a type of FR-4 PCB for the application of IR Control . It's a 6 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC

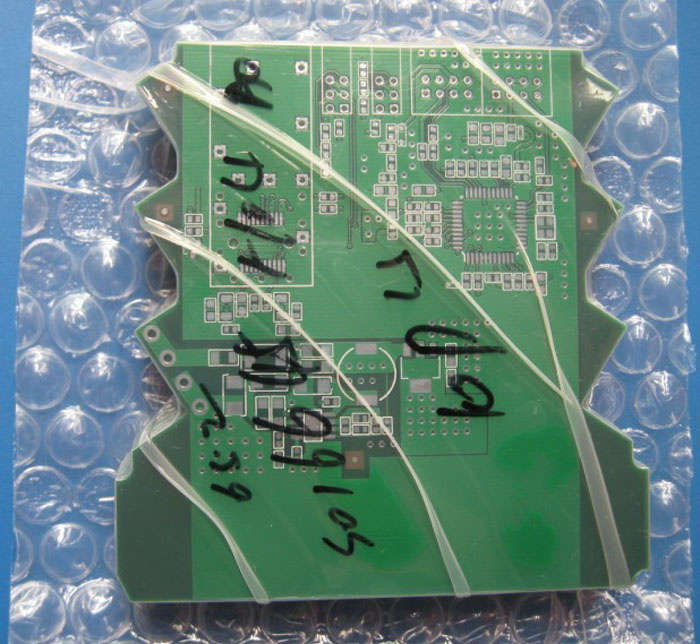

6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 95.2 x 99.5mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 6 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.4mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 3 |
| FR-4 0.4mm |
| copper ------- 35um(1oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.9mil/9.84mil |
| Minimum / Maximum Holes: | 0.3/3.251mm |
| Number of Different Holes: | 14 |
| Number of Drill Holes: | 11814 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | No |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135, CTI 175V-249V, Shengyi Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | HASL Lead Free+ 30 µ" edge connector |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, TAI YO, PSR-2000 KX700G |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | IR control, Wireless Hdmi
Surveillance Systems
Hdmi Adapter
Router Wifi
Car Gps |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
