Electronics Enig PCB 6 Layer Fr4 Circuit Board 1.17 Oz

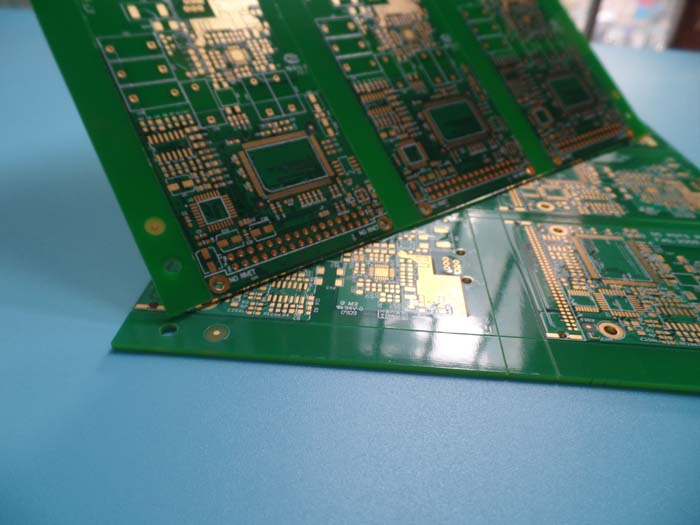

Name: Electronics Enig PCB 6 Layer Fr4 Circuit Board 1.17 Oz
Brand: all-electronics-online.com
SKU: 823839455
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	US $ 0.79/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-270-V2.70
Board Thickness:	1.48-1.55mm
Outer Copper Foil:	41.05 Um
Surface Treament:	Enig
Solder Mask:	Green, Kuang Shun
Legend:	White, Ijr-4000 MW300
Min Line Width (Mil):	8.1 Mil
Min Line Spacing (Mil):	5.7 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Inner layer half oz Outer layer 1.17 oz 6 Layer PCB made of FR-4 Tg170 from ITEQ in Gps
Tracking Device

Commodity Introduction

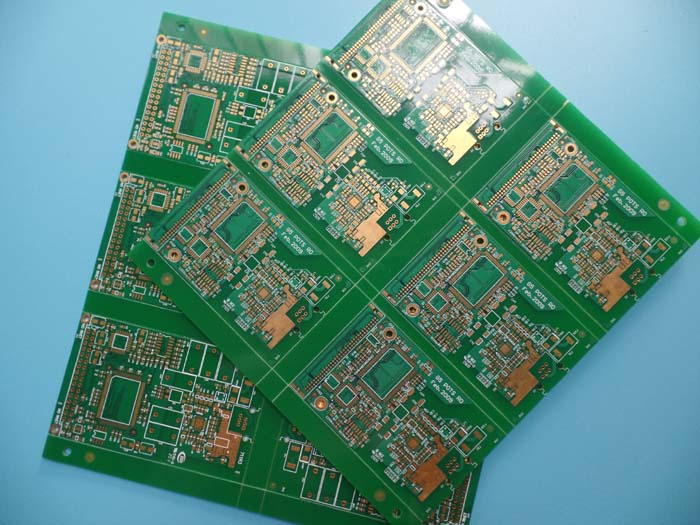

This is a type of FR-4 PCB for the application of Gps Tracking Device. It's a 6 Layer board at 1.48-
1.55mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.60±10%mm	1.48-1.55mm
	Outer copper foil	>=35 um	41.05 um
	Inner copper foil	H/H OZ	H/H OZ
	Warp-twist	<= 1%	0.10%(max)
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS	CS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		7.9	8.1
Min line spacing (mil)		5.9	5.7
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Green	Green
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	ENIG		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	/	/
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	173.00±0.15	173.06	173.05	173.10	173.03
2	197.99±0.15	197.96	198.07	197.95	197.91

Learn PCB and Buy PCB----ENIG

ENIG stands for Electroless nickel immersion gold which is a type of surface plating used for
circuit boards. It consists of an electroless nickel plating covered with a thin layer of immersion
gold. Normally, the thickness of nickel is 120 µ" - 200 µ" (3 µm to 5 µm ) and gold 1-5µ" (0.025
µm - 0.127 µm).

ENIG has several advantages than HASL, including
a) Excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP
mounted components to reduce failure rate during assembly and soldering.
b) Good oxidation resistance and good heat dissipation.
c) Long storage time (It can be stored for more than 1 year in vacuum bag)
d) High solderability, no stressing of circuit boards and less contamination of PCB surface.
e) SMT process is resistant to reflow soldering, resistant to rework.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
